SWZT48-15FS - Scag 48" Walk-Behind Mower, 15hp Kawasaki (SN: L3500001 - L3599999) Engine Deck & Hydraulic System Parts Diagram

48" Walk-Behind Mower, 15hp Kawasaki

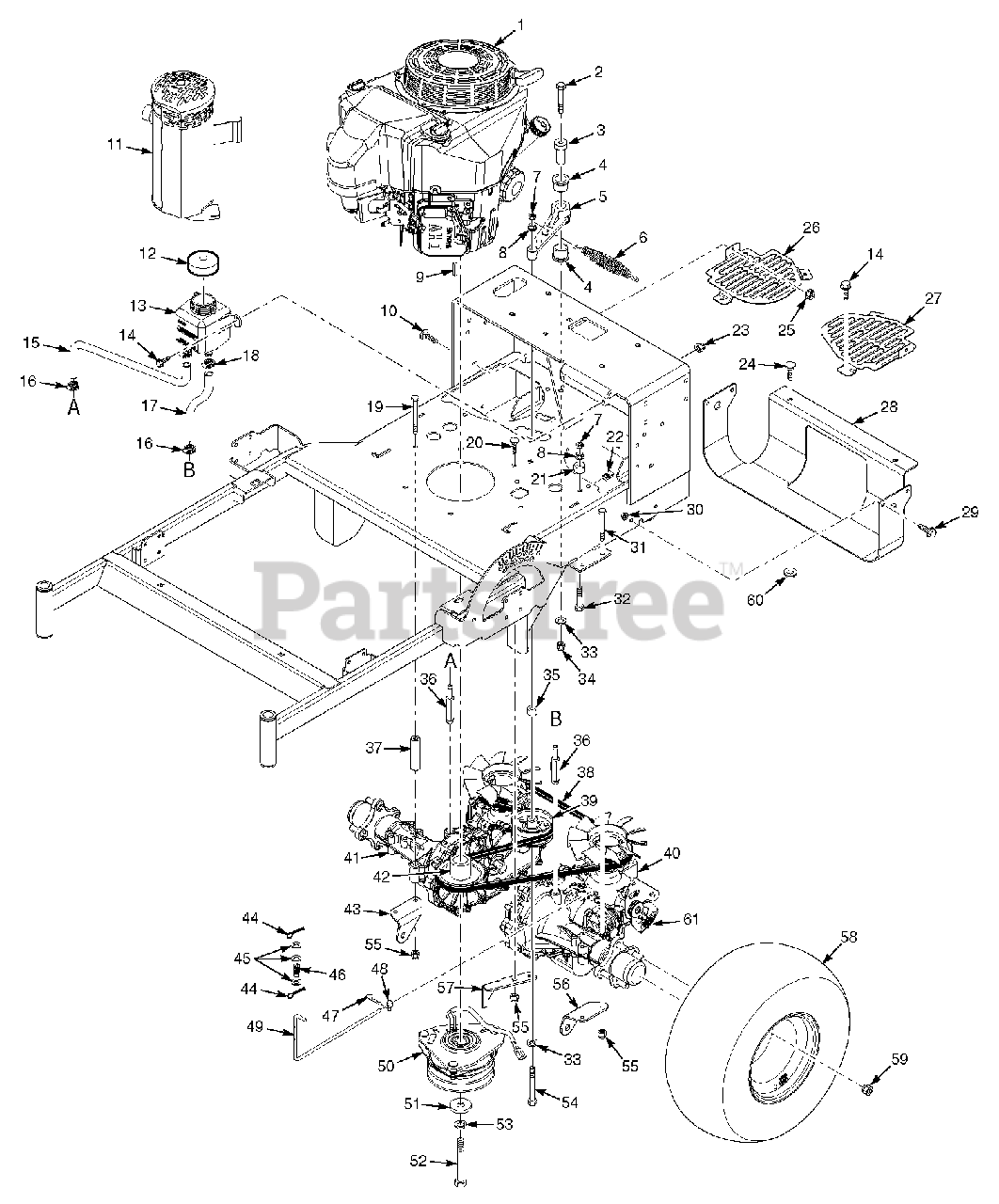

Engine Deck & Hydraulic System Parts Diagram

  • Title
1

Scag Part# 485014

Engine, Kawasaki FS481V

Note: Available through the individual engine manufacturer.

Usually ships same day

Currently unavailable

$

$

1

Scag Part# 485015

Engine, Kawasaki FS541V

Note: Available through the individual engine manufacturer.

Usually ships same day

Currently unavailable

$

$

1

Scag Part# 485016

Engine, Kawasaki FS600V (Recoil Start)

Note: Available through the individual engine manufacturer.

Usually ships same day

Currently unavailable

$

$

1

Scag Part# 485023

Engine, Kawasaki FS600V (Electric Start)

Note: Available through the individual engine manufacturer.

Usually ships same day

Currently unavailable

$

$

1

Scag Part# 485017

Engine, Kawasaki FS651V (Electric Start)

Note: Available through the individual engine manufacturer.

Usually ships same day

Currently unavailable

$

$

2

Scag Part# 04001-54

Bolt, Hex Head 3/8-16 x 3"
Usually ships in 1 day

$

$0.88

0

3

Scag Part# 43715

Pivot, Idler
Usually ships in 1 day

$

$15.86

0

Usually ships in 1 day

$

$3.48

0

5

Scag Part# 462122

Idler Arm

Note: (incl. item #4)

Usually ships in 5 to 10 days

$

$77.39

0

6

Scag Part# 483087

Spring, Transmission Idler
Usually ships in 1 day

$

$46.49

0

7

Scag Part# 04021-05

Nut, Center Lock 3/8-16
Usually ships in 1 day

$

$0.23

0

8

Scag Part# 04019-04

Nut, Serrated Flange 3/8-16
Usually ships in 1 day

$

$0.25

0

9

Scag Part# 04063-03

Key, 1/4 x 1/4 x 2-1/2"
Usually ships in 1 day

$

$2.15

0

10

Scag Part# 04003-02

Bolt, Carriage 1/4-20 x 3/4"
Usually ships in 1 day

$

$0.28

0

11

Scag Part# 484620

Muffler, Kawasaki (FS481, FS541, FS600)
Usually ships in 1 day

$

$153.09

0

11

Scag Part# 485571

Muffler, Kawasaki (FS651) - SWZT61
Usually ships in 5 to 10 days

$

$172.64

0

11

Scag Part# 485572

Manifold, Kawasaki (FS651) - SWZT61
Usually ships in 5 to 10 days

$

$99.14

0

Usually ships in 5 to 10 days

$

$19.82

0

13

Scag Part# 483438

Reservoir Assembly

Note: (incl item #12)

Usually ships in 5 to 10 days

$

$33.18

0

14

Scag Part# 04017-05

Bolt, Hex Head, Serrated Flng 1/4-20 x 3/4"
Usually ships in 1 day

$

$0.40

0

15

Scag Part# 484664

Hose, RH Transmission
Usually ships in 5 to 10 days

$

$30.72

0

16

Scag Part# 48136-13

Clamp, 0.69" Max Dia.
Usually ships in 5 to 10 days

$

$6.21

0

17

Scag Part# 484663

Hose, LH Transmission
Usually ships in 5 to 10 days

$

$14.24

0

18

Scag Part# 48136-05

Clamp, 0.87" Max Dia.
Usually ships in 5 to 10 days

$

$3.12

0

19

Scag Part# 04001-196

Bolt, Hex Head 5/16-18 x 6-1/2"
Usually ships in 5 to 10 days

$

$1.42

0

20

Scag Part# 04003-04

Bolt, Carriage 5/16-18 x 1"
Usually ships in 1 day

$

$0.37

0

21
Usually ships in 1 day

$

$6.79

0

22

Scag Part# 04110-01

U-Nut, 1/4-20
Usually ships in 1 day

$

$0.98

0

23

Scag Part# 04021-08

Nut, Elastic Stop 1/4-20
Usually ships in 1 day

$

$0.07

0

24

Scag Part# 04003-12

Bolt, Carriage 5/16-18 x 3/4
Usually ships in 1 day

$

$0.32

0

25

Scag Part# 04019-02

Nut, Serrated Flange 1/4-20
Usually ships in 1 day

$

$0.09

0

26

Scag Part# 425923

Fan Cover, RH
Usually ships in 5 to 10 days

$

$44.92

0

27

Scag Part# 425922

Fan Cover, LH
Usually ships in 5 to 10 days

$

$44.92

0

28

Scag Part# 425778

Skid Plate
Usually ships in 1 day

$

$71.41

0

29

Scag Part# 04017-16

Cpscrw, 5/16-18 x 3/4"Serrated Flange HH
Usually ships in 1 day

$

$0.54

0

30

Scag Part# 04019-03

Nut, Serrated Flange 5/16-18
Usually ships in 1 day

$

$0.15

0

31

Scag Part# 04001-49

Bolt, Hex Head 5/16-18 x 3"
Usually ships in 1 day

$

$0.67

0

32

Scag Part# 04001-135

Bolt, Hex Head 3/8-16 x 1-3/4"
Usually ships in 1 day

$

$0.54

0

33

Scag Part# 04043-04

Flatwasher, 3/8-.391 x .938 x .105 Hardened
Usually ships in 1 day

$

$0.65

0

34

Scag Part# 04021-09

Nut, Elastic Stop 3/8-16
Usually ships in 1 day

$

$0.19

0

35
Usually ships in 5 to 10 days

$

$4.05

0

36

Scag Part# 482800-04

Fitting, Transmission
Usually ships in 5 to 10 days

$

$9.57

0

37

Scag Part# 43880

Spacer, Axle
Usually ships in 5 to 10 days

$

$11.14

0

38

Scag Part# 484578

Belt, Transmission Drive
Usually ships in 1 day

$

$45.11

0

39

Scag Part# 483638

Pulley, 3-1/2" Dia.
(Superseded to 486045K)
Usually ships in 1 day

$

$24.31

0

40

Scag Part# 484576

Transaxle Assy., (ZH-GMCC-3LUB-1MXX)

Note: RTN Spring is Scag p/n 484600. See item #61

Usually ships in 5 to 10 days

$

$1412.73

0

41

Scag Part# 484577

Transaxle Assy., (ZH-KMCC-3LUC-1MXX)

Note: RTN Spring is Scag p/n 484600. See item #61

Usually ships in 5 to 10 days

$

$1070.27

0

42

Scag Part# 484595

Pulley, 4-1/2" Dia. 1" Bore
Usually ships in 5 to 10 days

$

$36.26

0

43

Scag Part# 425954

Pusharm Mount Bracket, RH
Usually ships in 5 to 10 days

$

$11.42

0

44

Scag Part# 04061-01

Cotter Pin, 3/32 x 1"
Usually ships in 1 day

$

$0.36

0

45

Scag Part# 04040-14

Flatwasher, 1/4-.312 x .750 x .065
Usually ships in 1 day

$

$0.06

0

46

Scag Part# 482070

Spring, Dump Valve Link
Usually ships in 5 to 10 days

$

$5.88

0

47

Scag Part# 04069-01

Pin, Rue Cotter 3/8" Dia.
Usually ships in 1 day

$

$1.02

0

48

Scag Part# 43876

Joint, Swivel
Usually ships in 5 to 10 days

$

$9.35

0

49

Scag Part# 44188

Link, Dump Valve
Usually ships in 5 to 10 days

$

$39.76

0

50

Scag Part# 462610

Electric Clutch Assembly
Usually ships in 1 day

$

$266.82

0

51

Scag Part# 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25
Usually ships in 1 day

$

$2.57

0

52

Scag Part# 04102-06

Bolt, Hex Head 7/16-20 x 3" w/t Patch
Usually ships in 1 day

$

$1.97

0

53

Scag Part# 04030-05

Lockwasher, 7/16" spring
Usually ships in 1 day

$

$0.08

0

54

Scag Part# 04001-51

Bolt, Hex Head 3/8-16 x 3-3/4"
Usually ships in 1 day

$

$1.20

0

55

Scag Part# 04021-10

Nut, Elastic Stop 5/16-18
Usually ships in 1 day

$

$0.09

0

56

Scag Part# 425953

Pusharm Mount Bracket, LH
Usually ships in 5 to 10 days

$

$11.90

0

57

Scag Part# 425696

Bracket, Anti-Rotation
Usually ships in 5 to 10 days

$

$11.69

0

58

Scag Part# 484682

Wheel Assembly 18 x 6.5-8 (36" Only)
Usually ships in 5 to 10 days

$

$147.39

0

58

Scag Part# 481871

Tire 18 x 6.5-8 (36" Only)
Usually ships in 5 to 10 days

$

$120.58

0

58

Scag Part# 481867

Wheel Assembly 18 x 8.5-8
Usually ships in 5 to 10 days

$

$281.39

0

58

Scag Part# 481869

Tire 18 x 8.5-8
Usually ships in 5 to 10 days

$

$191.10

0

59

Scag Part# 04028-02

Wheel Nut, 1/2-20
Usually ships in 1 day

$

$1.32

0

60

Scag Part# 04024-03

Nut, Push-On 5/16-18
Usually ships in 1 day

$

$1.22

0

61

Scag Part# 484600

Spring, RTN
Usually ships in 5 to 10 days

$

$5.94

0
