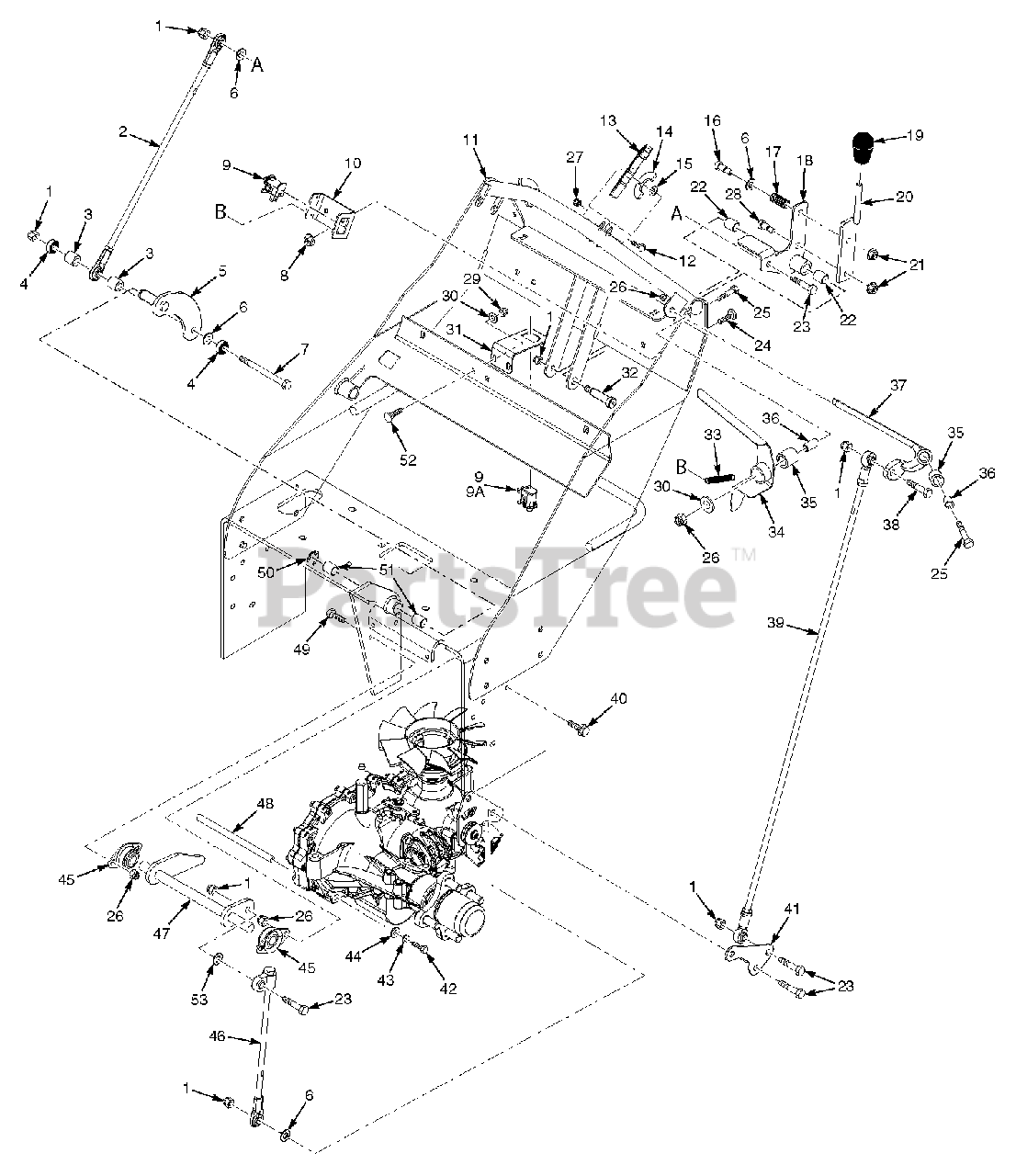

SWZT48-15FS - Scag 48" Walk-Behind Mower, 15hp Kawasaki (SN: L3500001 - L3599999) Steering Controls Parts Diagram

48" Walk-Behind Mower, 15hp Kawasaki

Steering Controls Parts Diagram

  • Title
1

Scag Part# 04021-09

Nut, Elastic Stop 3/8-16
Usually ships in 1 day

$

$0.19

0

2

Scag Part# 484589

Linkage, Speed Control
Usually ships in 1 day

$

$42.13

0

3
Usually ships in 1 day

$

$1.87

0

4
Usually ships in 1 day

$

$3.20

0

5

Scag Part# 452363

Neutral Plate Weldment
Usually ships in 5 to 10 days

$

$29.03

0

6

Scag Part# 04040-05

Flatwasher, 3/8-.406 x .812 x .065
Usually ships in 1 day

$

$0.07

0

7

Scag Part# 04001-77

Bolt, Hex Head 3/8-16 x 3-1/2"
Usually ships in 1 day

$

$1.11

0

8

Scag Part# 04019-02

Nut, Serrated Flange 1/4-20
Usually ships in 1 day

$

$0.09

0

9

Scag Part# 48717

Switch (Manual Start)
Usually ships in 1 day

$

$8.78

0

9A

Scag Part# 483473

Switch (Electric Start Only)
Usually ships in 1 day

$

$14.74

0

10

Scag Part# 425937

Bracket, Operator Presence Switch
Usually ships in 5 to 10 days

$

$14.42

0

11

Scag Part# 462835

Handle Assy, W/Decals
Usually ships in 5 to 10 days

$

$491.92

0

12

Scag Part# 04010-34

Machine Screw, #10-32 x 1-1/2", Pan Head
Usually ships in 1 day

$

$1.14

0

13

Scag Part# 462688

Latch, Thumb
Usually ships in 5 to 10 days

$

$11.83

0

14

Scag Part# 484749

Plate, Anti-Friction
Usually ships in 5 to 10 days

$

$8.78

0

15

Scag Part# 04032-05

Washer, 1/4" Curved Spring
Usually ships in 1 day

$

$12.98

0

16

Scag Part# 04009-11

Bolt, Shoulder 3/8 x 1"
Usually ships in 5 to 10 days

$

$2.50

0

17

Scag Part# 483601

Spring, Speed Control
Usually ships in 5 to 10 days

$

$2.21

0

18

Scag Part# 462575

Neutral Handle Assy

Note: (incl item #22)

Usually ships in 5 to 10 days

$

$51.08

0

19

Scag Part# 484672

Knob, Soft Touch
Usually ships in 1 day

$

$14.08

0

20

Scag Part# 452118

Handle Weldment, Speed Control
Usually ships in 5 to 10 days

$

$30.75

0

21

Scag Part# 04019-03

Nut, Serrated Flange 5/16-18
Usually ships in 1 day

$

$0.15

0

22

Scag Part# 483453-19

Bearing, Plastic 1/2" I.D.
Usually ships in 5 to 10 days

$

$6.89

0

23

Scag Part# 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"
Usually ships in 1 day

$

$0.44

0

24

Scag Part# 04003-09

Bolt, Carriage 1/4-20 x 1-1/4"
Usually ships in 1 day

$

$0.67

0

25

Scag Part# 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"
Usually ships in 1 day

$

$0.43

0

26

Scag Part# 04021-10

Nut, Elastic Stop 5/16-18
Usually ships in 1 day

$

$0.09

0

27

Scag Part# 04021-01

Nut, Elastic Stop #10-32
Usually ships in 1 day

$

$0.07

0

28

Scag Part# 04009-14

Bolt, Shoulder 3/8 x .375"
Usually ships in 5 to 10 days

$

$5.12

0

29

Scag Part# 04021-08

Nut, Elastic Stop 1/4-20
Usually ships in 1 day

$

$0.07

0

30

Scag Part# 04040-15

Flatwasher, 5/16-.375 x .875 x .083
Usually ships in 1 day

$

$0.07

0

31

Scag Part# 425948

Bracket, Neutral Switch (Manual Start)
Usually ships in 5 to 10 days

$

$7.46

0

31

Scag Part# 426568

Bracket, Neutral Switch (Electric Start Only)
Usually ships in 5 to 10 days

$

$12.19

0

32

Scag Part# 04009-16

Bolt, Shoulder 1/2 x 2"
Usually ships in 5 to 10 days

$

$4.58

0

33

Scag Part# 484670

Spring, Operator Presence
Usually ships in 5 to 10 days

$

$5.53

0

34

Scag Part# 462494

Handle, Op. Presence-LH

Note: (incl item #35)

Usually ships in 5 to 10 days

$

$57.05

0

34

Scag Part# 462495

Handle, Op. Presence-RH

Note: (incl item #35)

Usually ships in 1 day

$

$35.78

0

Usually ships in 5 to 10 days

$

$2.42

0

36

Scag Part# 43866

Sleeve, Pivot
Usually ships in 5 to 10 days

$

$10.40

0

37

Scag Part# 462489

Handle Assembly-LH

Note: (incl item #35)

Usually ships in 5 to 10 days

$

$32.37

0

37

Scag Part# 462490

Handle Assembly-RH

Note: (incl item #35)

Usually ships in 5 to 10 days

$

$36.04

0

38

Scag Part# 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4"
Usually ships in 1 day

$

$0.57

0

39

Scag Part# 484579

Linkage, Steering
Usually ships in 5 to 10 days

$

$55.08

0

40

Scag Part# 04017-16

Cpscrw, 5/16-18 x 3/4"Serrated Flange HH
Usually ships in 1 day

$

$0.54

0

41

Scag Part# 425756

Bracket, Transaxle Control
Usually ships in 5 to 10 days

$

$9.53

0

42

Scag Part# 04001-45

Bolt, Hex Head 3/8-16 x 2"
Usually ships in 1 day

$

$0.69

0

43

Scag Part# 04030-04

Lockwasher, 3/8" Spring
Usually ships in 1 day

$

$0.06

0

44

Scag Part# 04041-07

Flatwasher, 3/8-.391 x .938 x .105
Usually ships in 1 day

$

$0.44

0

45

Scag Part# 48796

Bearing, Self Aligning 5/8" I.D.
Usually ships in 1 day

$

$11.02

0

46

Scag Part# 483574

Linkage, Pump
Usually ships in 5 to 10 days

$

$60.09

0

47

Scag Part# 452300

Weldment, Bellcrank-LH
Usually ships in 5 to 10 days

$

$30.94

0

47

Scag Part# 452301

Weldment, Bellcrank-RH
Usually ships in 5 to 10 days

$

$32.13

0

48

Scag Part# 43766

Spacer, Axles
Usually ships in 5 to 10 days

$

$25.48

0

49

Scag Part# 04001-09

Bolt, Hex Head 5/16-18 x 1"
Usually ships in 1 day

$

$0.27

0

50

Scag Part# 04050-01

Retaining Ring .625" EXT. "E"
Usually ships in 1 day

$

$0.26

0

Usually ships in 5 to 10 days

$

$3.65

0

52

Scag Part# 04003-02

Bolt, Carriage 1/4-20 x 3/4"
Usually ships in 1 day

$

$0.28

0

53

Scag Part# 04043-04

Flatwasher, 3/8-.391 x .938 x .105 Hardened
Usually ships in 1 day

$

$0.65

0
