Scag SWZT48-15FS - Scag 48" Walk-Behind Mower, 15hp Kawasaki (SN: N5500001 - N5599999) 48" CUTTER DECK Parts Lookup with Diagrams

1

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

2

Scag 424615

Bracket, Belt Guide

$5.49

$

Usually ships in 2-12 days

3

Scag 04112-06

Nut, 3/4-16 Spriral Lock

$11.99

$

In Stock, only 2 left!

4

Scag 04063-01

Key, 1/4 x 1/4 x 1.25" Pulley Mtg.

$1.49

$

In Stock, only 2 left!

5

Scag 484618

Belt, Cutter Deck

$116.99

$

Usually ships in 2-12 days

6

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

7

Scag 424367

Quick Pin, 5/16" Dia.

$2.49

$

In Stock, Qty 7

8

Scag 483210

Pulley, Idler 5" Dia.

$56.99

$

In Stock, Qty 17

9

Scag 425978

Belt Cover

$35.99

$

Usually ships in 2-12 days

10

Scag 483323

Pulley, 5.13" OD - 25mm Bore

$33.99

$

In Stock, only 1 left!

11

Scag 43711

Spacer, Idler Pulley

$6.99

$

Usually ships in 2-12 days

12

Scag 483422

Pulley, 5" Idler

$20.99

$

In Stock, Qty 13

13

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-1/2" - Front

$0.99

$

In Stock, Qty 20+

14

Scag 04041-11

Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge

$1.99

$

In Stock, Qty 20+

15

Scag 483453-03

Bearing, Plastic

$7.99

$

Usually ships in 2-12 days

16

Scag 462191

Idler Arm Assembly

$141.99

$

Usually ships in 2-12 days

17

Scag 43708

Pivot, Idler

$32.99

$

In Stock, only 1 left!

18

Scag 04001-62

Capscrew, Hex Head 3/8-16 x 3.25"

$1.49

$

In Stock, Qty 20+

19

Scag 04110-04

U-Nut, 3/8-16

$5.99

$

In Stock, Qty 9

20

Scag 481625-01

Knob, w/stud 3/8-16 x 1-1/4"

$2.99

$

In Stock, Qty 20+

21

Scag 462031

Discharge Chute Assy. SFZ48

$67.99

$

Usually ships in 2-12 days

Scag 462472

CA Discharge Chute

Note: California Models Only (not shown)

$146.99

$

Usually ships in 2-12 days

Scag 425619

Turbo Baffle, 48V

Note: California Models Only (not shown)

$38.99

$

Usually ships in 2-12 days

22

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

23

Scag 482245

Spring, Discharge Chute

$11.99

$

In Stock, only 4 left!

24

Scag 04001-154

Bolt, 5/16-18 x 4-3/4" Hex Head

$2.99

$

In Stock, Qty 8

25

Scag 462978

Cutter Deck w/Decals, SMWZT-48

$1025.99

$

Usually ships in 2-12 days

26

Scag 04041-38

Flatwasher, 3/8-.406 x 2.25" x .1875

$3.49

$

In Stock, Qty 10

27

Scag 04001-51

Capscrew, Hex Head 3/8-16 x 3-3/4"

$1.49

$

In Stock, Qty 20+

28

Scag 04001-77

Bolt, Hex Head, 3/8-16 x 3-1/2"

$1.49

$

In Stock, Qty 13

29

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

30

Scag 04001-175

Bolt, Hex Head 5/16-18 x 1-1/2" Grade 8

$0.99

$

In Stock, Qty 12

31

Scag 482877

Cutter Blade, 16-1/2" (48V)

$22.99

$

In Stock, Qty 20+

32

Scag 04043-06

Flatwasher, 5/8-.688 x 1-3/4 x .134 HD

$1.99

$

In Stock, Qty 20+

33

Scag 04030-07

Lockwasher, 5/8" Spring

$1.49

$

In Stock, Qty 20+

34

Scag 04001-121

Bolt, Hex Head 5/8-11 x 1-1/2"

$2.49

$

In Stock, Qty 20+

35

Scag 461950

Spindle Assembly

$140.99

$

In Stock, only 2 left!

36

Scag 483304

Debris Shield

$6.49

$

In Stock, only 4 left!

37

Scag 483303

Bearing

$13.99

$

In Stock, only 3 left!

38

Scag 43693

Spacer, Bearing

$22.99

$

Usually ships in 2-12 days

39

Scag 462014

Spindle Housing Assembly

Note: (Incl. item #37, 38)

$132.99

$

In Stock, only 1 left!

40

Scag 43694

Protector, Bearing

$28.99

$

Usually ships in 2-12 days

41

Scag 43695

Shaft, Spindle

$50.99

$

In Stock, only 1 left!

42

Scag 04009-10

Bolt, Shoulder 1/2 x 3/8-16 x 2-3/4"

$6.49

$

In Stock, Qty 13

43

Scag 425959

Pusharm

$18.99

$

Usually ships in 2-12 days

44

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

45

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI)

$0.99

$

In Stock, Qty 20+

46

Scag 483379

Bearing

$5.99

$

Usually ships in 2-12 days

47

Scag 431046

Spacer, Bearing

$9.49

$

Usually ships in 2-12 days

48

Scag 04021-22

Lock Nut, 5/16-18 Elastic Stop Grade 8

$0.99

$

In Stock, Qty 20+

49

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

50

Scag 43063

SPACER, IDLER

$9.99

$

Usually ships in 2-12 days

51

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black

$0.99

$

In Stock, Qty 20+

52

Scag 483375

Spring, Cutter Deck Idler

$87.99

$

Usually ships in 2-12 days

53

Scag 482295

Wheel, Anti-Scalp

$9.99

$

In Stock, Qty 20+

54

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 12

55

Scag 451926

Shaft Weldment, Guide Roller

$26.99

$

Usually ships in 2-12 days

56

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 20+

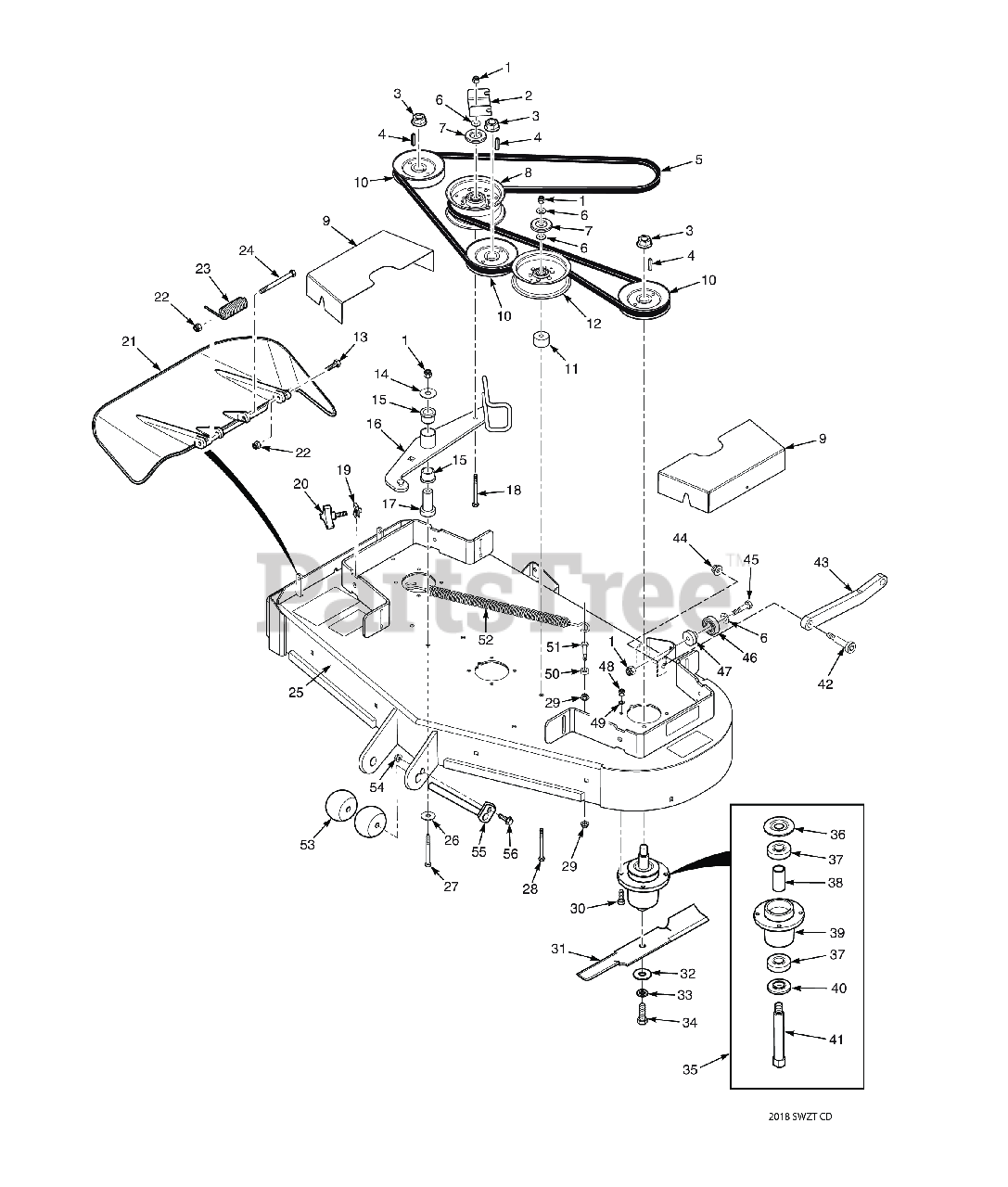

SWZT48-15FS - Scag 48" Walk-Behind Mower, 15hp Kawasaki (SN: N5500001 - N5599999) 48" CUTTER DECK Parts Diagram

48" CUTTER DECK Parts Diagram
