SWZT52-18FSE - Scag 52" Walk-Behind Mower, 18hp Kawasaki (SN: M9300001 - M9399999) Swzt Fuel System Parts Diagram

52" Walk-Behind Mower, 18hp Kawasaki

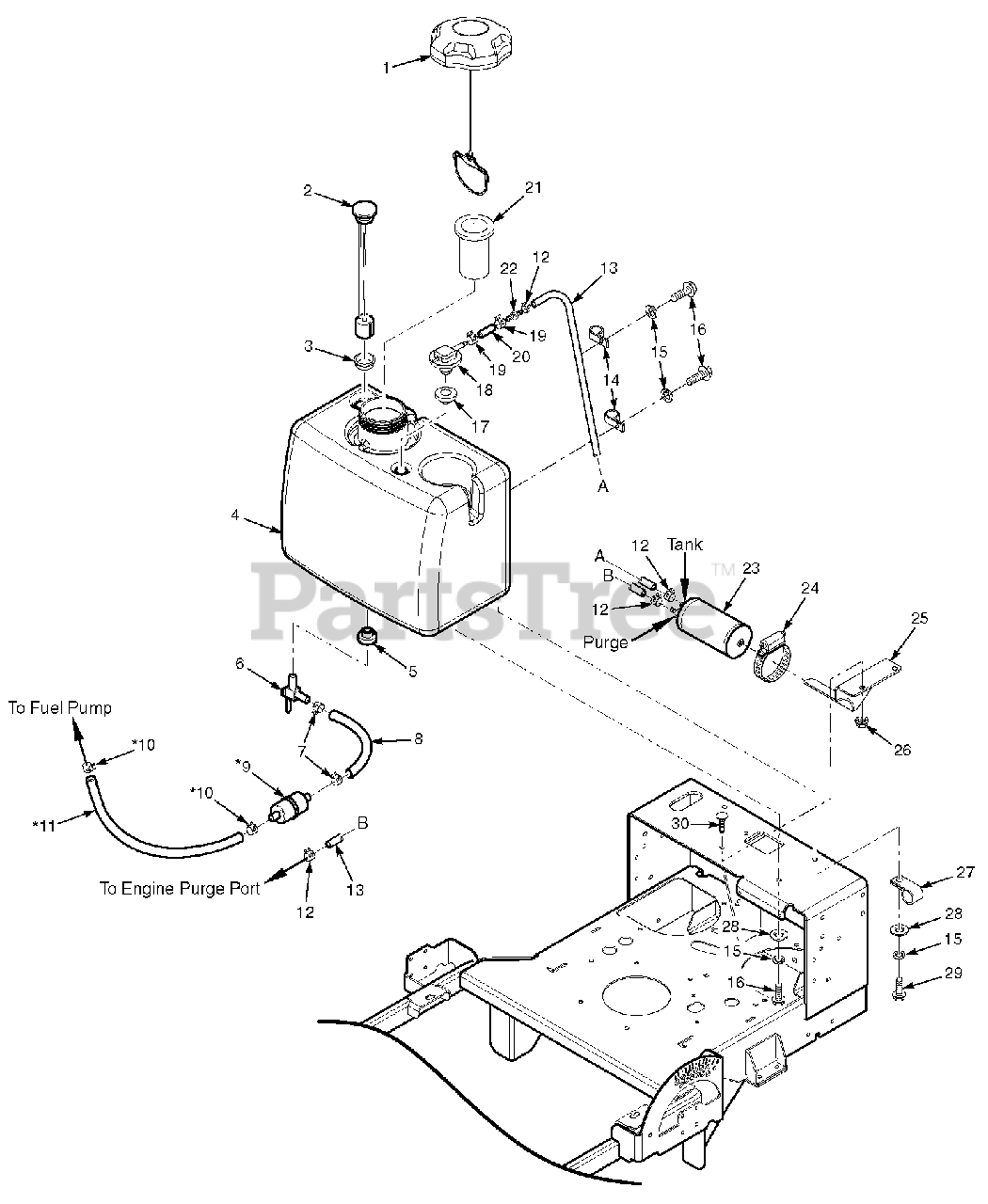

Swzt Fuel System Parts Diagram

  • Title

1

Scag 484286

Fuel Cap w/ Tether

$54.99

$

In Stock, only 4 left!

0

1

Scag 484297

Fuel Cap w/ Tether - California Models Only

Note: (not shown)

$65.99

$

Usually ships in 2-12 days

0

2

Scag 484259

Fuel Gauge Assembly

Note: (incl. #3)

$79.99

$

In Stock, only 1 left!

0

3

Scag 484242

Seal, Fuel Gauge

$15.99

$

In Stock, only 2 left!

0

4

Scag 462375

Fuel Tank Assembly
(Superseded to 463029)

Note: (incl. #2, 3, 5, 6, 17, 18)

$483.99

$

Usually ships in 2-12 days

0

5

Scag 482571

Bushing, .56 Dia. Viton

$12.99

$

In Stock, Qty 20+

0

6

Scag 483747

Ball Valve w/Screen

$30.99

$

In Stock, Qty 6

0

7

Scag 48059-01

Clamp, Fuel Hose

$0.99

$

In Stock, Qty 20+

0

8

Scag 483617

Fuel Hose, 1/4" ID (order by inch)

$0.99

$

In Stock, Qty 20+

0

9

Fuel Filter

Note: = Available through engine manufacturer only.

$

$

Not available

10

Clamp, Fuel Hose

Note: = Available through engine manufacturer only.

$

$

Not available

11

Fuel Hose

Note: = Available through engine manufacturer only.

$

$

Not available

12

Scag 48059-05

Clamp, Vapor Recovery Hose 3/16"

$4.49

$

In Stock, only 3 left!

0

13

Scag 484345

Hose, Vapor Recovery 3/16" (order by inch)

$0.99

$

In Stock, Qty 20+

0

14

Scag 48030-22

Clamp, 3/8"

$1.99

$

Usually ships in 2-12 days

0

15

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0

16

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

17

Scag 484285

Grommet, Viton

$11.99

$

Usually ships in 2-12 days

0

18

Scag 484333

Fitting, Remote Vent

$14.99

$

In Stock, only 4 left!

0

19

Scag 48059-02

Clamp, Fuel Hose 7/32" ID

$0.99

$

In Stock, Qty 10

0

20

Scag 484347

Hose, Vapor Recovery 1/4" (order by inch)

$0.99

$

In Stock, Qty 12

0

21

Scag 484279-01

Tube, Fuel Tank Insert - 4"

$4.49

$

Usually ships in 2-12 days

0

22

Scag 484343-01

Mender, 1/4 x 3/16 w/.02 Hole

$26.99

$

In Stock, only 1 left!

0

23

Scag 484287

Carbon Canister

$96.99

$

Usually ships in 2-12 days

0

24

Scag 48136-17

Clamp

$7.49

$

Usually ships in 2-12 days

0

25

Scag 452176

Bracket, Canister Mounting

$35.99

$

Usually ships in 2-12 days

0

26

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 16

0

27

Scag 48030-09

Clamp, 1/2"

$1.49

$

In Stock, only 4 left!

0

28

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 10

0

29

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

30

Scag 04003-12

Bolt, Carriage 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 15

0
