Scag SWZT61-22FSE - Scag 61" Walk-Behind Mower, 22hp Kawasaki (SN: M9400001 - M9499999) 61" Cutter Deck Parts Lookup with Diagrams

1

Scag 462980

Cutter Deck w/Decals, SWZT61

$1446.99

$

Usually ships in 2-12 days

2

Scag 484026

Pulley, 6.32" Dia.

$32.99

$

In Stock, only 2 left!

3

Scag 485511

Belt, Cutter Deck - SWZT61

$126.99

$

Usually ships in 2-12 days

4

Scag 04112-06

Nut, Spiral Lock 3/4-16

$11.99

$

In Stock, only 2 left!

5

Scag 04063-01

Key, 1/4 x 1/4 x 1-1/4"

$1.49

$

In Stock, only 2 left!

6

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

7

Scag 424615

Bracket, Belt Guide

$5.49

$

Usually ships in 2-12 days

8

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

9

Scag 424367

Dust Shield

$2.49

$

In Stock, Qty 7

10

Scag 483422

Pulley, Idler 5"

$20.99

$

In Stock, Qty 15

11

Scag 426905

Belt Cover, RH - SWZT61

$53.99

$

In Stock, only 1 left!

12

Scag 426904

Belt Cover, LH - SWZT61

$53.99

$

In Stock, only 1 left!

13

Scag 43711

Spacer

$6.99

$

Usually ships in 2-12 days

14

Scag 04041-11

Flatwasher, 3/8-.406 x 1-1/2"

$1.99

$

In Stock, Qty 20+

15

Scag 483453-03

Bearing

$7.99

$

Usually ships in 2-12 days

16

Scag 462829

Idler Arm Weldment w/Bearings - SWZT61

$124.99

$

Usually ships in 2-12 days

17

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 10

18

Scag 04117-02

Nut, Elastic Flange 3/8-16

$0.99

$

In Stock, Qty 20+

19

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

20

Scag 425959

Pusharm

$18.99

$

Usually ships in 2-12 days

21

Scag 483379

Bearing

$5.99

$

Usually ships in 2-12 days

22

Scag 431046

Spacer, Bearing

$9.49

$

Usually ships in 2-12 days

23

Scag 483375

Spring, Deck Idler

$87.99

$

Usually ships in 2-12 days

24

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2"

Note: Grade 8

$0.99

$

In Stock, Qty 20+

25

Scag 43063

Spacer

$9.99

$

Usually ships in 2-12 days

26

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

27

Scag 04021-22

Nut, Elastic Stop 5/16-18

Note: Grade 8

$0.99

$

In Stock, Qty 20+

28

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

29

Scag 04001-175

Bolt, Hex Head 5/16-18 x 1-1/2"

Note: Grade 8

$0.99

$

In Stock, Qty 12

30

Scag 482879

Cutter Blade, 21"

$26.99

$

In Stock, Qty 20+

31

Scag 04043-06

Flatwasher, 5/8-.688 x 1.75 x .134 HD

$1.99

$

In Stock, Qty 20+

32

Scag 04030-07

Lockwasher, 5/8" Spring

$1.49

$

In Stock, Qty 20+

33

Scag 04001-121

Bolt, Hex Head 5/8-11 x 1-1/2"

$2.49

$

In Stock, Qty 20+

34

Scag 461950

Spindle Assembly

$140.99

$

In Stock, only 2 left!

35

Scag 483304

Debris Shield

$6.49

$

In Stock, only 4 left!

36

Scag 483303

Bearing

$13.99

$

In Stock, only 3 left!

37

Scag 43693

Spacer

$22.99

$

Usually ships in 2-12 days

38

Scag 462014

Spindle Housing

$132.99

$

In Stock, only 1 left!

39

Scag 43694

Protector, Bearing

$28.99

$

Usually ships in 2-12 days

40

Scag 43695

Shaft, Spindle

$50.99

$

In Stock, only 1 left!

41

Scag 04001-77

Bolt, Hex Head 3/8-16 x 3-1/2"

$1.49

$

In Stock, Qty 13

42

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

43

Scag 04041-38

Flatwasher, 3/8-.406 x 2.25 x .1875

$3.49

$

In Stock, Qty 10

44

Scag 04001-51

Bolt, Hex Head 3/8-16 x 3-3/4"

$1.49

$

In Stock, Qty 20+

45

Scag 482295

Wheel, Anti-Scalp

$9.99

$

In Stock, Qty 20+

46

Scag 451926

Shaft Weldment

$26.99

$

Usually ships in 2-12 days

47

Scag 04117-01

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

48

Scag 481632

Wheel, Anti-Scalp

$27.99

$

In Stock, Qty 20+

49

Scag 04003-26

Bolt, Carriage 3/8-16 x 4"

$1.99

$

In Stock, Qty 20+

50

Scag 04017-27

Bolt, Hex Head Serrated Flange 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

51

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

52

Scag 422478

Bracket, Anti-Scalp

$28.99

$

In Stock, Qty 6

53

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

54

Scag 481625-01

Knob w/Stud

$2.99

$

In Stock, Qty 20+

55

Scag 04110-04

U-Nut, 3/8-16

$5.99

$

In Stock, Qty 9

56

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

57

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

58

Scag 462213

Discharge Chute Assembly

$102.99

$

Usually ships in 2-12 days

58

Scag 462476

CA Discharge Chute

Note: = California Models Only (not shown)

$138.99

$

Usually ships in 2-12 days

58

Scag 425867

Turbo Baffle

Note: = California Models Only (not shown)

$37.99

$

Usually ships in 2-12 days

59

Scag 482245

Spring, Discharge Chute

$11.99

$

In Stock, only 4 left!

60

Scag 04001-154

Bolt, Hex Head 5/16-18 x 4-3/4"

$2.99

$

In Stock, Qty 8

61

Scag 43708

Pivot, Idler

$32.99

$

In Stock, only 1 left!

62

Scag 04009-10

Bolt, Shoulder 1/2 x 3/8-16 x 2-3/4"

$6.49

$

In Stock, Qty 13

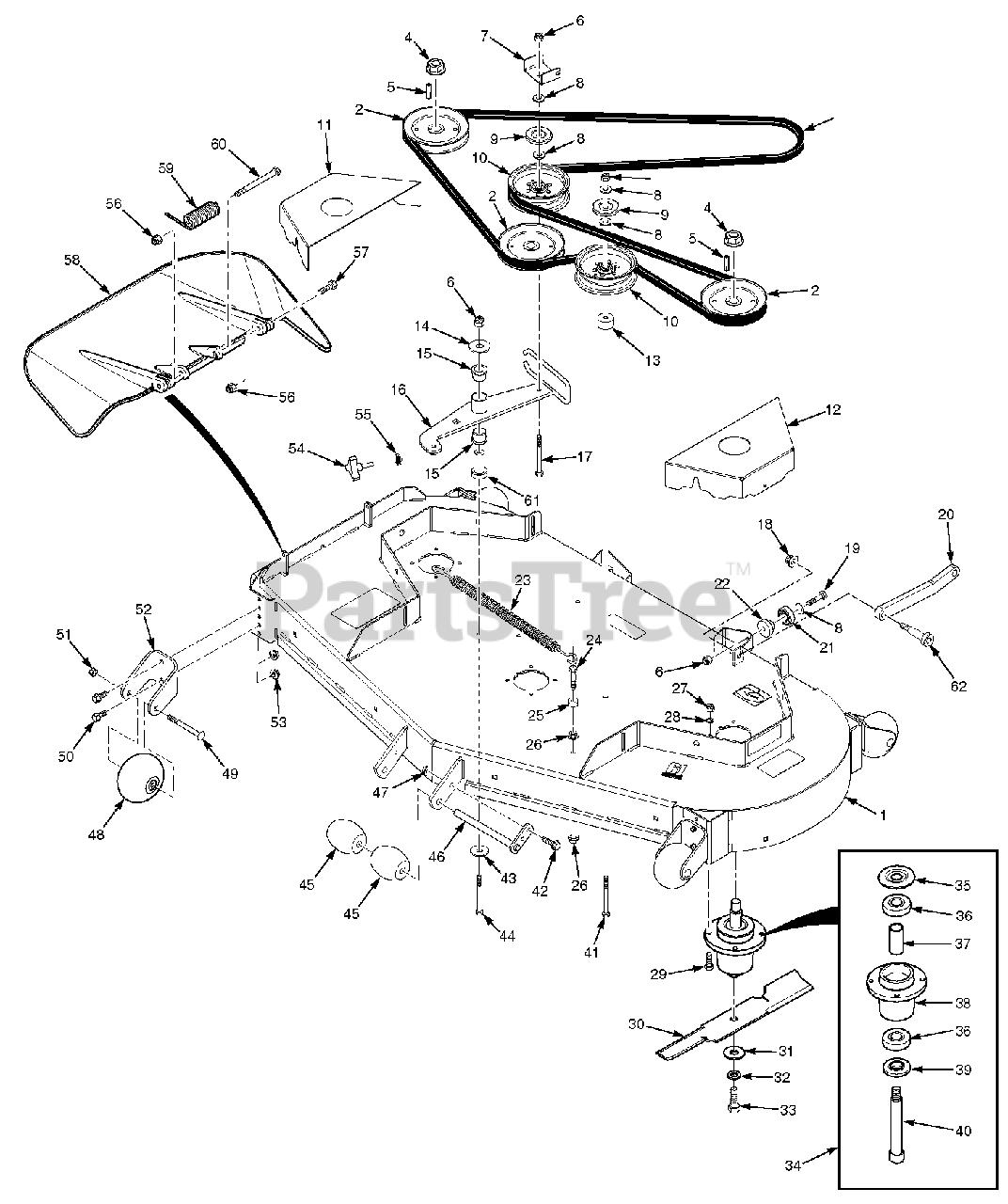

SWZT61-22FSE - Scag 61" Walk-Behind Mower, 22hp Kawasaki (SN: M9400001 - M9499999) 61" Cutter Deck Parts Diagram

61" Cutter Deck Parts Diagram
