SX 135 C (UT-20667) - Homelite String Trimmer Handles - Deflector - String Head - Shaft Parts Diagram

String Trimmer

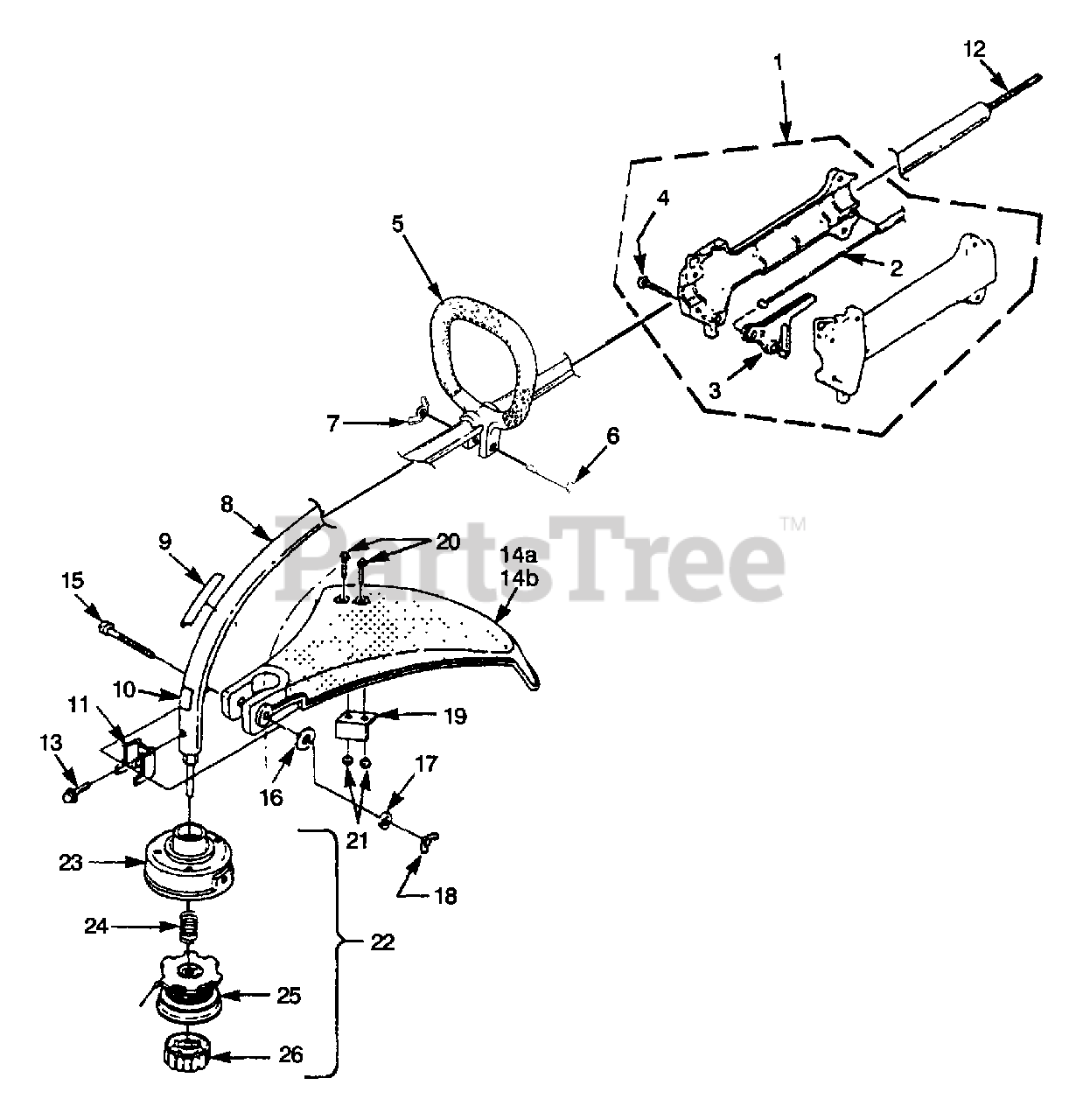

Handles - Deflector - String Head - Shaft Parts Diagram

  • Title

1

Homelite A00101A

HANDLE GRIP ASSEMBLY

$

$

Currently unavailable

2

Homelite A03006

CABLE - Throttle

$

$

Not available

3

Homelite 08833

TRIGGER
(Superseded to UP04558)

$

$

Not available

4

Homelite 82368

SCREW - Thread Forming (#8 X 3/4")
(Superseded to PS00055)

Note: Torque Specs. 15-25 In/Lbs, 1.7-2.8 Nm

$

$

Not available

5

Homelite A04709

FRONT HANDLE KIT

$

$

Not available

6

Homelite 80295

SCREW - Cap Hex Hd (10-24 X 2")

$2.99

$

Usually ships in 3-7 days

0

7

Homelite 93992

NUT - Wing (10-24)

Note: Torque Specs. 5-30 In/Lbs, .6-3.4 Nm

$

$

Not available

8

Homelite A04459

HOUSING - Drive Shaft
(Superseded to UP04555)

$

$

Not available

9

Homelite 04458

DECAL - Starting Instructions
(Superseded to UP04130)

$

$

Not available

10

Homelite 04679

DECAL - Warning
(Superseded to 984032001)

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 07928

CLAMP
(Superseded to UP04137)

$

$

Not available

12

Homelite 98816

SHAFT - Flexible
(Superseded to PS01502)

$

$

Not available

13

Homelite 88077

SCREW - Sems Hex Hd (#10 X 1/2)
(Superseded to PS05243)

Note: Torque Specs. 15-25 In/Lbs, 1.7-2.8 Nm; 262 Red Required Locktite

$

$

Not available

14A

Homelite A04705

DEFLECTOR & BLADE KIT (55 Deg.)
(Superseded to UP06710A)

$

$

Not available

14B

Homelite A04704

DEFLECTOR & BLADE KIT (100 Deg.)
(Superseded to UP06572)

Note: Both assemblies include 15-21

$

$

Not available

15

Homelite 80295

SCREW - Cap Hex Hd (10-24 X 2")

$2.99

$

Usually ships in 3-7 days

0

16

Homelite 84006

WASHER - Flat (1/4")

$

$

Not available

17

Homelite 83009

WASHER - Lock (1/4")

$4.99

$

Usually ships in 3-7 days

0

18

Homelite 93992

NUT - Wing (10-24)

Note: Torque Specs. 5-30 In/Lbs, .6-3.4 Nm

$

$

Not available

19

Homelite A03832

BLADE - Cut-Off
(Superseded to UP04119)

$

$

Not available

20

Homelite 82531

SCREW - Mech Hex Hd (10-24 X 7/8")
(Superseded to 660616001)

Note: Torque Specs. 15-20 In/Lbs, 1.7-2.8 Nm; 262 Red Required Locktite

$

$

Not available

21

Homelite 81261

NUT - Hex (10-24)

$

$

Not available

22

Homelite DA03001A

STRINGHEAD - Complete (.080" Line)
(Superseded to UP04408A)

$

$

Not available

23

Homelite A98231A

HOUSING & EYELET
(Superseded to 099068001005)

Note: Dual Line

$

$

Not available

24

Homelite 06713

SPRING - Compression

$1.49

$

In Stock, only 2 left!

0

25

Homelite DA98912E

SPOOL & STRING (.080" Line)
(Superseded to 308044002)

$

$

Not available

26

Homelite DA98866A

RETAINER - Spool
(Superseded to UP04273A)

Note: R.H. Thread, Black

$

$

Not available
