SX 135 C (UT-20667) - Homelite String Trimmer Muffler - Air Cleaner Parts Diagram

String Trimmer

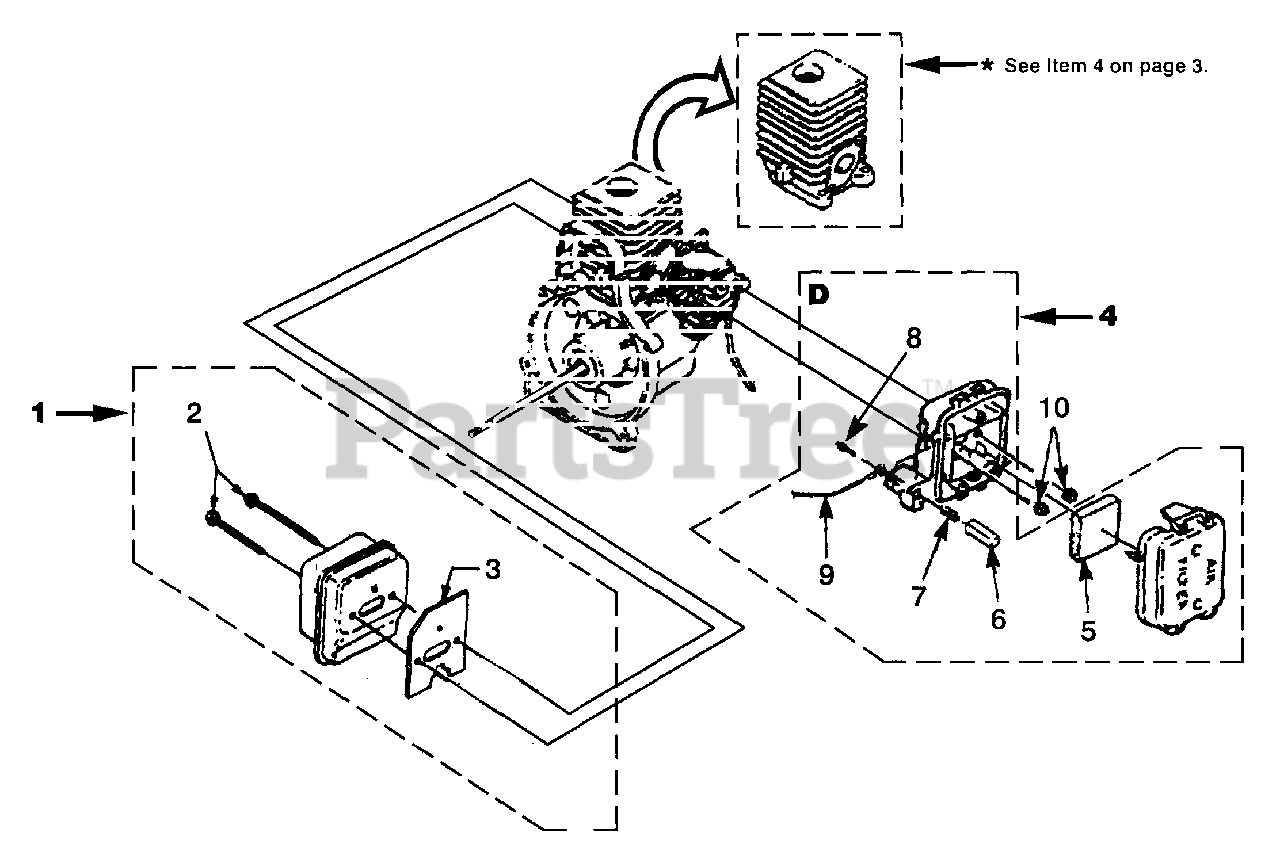

Muffler - Air Cleaner Parts Diagram

  • Title

1

Homelite A07315

MUFFLER COMPLETE
(Superseded to UP04692)

$

$

Not available

2

Homelite 88060

SCREW - Sems Hex (10-24 X 2-1/2")
(Superseded to 660673001)

Note: Torque Specs. 40-50 In/Lbs, 4.5-5.6 Nm

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 98786C

GASKET - Muffler

Note: Also included with 25CC Cylinder Kit P/N A07145B

$

$

Not available

4

Homelite A04707A

AIR FILTER KIT

$

$

Not available

5

Homelite D98760B

FILTER - AIR
(Superseded to 98760)

$1.49

$

In Stock, Qty 5

0

6

Homelite 98769

BUTTON - Switch

$2.99

$

Usually ships in 3-7 days

0

7

Homelite 95020

SPRING - Compression
(Superseded to UP04716)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 82513

SCREW - Plastite (#6)

Note: Torque Specs. 5-10 In/Lbs, 6-1.1 Nm

$1.49

$

In Stock, Qty 5

0

9

Homelite A07238

LEAD - Electrical
(Superseded to 290218001)

$

$

Not available

10

Homelite 81208

NUT - Hex (10-24)

Note: Torque Specs. 40-50 In/Lbs, 4.5-5.6 Nm

$

$

Not available
