Sx3100 (54AMB4SZ727) - Cub Cadet Yanmar Sx Series Compact Tractor Relay Parts Diagram

Sx Series Compact Tractor

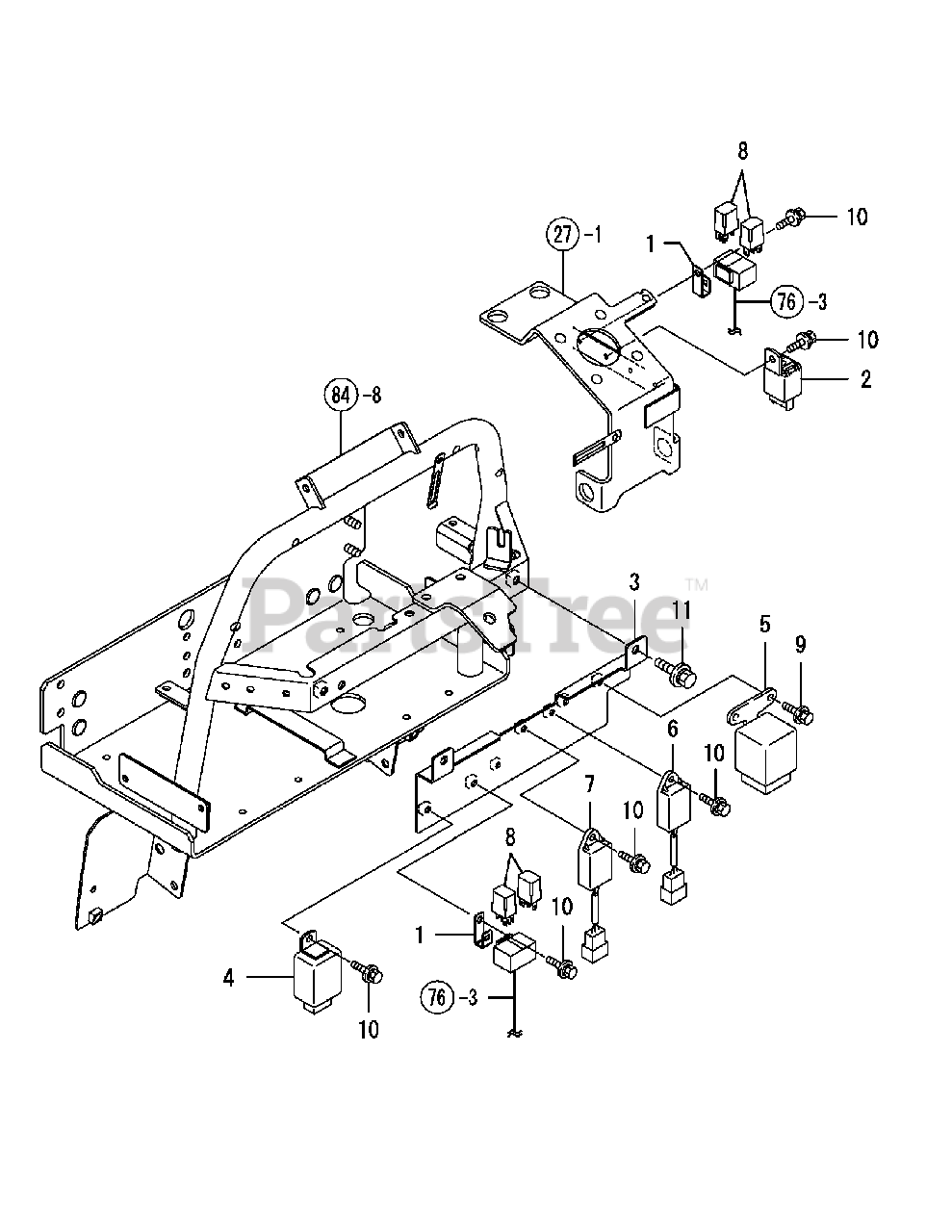

Relay Parts Diagram

  • Title

1

Cub Cadet CY-1A7531-51460

Stay, Relay

$

$

Not available

2

Cub Cadet CY-198220-52180

Relay, Starter

$

$

Not available

3

Cub Cadet CY-1A7510-57101

Stay Cmp, Regulator

$

$

Not available

4

Cub Cadet CY-1A6780-57200

Flusher Unit

$

$

Not available

5

Cub Cadet CY-119650-77910

Relay, Glow Plug
(Superseded to CY-119650-77911)

$

$

Not available

6

Cub Cadet CY-128300-77920

Timer, Glow Plug 15 Sec

$

$

Not available

7

Cub Cadet CY-129211-77920

Timer, Fuel Solenoid 1 Sec

$

$

Not available

8

Cub Cadet CY-1K1140-82500

Relay, Starter

$

$

Not available

9

Cub Cadet CY-26018-060122

Bolt M6X 12

$

$

Not available

10

Cub Cadet CY-26018-060162

Bolt M6X16

$

$

Not available

11

Cub Cadet CY-26018-080202

Bolt M 8X 20

$

$

Not available

Note 27-1, Refers to DOCKING BOLT, Ref No. 1

$

$

Not available

Note 76-3, Refers to WIRE HARNESS, Ref No. 3

$

$

Not available

Note 84-8, Refers to DASHBOARD, Ref No. 8

$

$

Not available
