SX400DSM500 (SX40) - Subaru Robin Engine 640 Fuel & Lubricant Parts Diagram

Engine

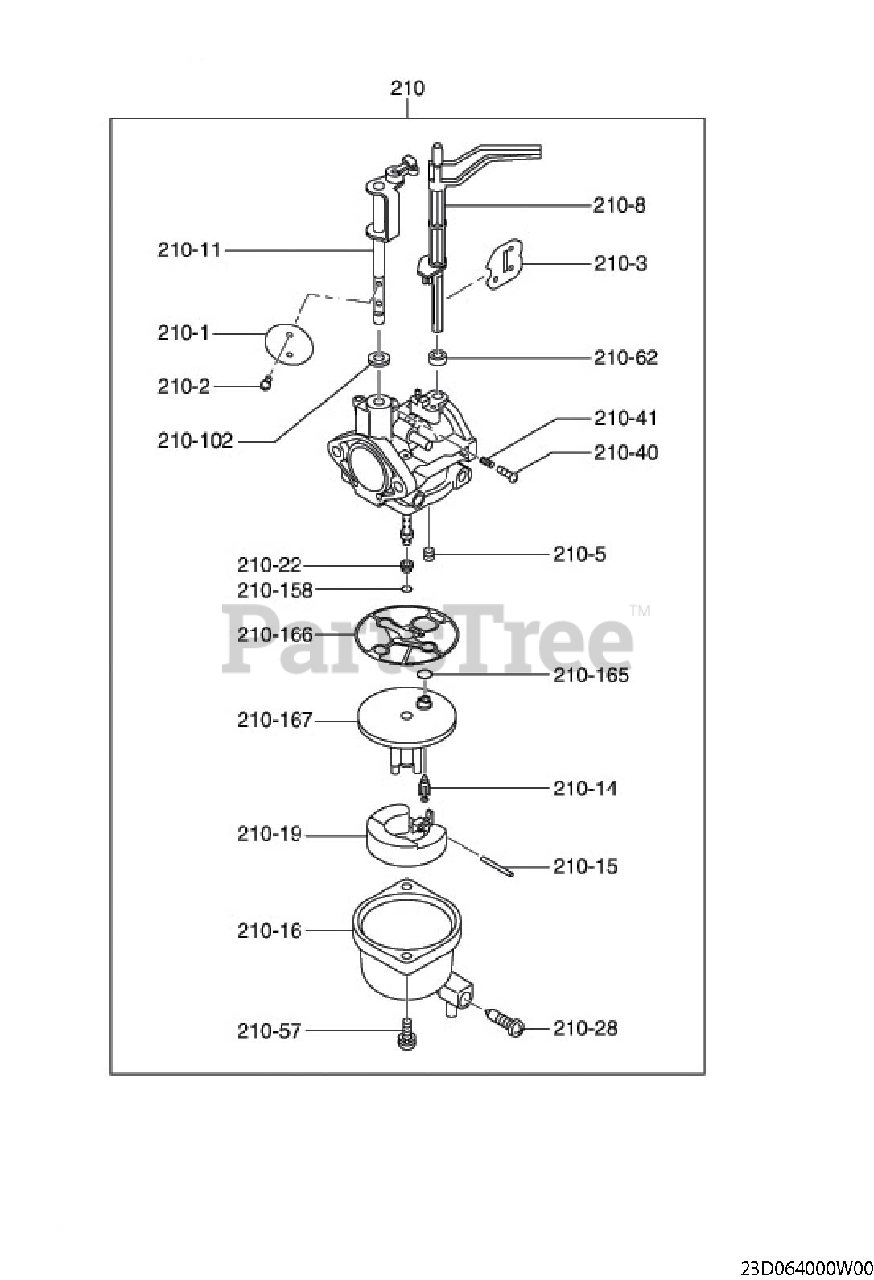

640 Fuel & Lubricant Parts Diagram

  • Title

210

23D-62301-10

CARBURETOR AY

$

$

Not available

-1

Subaru Robin 20B-62535-08

VALVE THROTTLE

$9.31

$

Usually ships in 2-12 days

0

-2

Subaru Robin 261-62352-08

SCREW, VALVE SET

$2.99

$

Usually ships in 2-12 days

0

-3

Subaru Robin 20B-62526-08

Choke Valve

$9.49

$

Usually ships in 2-12 days

0

-5

Subaru Robin 20B-62421-08

JET, SLOW

$32.99

$

In Stock, only 1 left!

0

-8

23D-62520-08

SHAFT, CHOKE

$

$

Not available

-11

Subaru Robin 20B-62531-08

SHAFT CP THROTTLE

$35.99

$

In Stock, only 1 left!

0

-14

Subaru Robin 20B-62500-08

VALVE AY FLOAT

$28.99

$

Usually ships in 2-12 days

0

-15

236-62515-08

PIN, FLOAT

$

$

Not available

-16

Subaru Robin 20B-62550-08

CHAMBER CP, FLOAT

$81.99

$

Usually ships in 2-12 days

0

-19

Subaru Robin 20B-62505-08

FLOAT AY

$28.99

$

Usually ships in 2-12 days

0

-22

20K-62414-08

JET COML, MAIN (R)

$

$

Not available

-28

Subaru Robin 20B-62354-08

SCREW, DRAIN

$16.99

$

Usually ships in 2-12 days

0

-40

Subaru Robin 20B-62353-08

SCREW, THRO. ADJUST

$1.99

$

Usually ships in 2-12 days

0

-41

Subaru Robin 20B-62445-08

SPRING, THRO. ADJUST

$17.99

$

Usually ships in 2-12 days

0

-57

Subaru Robin 20B-62453-08

SCREW

$4.49

$

In Stock, Qty 5

0

-62

Subaru Robin 258-62554-08

FILTER, AIR

$2.99

$

In Stock, only 2 left!

0

-102

Subaru Robin 226-62580-08

FILTER, AIR

$9.49

$

Usually ships in 2-12 days

0

-158

Subaru Robin 20B-62542-08

O RING

$3.99

$

Usually ships in 2-12 days

0

-165

Subaru Robin 20B-62541-08

O RING

$4.49

$

In Stock, only 3 left!

0

-166

Subaru Robin 20B-62540-08

O RING SPACER

$15.99

$

In Stock, only 4 left!

0

-167

20B-62521-08

SPACER

$

$

Not available
