SXD 19PWM82 (1696862-00) - Snapper XD 82V 19" Walk-Behind Mower Handles Group Parts Diagram

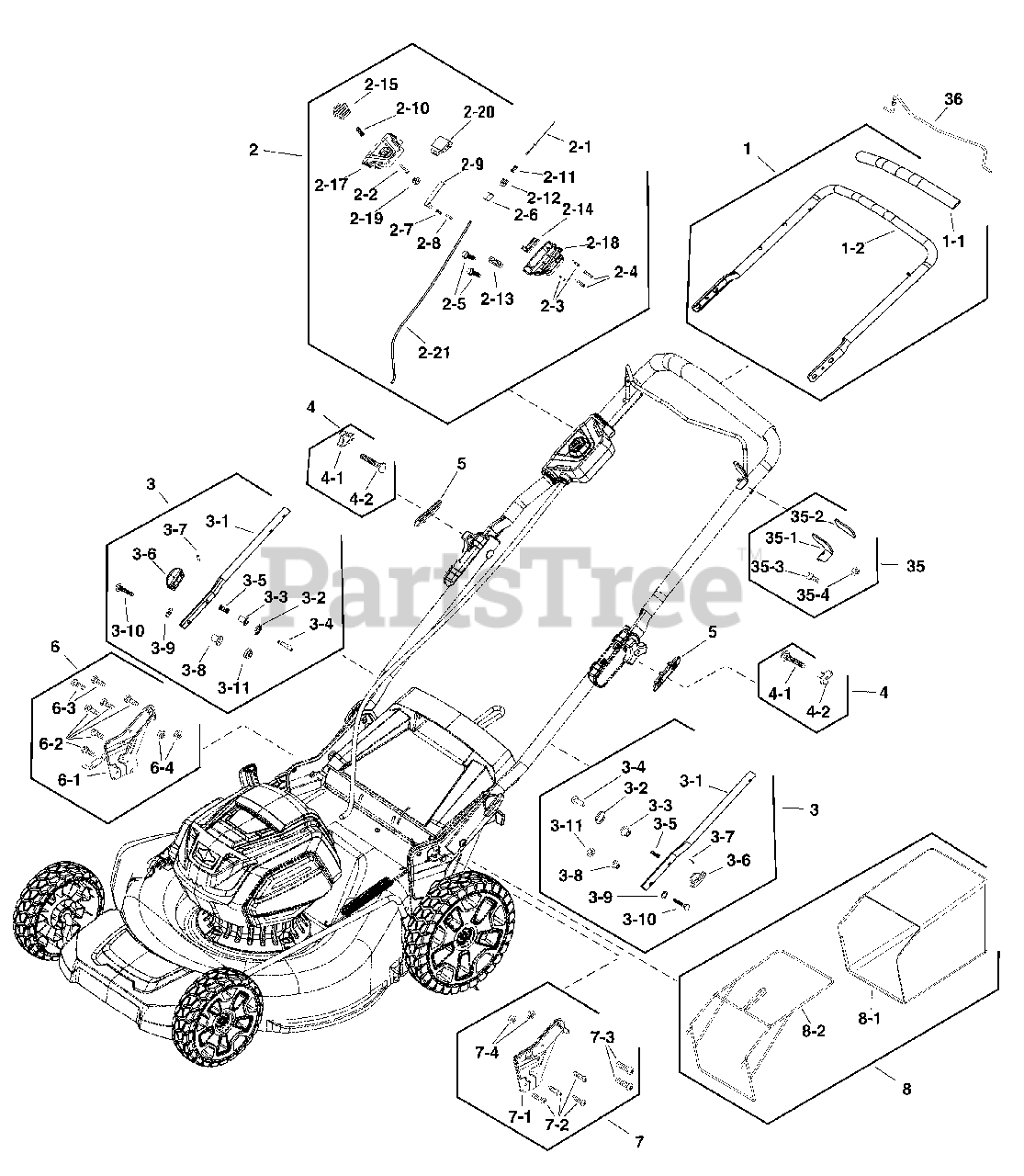

XD 82V 19" Walk-Behind Mower

Handles Group Parts Diagram

  • Title

1

Snapper 771419

KIT, UPPER HANDLE, NA

$131.99

$

Usually ships in 2-12 days

0

1-1

SPONGE

$

$

Not available

1-2

HANDLE, Upper

$

$

Not available

2

Snapper 771420

KIT, SWITCH BOX COMPONENT, NA

$56.99

$

In Stock, only 1 left!

0

2-1

Snapper 84003402

CABLE, Bail

$5.99

$

Usually ships in 2-12 days

0

2-3

SCREW

$

$

Not available

2-4

SCREW, Pan Torx Self Tap, ST4.2 x 20-C

$

$

Not available

2-5

SCREW ST4.2-16

$

$

Not available

2-6

SLIDER

$

$

Not available

2-7

PIN

$

$

Not available

2-8

SPRING

$

$

Not available

2-9

PLATE

$

$

Not available

2-10

SPRING

$

$

Not available

2-11

SPRING

$

$

Not available

2-12

SEAT

$

$

Not available

2-13

CLAMP

$

$

Not available

2-14

SLIDER

$

$

Not available

2-15

Snapper 84003403

BUTTON, Start

$2.49

$

Usually ships in 2-12 days

0

2-17

SWITCH BOX COVER

$

$

Not available

2-18

SWITCH BOX COVER

$

$

Not available

2-19

COVER

$

$

Not available

2-20

Snapper 84003405

SWITCH

$11.99

$

Usually ships in 2-12 days

0

2-21

HARNESS

$

$

Not available

3

Snapper 771458

KIT, Lower Handle

$50.99

$

Usually ships in 2-12 days

0

3-1

LOWER HANDLE

$

$

Not available

3-2

GASKET

$

$

Not available

3-3

INSERT

$

$

Not available

3-4

POST

$

$

Not available

3-5

SPRING

$

$

Not available

3-6

KNOB

$

$

Not available

3-7

PIN

$

$

Not available

3-8

BLOCK

$

$

Not available

3-9

WASHER, Flat

$

$

Not available

3-10

BOLT

$

$

Not available

3-11

NUT

$

$

Not available

4

Snapper 771422

KIT, HARDWARE

$8.99

$

Usually ships in 2-12 days

0

4-1

KNOB, M8

$

$

Not available

4-2

BOLT

$

$

Not available

5

Snapper 771423

KIT, SLEEVE

$4.49

$

Usually ships in 2-12 days

0

6

Snapper 771424

KIT, RIGHT BRACKET

$56.99

$

Usually ships in 2-12 days

0

6-1

BRACKET, Height Adjust

$

$

Not available

6-2

SCREW

$

$

Not available

6-3

BOLT

$

$

Not available

6-4

NUT

$

$

Not available

7

Snapper 771425

KIT, LEFT BRACKET

$54.99

$

Usually ships in 2-12 days

0

7-1

HEIGHT ADJUST, LEFT

$

$

Not available

7-2

SCREW

$

$

Not available

7-3

BOLT

$

$

Not available

7-4

NUT

$

$

Not available

8

Snapper 771426

KIT, GRASS BAGGER

$204.99

$

Usually ships in 2-12 days

0

8-1

BAG, Grass Catcher

$

$

Not available

8-2

FRAME

$

$

Not available

35

Snapper 771453

KIT, STOP

$5.99

$

Usually ships in 2-12 days

0

35-1

STOP

$

$

Not available

35-2

SPONGE

$

$

Not available

35-3

BOLT

$

$

Not available

35-4

NUT

$

$

Not available

36

Snapper 771454

KIT, LEVER

$27.99

$

Usually ships in 2-12 days

0
