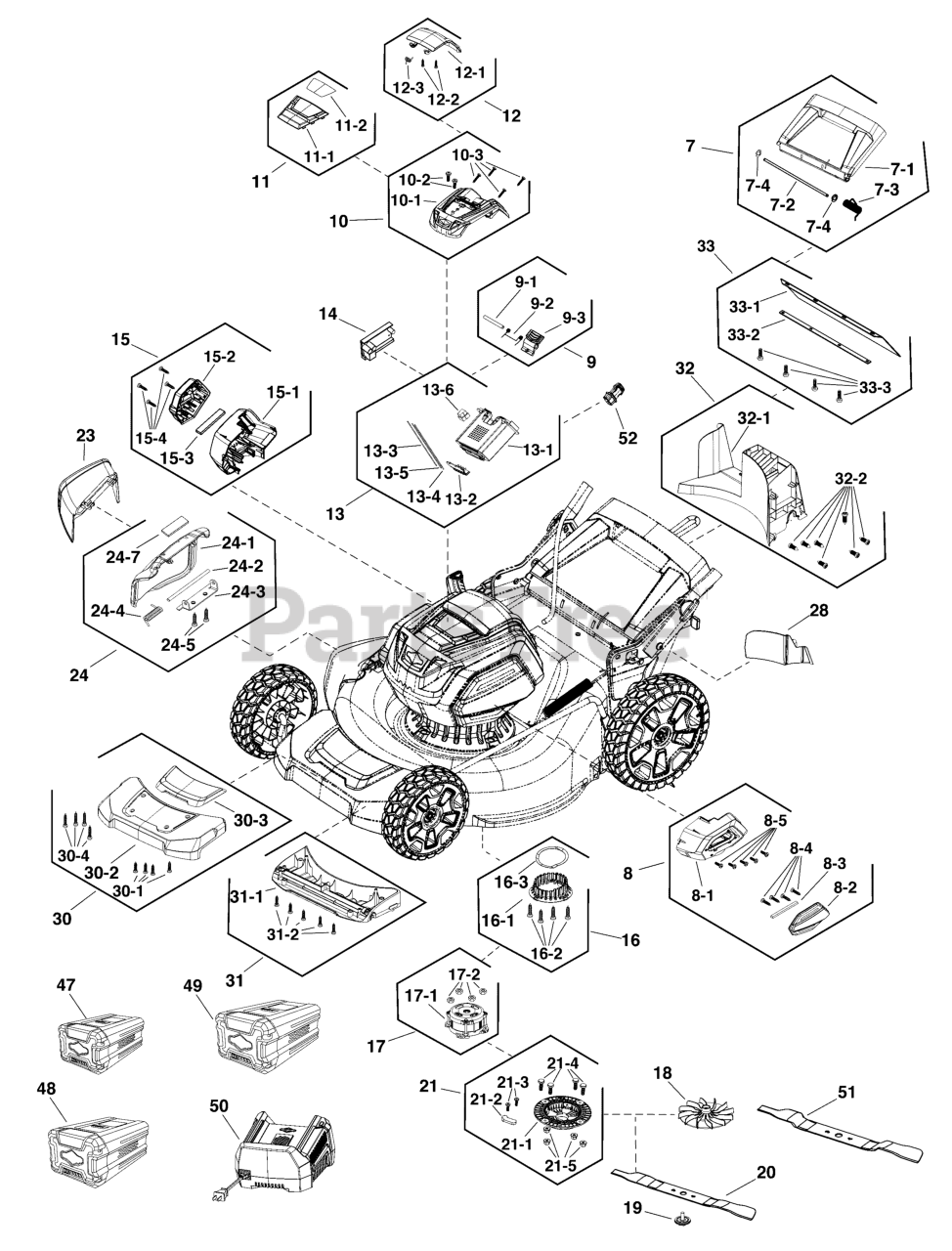

SXD 19SSWM82K (1688050-00) - Snapper XD 82V 19" Step Sense Walk-Behind Mower Deck & Battery Group Parts Diagram

XD 82V 19" Step Sense Walk-Behind Mower

Deck & Battery Group Parts Diagram

  • Title

7

Snapper 771427

KIT, Rear Cover

$57.99

$

In Stock, only 1 left!

0

7-1

COVER, Rear

$

$

Not available

7-2

PIN

$

$

Not available

7-3

SPRING

$

$

Not available

7-4

WASHER, Split

$

$

Not available

8

Snapper 771443

KIT, Left Cover

$40.99

$

Usually ships in 2-12 days

0

8-1

COVER, Left

$

$

Not available

8-2

HOUSING, Left

$

$

Not available

8-3

SCREEN, Dust

$

$

Not available

8-4

SCREW

$

$

Not available

8-5

SCREW, HexHead Self Tap, ST4.2 x 20-C

$

$

Not available

9

Snapper 770202

KIT, Battery Release

$4.99

$

Usually ships in 2-12 days

0

9-1

PIN

$

$

Not available

9-2

SPRING

$

$

Not available

9-3

BUTTON

$

$

Not available

10

Snapper 771439

KIT, Battery Cover

$38.99

$

Usually ships in 2-12 days

0

10-1

COVER, Top

$

$

Not available

10-2

SCREW

$

$

Not available

10-3

SCREW, HexHead Self Tap, ST4.2 x 20-C

$

$

Not available

11

Snapper 771468

KIT, Cover

$8.49

$

Usually ships in 2-12 days

0

11-1

TOP COVER

$

$

Not available

11-2

SHROUD

$

$

Not available

12

Snapper 771440

KIT, Top Cover

$53.99

$

Usually ships in 2-12 days

0

12-1

BAFFLE, Front

$

$

Not available

12-1

COVER, Battery

$

$

Not available

12-2

SCREW

$

$

Not available

12-2

SCREW

$

$

Not available

12-3

SPRING

$

$

Not available

13

Snapper 771469

KIT, Battery Compartment

$47.99

$

Usually ships in 2-12 days

0

13-1

HOUSING, Battery

$

$

Not available

13-2

TERMINAL

$

$

Not available

13-3

WIRE, Red

$

$

Not available

13-4

WIRE, Yellow

$

$

Not available

13-5

WIRE, Black

$

$

Not available

13-6

CONNECTOR

$

$

Not available

14

Snapper 84004173

KIT, PCB, NA

$207.99

$

Usually ships in 2-12 days

0

15

Snapper 770197

KIT, Cover, Right

$49.99

$

Usually ships in 2-12 days

0

15-1

COVER, Right

$

$

Not available

15-2

COVER, Right

$

$

Not available

15-3

SCREEN, Dust

$

$

Not available

15-4

SCREW

$

$

Not available

16

Snapper 771446

KIT, BASE

$35.99

$

Usually ships in 2-12 days

0

16-1

BASE

$

$

Not available

16-2

SCREW, HexHead Self Tap, ST4.2 x 20-C

$

$

Not available

16-3

SEAL

$

$

Not available

17

MOTOR ASSEMBLY

Note: (Order Wholegood)

$

$

Not available

17-1

MOTOR

$

$

Not available

17-2

NUT

$

$

Not available

18

Snapper 771450

KIT, Fan

$20.99

$

Usually ships in 2-12 days

0

19

Snapper 84003533

KIT, Bolt

$69.99

$

Usually ships in 2-12 days

0

20

Snapper 771451

KIT, Blade

$28.99

$

In Stock, only 1 left!

0

21

Snapper 771767

KIT, Motor Base

$29.99

$

Usually ships in 2-12 days

0

21-1

MOTOR BASE

$

$

Not available

21-2

DISC, Tension

$

$

Not available

21-3

SCREW

$

$

Not available

21-4

BOLT

$

$

Not available

21-5

NUT

$

$

Not available

23

Snapper 771455

KIT, Deflector

$37.99

$

In Stock, only 1 left!

0

24

Snapper 84004179

KIT, Cover, Side Discharge

$18.99

$

Usually ships in 2-12 days

0

24-1

SIDE DISCHARGE COVER

$

$

Not available

24-2

PIN

$

$

Not available

24-3

BRACKET

$

$

Not available

24-4

SPRING, Torsion

$

$

Not available

24-5

BOLT

$

$

Not available

24-7

LABEL

$

$

Not available

28

Snapper 771431

MULCH PLUG

$32.99

$

Usually ships in 2-12 days

0

30

Snapper 84004181

KIT, Front Panel

$31.99

$

Usually ships in 2-12 days

0

30-1

SCREW ST4.2-12

$

$

Not available

30-2

BUMPER

$

$

Not available

30-3

COVER, Bumper

$

$

Not available

30-4

SCREW, Pan Torx Self Tap, ST4.2 x 20-C

$

$

Not available

31

Snapper 84004182

KIT, Front Bulkhead

$

$

Currently unavailable

31-1

BAFFLE, Front

$

$

Not available

31-2

SCREW

$

$

Not available

32

BAFFLE, Rear

Note: (Order Wholegood)

$

$

Not available

32-1

BULKHEAD, Back

$

$

Not available

32-2

SCREW

$

$

Not available

33

Snapper 84004184

KIT, Rear Deflector

$29.99

$

Usually ships in 2-12 days

0

33-1

FLAP, Rear

$

$

Not available

33-2

BRACE

$

$

Not available

33-3

SCREW ST4.2-16

$

$

Not available

47

Snapper 1760266

* BATTERY, 2.0, 82V NA

Note: (Optional)

$218.99

$

Usually ships in 2-12 days

0

48

Snapper 1760265

* BATTERY, 4.0, 82V NA

Note: (Optional)

$370.99

$

Usually ships in 2-12 days

0

49

Snapper 1760966

* BATTERY, 5.0, 82V NA
(Superseded to 1697426)

Note: (Optional)

$478.99

$

Usually ships in 2-12 days

0

50

Snapper 1760263

* CHARGER, Battery, NA

Note: (Optional)

$119.99

$

In Stock, only 1 left!

0

51

Snapper 84004202

BLADE, Mulching, 19"

Note: (Optional)

$30.99

$

Usually ships in 2-12 days

0

52

Snapper 84002064

KEY, Safety

$2.99

$

Usually ships in 2-12 days

0

--

Snapper 770294

REMOTE BELT FOR BATTERY

Note: (Optional, Not Shown)

$186.99

$

Usually ships in 2-12 days

0
