SXD C 82 (1696869-00) - Snapper XD 82V Cultivator Power Head Group Parts Diagram

XD 82V Cultivator

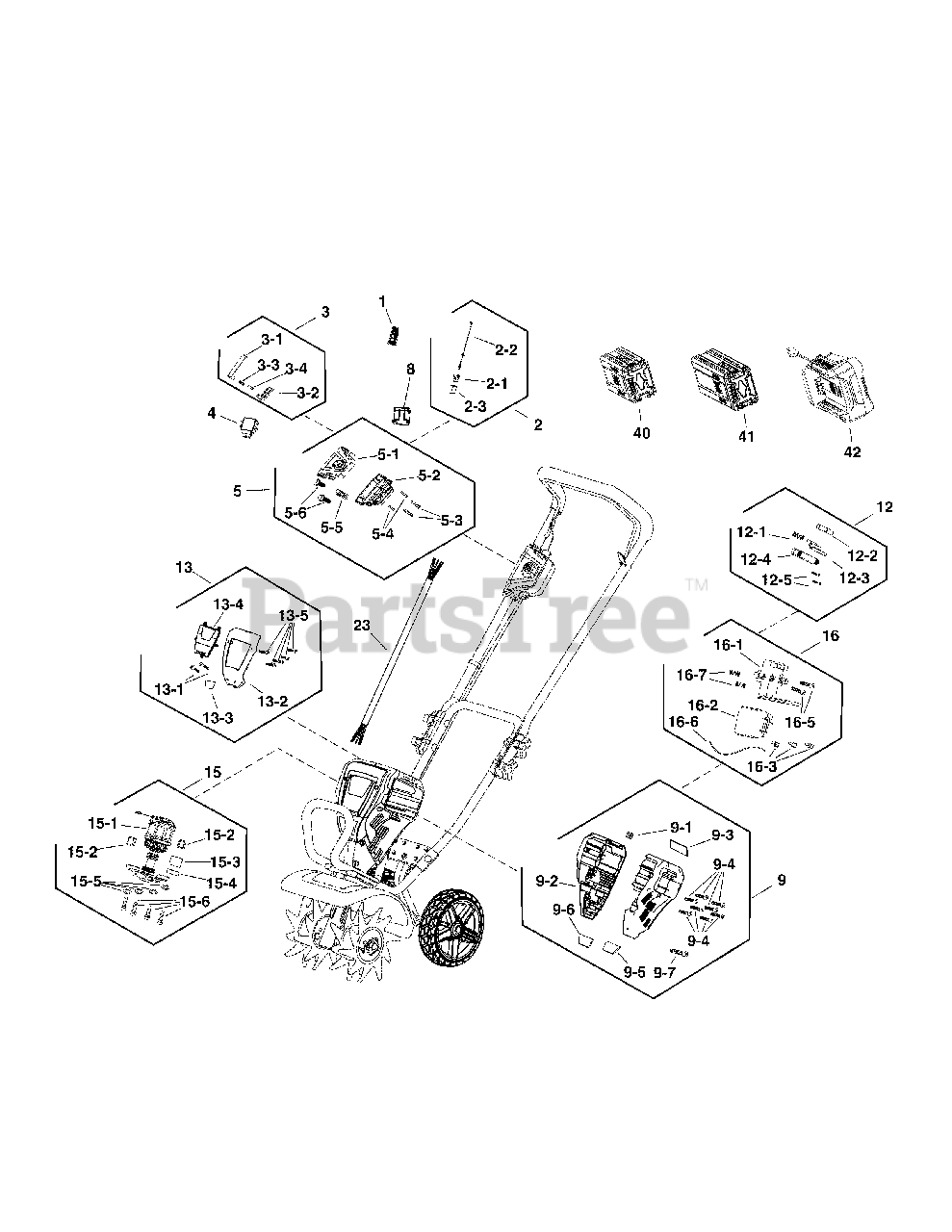

Power Head Group Parts Diagram

  • Title

1

Snapper 771034

SPRING

$2.99

$

Usually ships in 2-12 days

0

2

Snapper 771035

KIT, CABLE ASSEMBLY

Note: (Incl. Ref. 2-1 through 2-3)

$8.49

$

Usually ships in 2-12 days

0

2-1

SPRING

$

$

Not available

2-2

Snapper 84003406

CABLE, Bail

$7.49

$

Usually ships in 2-12 days

0

2-3

BLOCK

$

$

Not available

3

Snapper 771036

KIT, SLIDER ASSEMBLY

$4.99

$

Usually ships in 2-12 days

0

3-1

PLATE

$

$

Not available

3-2

BLOCK

$

$

Not available

3-3

SPRING

$

$

Not available

3-4

PIN

$

$

Not available

4

Snapper 771037

ADAPTER, HARNESS

$13.99

$

Usually ships in 2-12 days

0

5

Snapper 771069

KIT, STARTER ASSEMBLY

$24.99

$

Usually ships in 2-12 days

0

5-1

COVER, Bottom

$

$

Not available

5-2

COVER, Bottom

$

$

Not available

5-3

SPRING

$

$

Not available

5-4

SCREW

$

$

Not available

5-5

CLAMP

$

$

Not available

5-6

SCREW

$

$

Not available

8

Snapper 771039

SWITCH INSERT

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 771070

KIT, MOTOR HOUSING

$118.99

$

Usually ships in 2-12 days

0

9-1

NUT

$

$

Not available

9-2

HOUSING, Right

$

$

Not available

9-3

LABEL

$

$

Not available

9-4

SCREW

$

$

Not available

9-5

SPONGE

$

$

Not available

9-6

SPONGE

$

$

Not available

9-7

SCREW

$

$

Not available

12

Snapper 770164

KIT, BATTERY RELEASE BUTTON

$7.99

$

Usually ships in 2-12 days

0

12-1

SPRING

$

$

Not available

12-2

PIN

$

$

Not available

12-3

BUTTON, Battery Releasee

$

$

Not available

12-4

PAD

$

$

Not available

12-5

SCREW

$

$

Not available

13

Snapper 771042

KIT, TOP COVER

$33.99

$

Usually ships in 2-12 days

0

13-1

SCREW

$

$

Not available

13-2

COVER, DECORATIVE

$

$

Not available

13-3

LABEL

$

$

Not available

13-4

COVER, Battery

$

$

Not available

13-5

SCREW

$

$

Not available

15

Snapper 771043

KIT, MOTOR ASSEMBLY

$247.99

$

Usually ships in 2-12 days

0

15-1

MOTOR

$

$

Not available

15-2

SEAL

$

$

Not available

15-3

AXLE SLEEVE

$

$

Not available

15-4

CLAMP

$

$

Not available

15-5

WASHER, Spring

$

$

Not available

15-6

BOLT

$

$

Not available

16

Snapper 771071

KIT, PCB ASSEMBLY

Note: (Incl. Ref. 16-1 through 16-7)

$231.99

$

Usually ships in 2-12 days

0

16-1

BATTERY HOLDER

$

$

Not available

16-2

PCB

$

$

Not available

16-3

TERMINAL

$

$

Not available

16-5

SCREW

$

$

Not available

16-6

WIRE, Yellow

$

$

Not available

16-7

SPRING

$

$

Not available

23

Snapper 771048

WIRING HARNESS

$12.99

$

Usually ships in 2-12 days

0

40

Snapper 1760266

* BATTERY, 2.0, 82V NA

Note: (Option)

$218.99

$

In Stock, only 1 left!

0

41

Snapper 1760265

* BATTERY, 4.0, 82V NA

Note: (Option)

$370.99

$

Usually ships in 2-12 days

0

42

Snapper 1760263

* CHARGER, Battery, NA

Note: (Option)

$119.99

$

In Stock, only 1 left!

0

--

Snapper 770294

REMOTE BELT FOR BATTERY

Note: (Not Shown)

$197.99

$

Usually ships in 2-12 days

0
