SXD WM82 (80076024) - Snapper XD 82V 21" Walk-Behind Mower Handles Group Parts Diagram

XD 82V 21" Walk-Behind Mower

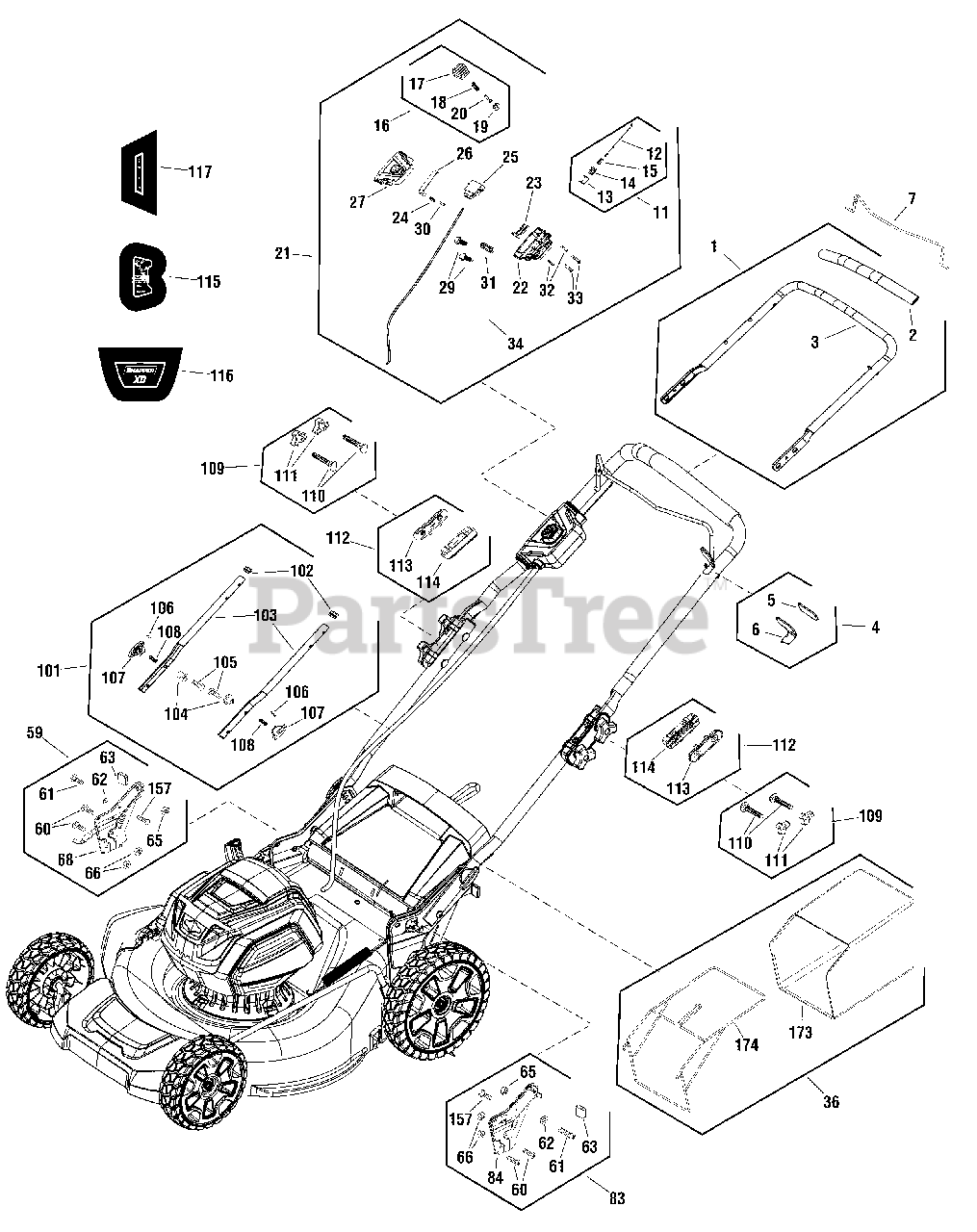

Handles Group Parts Diagram

  • Title

1

Snapper 770168

KIT, Upper Handle, NA

$166.99

$

Usually ships in 2-12 days

0

2

GRIP, Foam

$

$

Not available

3

HANDLE, Upper

$

$

Not available

4

Snapper 770170

KIT, Stop, Bail

$5.99

$

Usually ships in 2-12 days

0

5

SPONGE

$

$

Not available

6

BRACKET

$

$

Not available

7

Snapper 770169

KIT, Bail

$43.99

$

In Stock, only 2 left!

0

11

Snapper 770171

KIT, Cable

$10.99

$

Usually ships in 2-12 days

0

12

Snapper 84003406

CABLE, Bail

$7.49

$

Usually ships in 2-12 days

0

13

BRACKET

$

$

Not available

14

BLOCK

$

$

Not available

15

SPRING

$

$

Not available

16

Snapper 770173

KIT, Button, Start

$6.99

$

Usually ships in 2-12 days

0

17

Snapper 84003407

KIT, Speed Control

$5.49

$

Usually ships in 2-12 days

0

18

SPRING

$

$

Not available

19

GASKET

$

$

Not available

20

SCREW

$

$

Not available

21

Snapper 770172

KIT, Control Panel

$42.99

$

Usually ships in 2-12 days

0

22

COVER, Bottom

$

$

Not available

23

BRACKET

$

$

Not available

24

SPRING

$

$

Not available

25

Snapper 84003409

SWITCH

$15.99

$

In Stock, only 1 left!

0

26

PLATE

$

$

Not available

27

COVER, Top

$

$

Not available

29

SCREW

$

$

Not available

30

PIN

$

$

Not available

31

CLAMP

$

$

Not available

32

SCREW

$

$

Not available

33

SCREW

$

$

Not available

34

WIRE, Yellow

$

$

Not available

36

Snapper 770182

GRASS CATCHER ASSEMBLY

$307.99

$

In Stock, only 1 left!

0

173

BAG, Grass Catcher

$

$

Not available

174

FRAME

$

$

Not available

59

Snapper 770178

KIT, Height Adjust, Right, NA

$53.99

$

Usually ships in 2-12 days

0

60

BOLT

$

$

Not available

61

BOLT

$

$

Not available

62

GASKET

$

$

Not available

63

BUMPER

$

$

Not available

65

NUT

$

$

Not available

66

NUT

$

$

Not available

68

BRACKET, Height Adjust

$

$

Not available

157

SCREW

$

$

Not available

83

Snapper 770179

KIT, Height Adjust, Left

$53.99

$

Usually ships in 2-12 days

0

84

BRACKET, Height Adjust

$

$

Not available

60

BOLT

$

$

Not available

61

BOLT

$

$

Not available

62

GASKET

$

$

Not available

63

BUMPER

$

$

Not available

65

NUT

$

$

Not available

66

NUT

$

$

Not available

157

SCREW

$

$

Not available

101

Snapper 770177

KIT, Lower Handle

$46.99

$

In Stock, only 1 left!

0

102

CAP

$

$

Not available

103

HANDLE, Lower

$

$

Not available

104

BUSHING

$

$

Not available

105

SCREW

$

$

Not available

106

PIN

$

$

Not available

107

KNOB

$

$

Not available

108

SPRING

$

$

Not available

109

Snapper 770175

KIT, Hardware

$6.49

$

In Stock, Qty 17

0

110

BOLT

$

$

Not available

111

KNOB

$

$

Not available

112

Snapper 770176

KIT, Handle Bracket

$13.99

$

Usually ships in 2-12 days

0

113

BRACKET

$

$

Not available

114

BRACKET

$

$

Not available

115

Snapper 770491

DECAL, Start

$

$

Currently unavailable

116

Snapper 770492

DECAL, XD Shroud

$

$

Currently unavailable

117

Snapper 770496

DECAL, Charger

$

$

Currently unavailable
