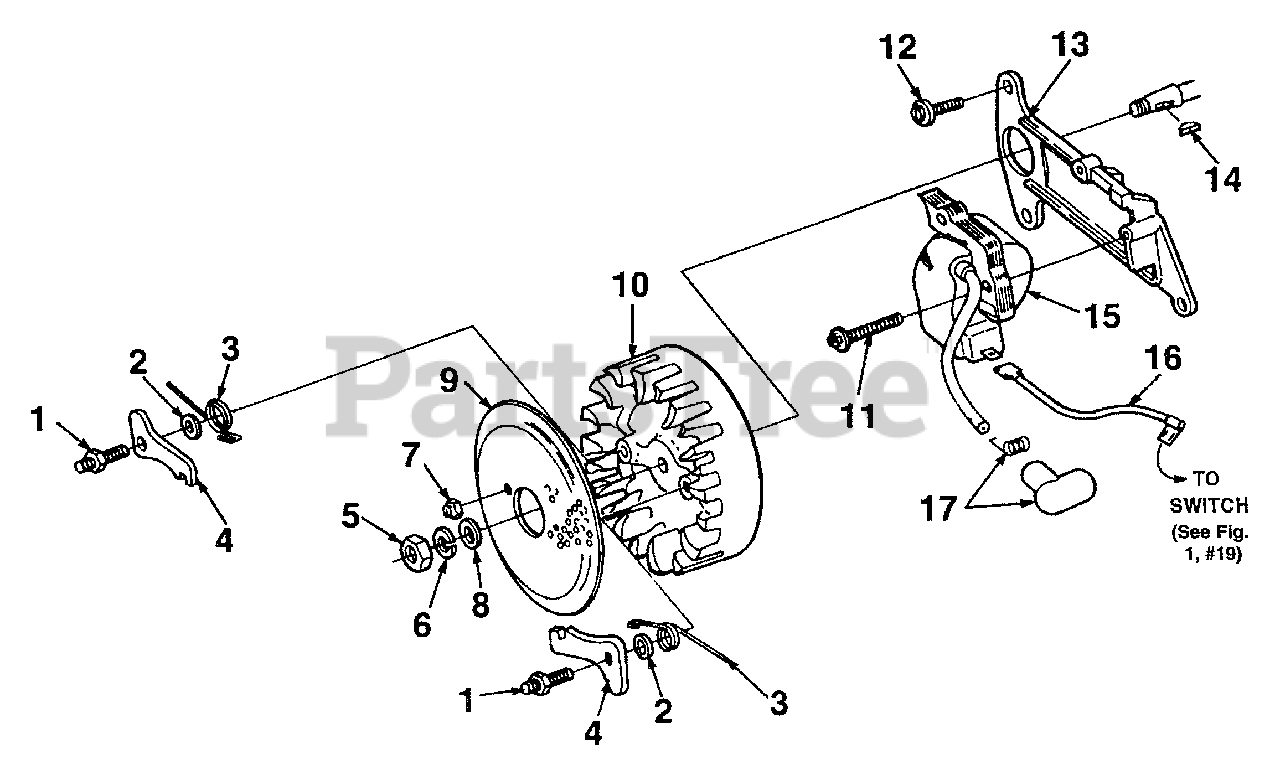

SXL-AO (UT-10045-E) - Homelite Chainsaw Ignition Parts Diagram

Chainsaw

Ignition Parts Diagram

  • Title

1

Homelite 58757E

STUD-Shoulder

$

$

Not available

2

Homelite 70901

WASHER-Lock

$

$

Not available

3

Homelite 01101

SPRING-Starter Pawl

$

$

Not available

4

Homelite 58756A

PAWL-Starter

$

$

Currently unavailable

5

Homelite 81117

NUT-Hex (5J/16-24)

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 83002

WASHER-Lock (5/16)
(Superseded to 653671)

$2.99

$

Usually ships in 3-7 days

0

7

Homelite 81206

NUT-Center Lock (#10-32)
(Superseded to 671079001)

$1.49

$

In Stock, Qty 16

0

8

Homelite 84056

WASHER-Flat (5/16)
(Superseded to UP06541)

$3.49

$

Usually ships in 3-7 days

0

9

Homelite 58765

SCREEN-Starter

$

$

Not available

10

Homelite 94588

ROTOR-Magneto

$

$

Not available

11

Homelite 82248

SCREW-Hex Washer Hd. (8-32 X 3/4)

$

$

Not available

12

Homelite 80899

SCREW-Hex Hd. (12-24 X 9/16)

$

$

Not available

13

Homelite 943261

PLATE-Ignition Coil Mtg. (Solid State)

$

$

Currently unavailable

14

Homelite 75078

KEY-Woodruff
(Superseded to UP07068)

$

$

Not available

15

Homelite 94589AS

MODULE & CORE

$

$

Not available

16

Homelite A94850

LEAD-Ground (Solid State)

$

$

Not available

17

Homelite A33055

TERMINAL-High Tension

$

$

Not available
