SXL-AO (UT-10045-E) - Homelite Chainsaw Throttle Handle & Carburetor Parts Diagram

Chainsaw

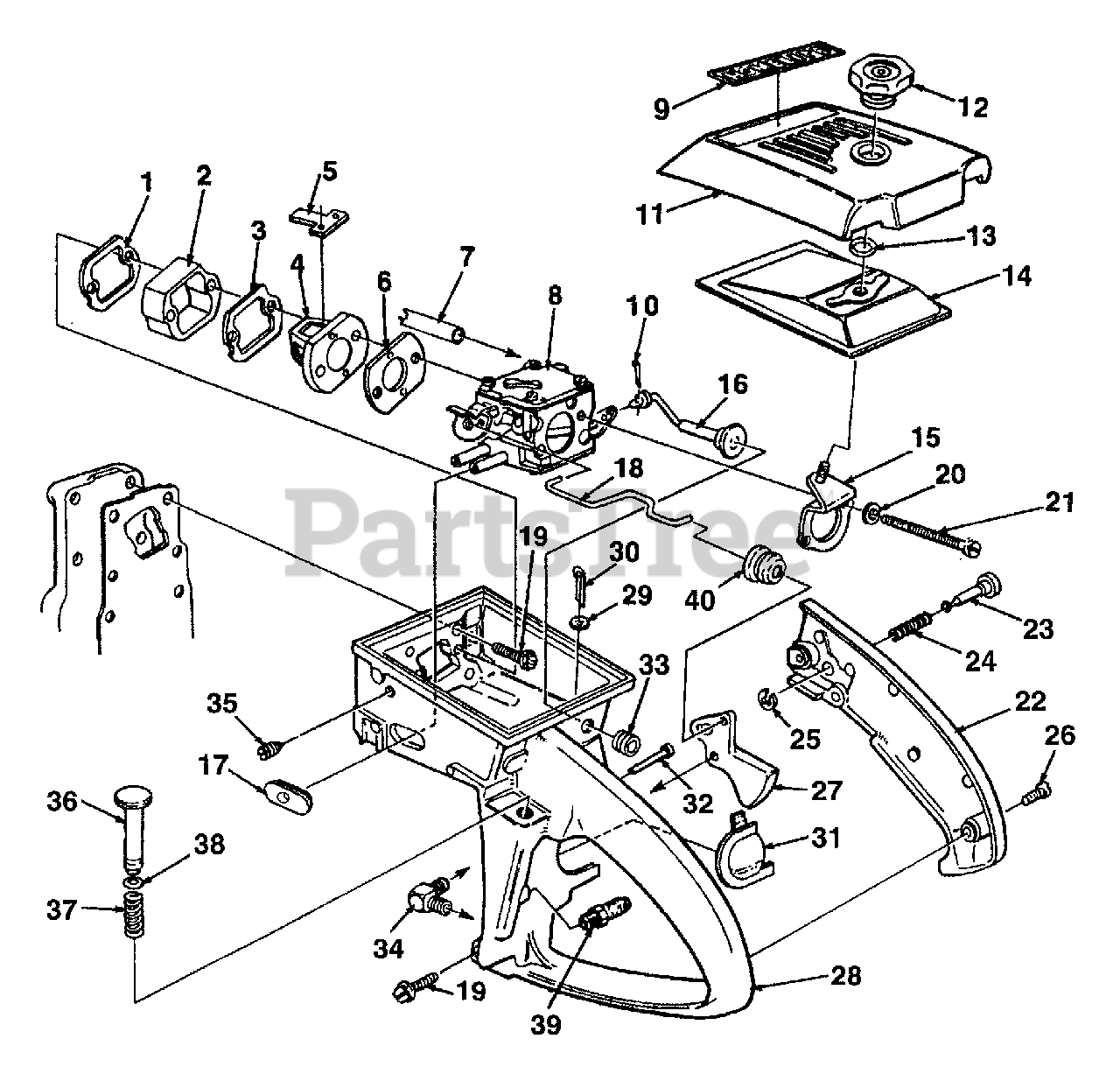

Throttle Handle & Carburetor Parts Diagram

  • Title

1

Homelite 59274

GASKET-Spacer

$

$

Not available

2

Homelite 59718

SPACER-Heat Dam

$

$

Not available

3

Homelite 63260A

RETAINER-Reed Valve
(Superseded to UP06981)

$12.99

$

Usually ships in 3-7 days

0

4

Homelite 63253

SEAT-Reed Valve

$

$

Not available

5

Homelite 59678B

VALVE-Reed
(Superseded to UP05942)

$

$

Not available

6

Homelite 59722

GASKET-Carburetor

$

$

Not available

7

Homelite 7031037

LINE-Fuel (9 1/4")

$

$

Currently unavailable

8

Homelite A68371C

CARBURETOR-Walbro

$

$

Not available

Homelite A07048

CARBURETOR-Zama
(Superseded to A68371C)

$

$

Not available

9

Homelite 06738

LABEL-Homelite

$

$

Currently unavailable

10

Homelite 86324

PIN-Cotter

$

$

Not available

11

Homelite 587733A

COVER-Air Filter

$

$

Not available

12

Homelite A65272

NUT-Air Filter Cover
(Superseded to UP05611)

$36.99

$

Usually ships in 3-7 days

0

13

Homelite 58319A

RING-Retaining

$

$

Not available

14

Homelite 63589A

ELEMENT-Air Filter
(Superseded to UP06807)

$

$

Not available

15

Homelite A59822B

BRACKET-Mounting

$

$

Not available

16

Homelite 681301

ROD-Choke

$

$

Not available

17

Homelite A07047

GROMMET KIT

$

$

Not available

18

Homelite 59763

ROD-Throttle

$

$

Not available

19

Homelite 80891

SCREW-Hex (12-24 X 7/8")

$

$

Not available

20

Homelite 83046

WASHER-Lock (#10)

$

$

Not available

21

Homelite 80921

SCREW-Hex (10-32 X 2 11/16")

$

$

Not available

22

UNKNOWN

$

$

Not available

?22A

Homelite 5877912

COVER-Throttle Handle

Note: (UT10712); (Painted Casting Only. No Additional Parts Included.)

$

$

Currently unavailable

?22B

Homelite A06727

COVER-Throttle Handle

$

$

Currently unavailable

Homelite 67752

BUSHING-Pin

Note: (Not Shown)

$

$

Not available

23

Homelite 95671

PIN-Throttle Latch
(Superseded to UP05997)

$

$

Not available

24

Homelite 58405

SPRING-Throttle Latch

$

$

Not available

25

Homelite 58409

RING-Retaining

$4.49

$

Usually ships in 3-7 days

0

26

Homelite 80560

SCREW-Pan (8-32 X 1/2")

$

$

Not available

27

Homelite 58859A

TRIGGER-Throttle

$

$

Not available

28

UNKNOWN

$

$

Not available

?28A

Homelite 5924412

THROTTLE HANDLE

Note: (UT10712) (Painted Casting Only. No Additional Parts Included.)

$

$

Currently unavailable

?28B

Homelite A06729

THROTTLE HANDLE

$

$

Currently unavailable

29

Homelite 63290

WASHER-Felt

$

$

Not available

30

Homelite 86301

PIN-Cotter

$

$

Not available

31

Homelite 93209

SHIELD-Spark Plug
(Superseded to PS93209)

$17.99

$

Usually ships in 3-7 days

0

32

Homelite 94142

PIN, Oil Plunger Retaining

$

$

Not available

33

Homelite A59011

VALVE-Check

$

$

Currently unavailable

34

Homelite 63302B

SCREW-Idle

$

$

Not available

35

Homelite 58362

GROMMET KIT

$

$

Not available

36

Homelite A93783

PLUNGER-Spring
(Superseded to UP06578)

$

$

Currently unavailable

37

Homelite 59293

SPRING-Compression

$

$

Not available

38

Homelite 74388

"O" RING
(Superseded to UP06601)

$5.99

$

Usually ships in 3-7 days

0

39

Homelite A59818

VALVE-Check

$12.99

$

Usually ships in 3-7 days

0

40

Homelite 67634

BOOT- Throttle Rod

$

$

Not available
