SXL-AO (UT-10712) - Homelite Old Blue Chainsaw Engine & Fuel Tank Parts Diagram

Old Blue Chainsaw

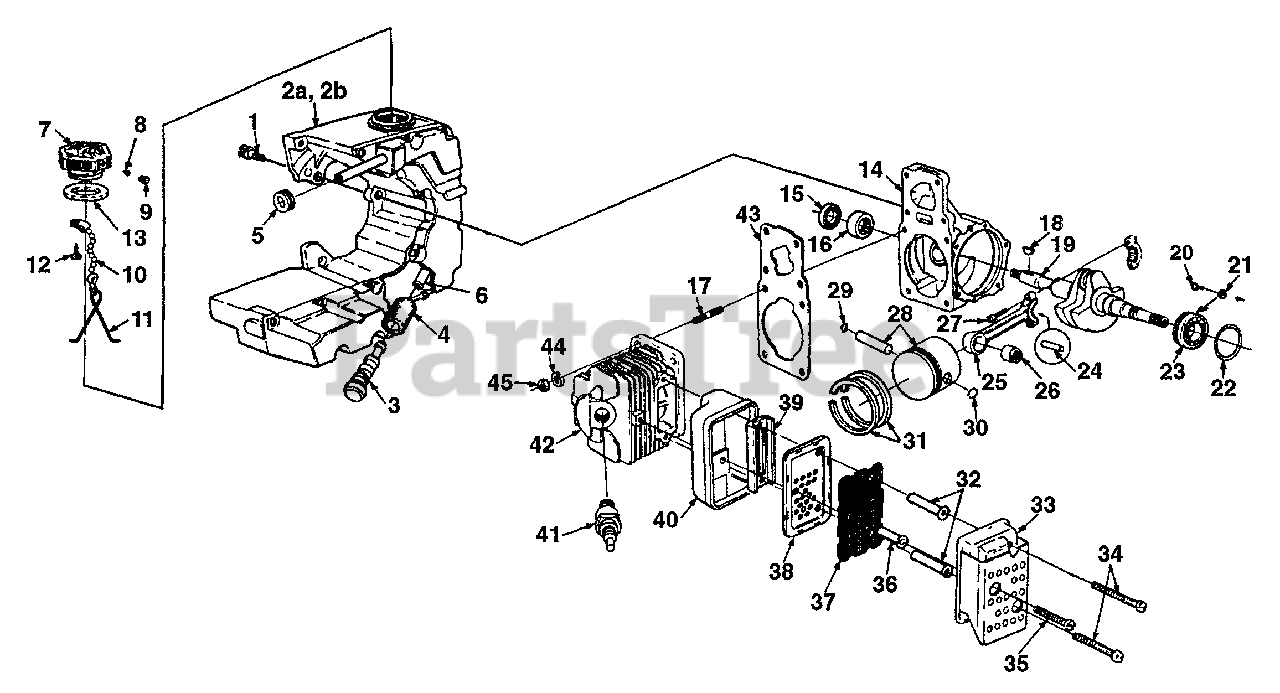

Engine & Fuel Tank Parts Diagram

  • Title

1

Homelite 63407

SCREW-Shoulder

$

$

Not available

2A

Homelite A639027

FUEL TANK

Note: (UT10712) (Fuel Tank Only (Old Blue). No Additional Parts Included.)

$

$

Not available

2B

Homelite A68345B

FUEL TANK

$

$

Not available

3

Homelite A69923

FILTER-Fuel
(Superseded to UP06560)

$

$

Not available

4

Homelite 64083

FELT FILTER

$

$

Not available

5

Homelite 68049

GROMMET

$

$

Currently unavailable

6

Homelite 7031037

TUBING-Rubber (9 1/4")

$

$

Currently unavailable

7

Homelite A694991

CAP-Fuel Filler
(Superseded to UP06559)

$

$

Not available

8

Homelite 69451

VALVE Check

$

$

Not available

9

Homelite 69454

FILTER-Fuel Cap

$

$

Not available

10

Homelite 69502

CHAIN-Bead

$

$

Not available

11

Homelite 96535

RETAINER

$

$

Not available

12

Homelite 82256A

SCREW-Pan Hd. (#6 X 1/4")

$

$

Not available

13

Homelite 69501

GASKET-Fuel Filler Cap

$

$

Not available

14

Homelite A65736

CRANKCASE

$

$

Not available

15

Homelite 12282A

SEAL
(Superseded to UP07436)

$

$

Not available

16

Homelite 58956

BEARING

$

$

Not available

17

Homelite 96127A

STUD-Cylinder

$

$

Currently unavailable

18

Homelite 75078

KEY-Woodruff
(Superseded to UP07068)

$

$

Not available

19

Homelite 93595

CRANKSHAFT
(Superseded to 634981)

$616.99

$

Usually ships in 3-7 days

0

20

Homelite 70306

SCREW-Torx

$

$

Not available

21

Homelite 59705

WASHER-Lock

$

$

Not available

22

Homelite 58319A

RING-Retaining

$

$

Not available

23

Homelite 58190

BEARING-Ball

$

$

Not available

24

Homelite A69054

ROLLER SET (31)

$

$

Currently unavailable

25

Homelite A63477A

ROD-Connecting

$

$

Currently unavailable

26

Homelite 93369

BEARING

$

$

Not available

27

Homelite 69919

SCREW-Cap Soc. Hd.

$

$

Not available

28

Homelite A68438

PISTON & PIN
(Superseded to UP07099)

$

$

Not available

29

Homelite 75120

RING-Retaining

$

$

Not available

30

Homelite 64813

RING-Retaining

$5.99

$

Usually ships in 3-7 days

0

31

Homelite 594361A

PISTON RING
(Superseded to UP06805)

$

$

Not available

?B

Homelite A94219A

MUFFLER ASSEMBLY

$

$

Currently unavailable

32

Homelite 9398301

SPACER-Muffler

$1.99

$

Usually ships in 3-7 days

0

33

Homelite A95988

CAP-Muffler & Shield

$

$

Not available

34

Homelite 94128

SCREW-Hex Hd. (12-24 X 2 1/4")

$

$

Not available

35

Homelite 94129

SCREW-Hex Hd. (12-24 X 1 7/8")

$4.49

$

Usually ships in 3-7 days

0

36

Homelite 9398302

SPACER-Muffler

$

$

Not available

37

Homelite 93979

SCREEN-Spark Arrestor

$

$

Not available

38

Homelite 93980

BAFFLE-Muffler

$

$

Not available

39

Homelite 94133A

PLATE-Muffler

$

$

Currently unavailable

40

Homelite 93981

BODY-Muffler

$

$

Not available

41

Homelite 63547S

SPARK PLUG (CJ8)

$11.99

$

Usually ships in 3-7 days

0

42

Homelite A69714

CYLINDER
(Superseded to UP06593)

$

$

Not available

43

Homelite 59771

GASKET - Cylinder

$

$

Not available

44

Homelite 83061

WASHER-Lock (1/4")

$

$

Not available

45

Homelite 96212

NUT (1/4 - 28)

$

$

Not available
