SYS 300 PE (56A-739E195) - MTD Pro Spreader/Sprayer Tank And Frame Parts Diagram

Pro Spreader/Sprayer

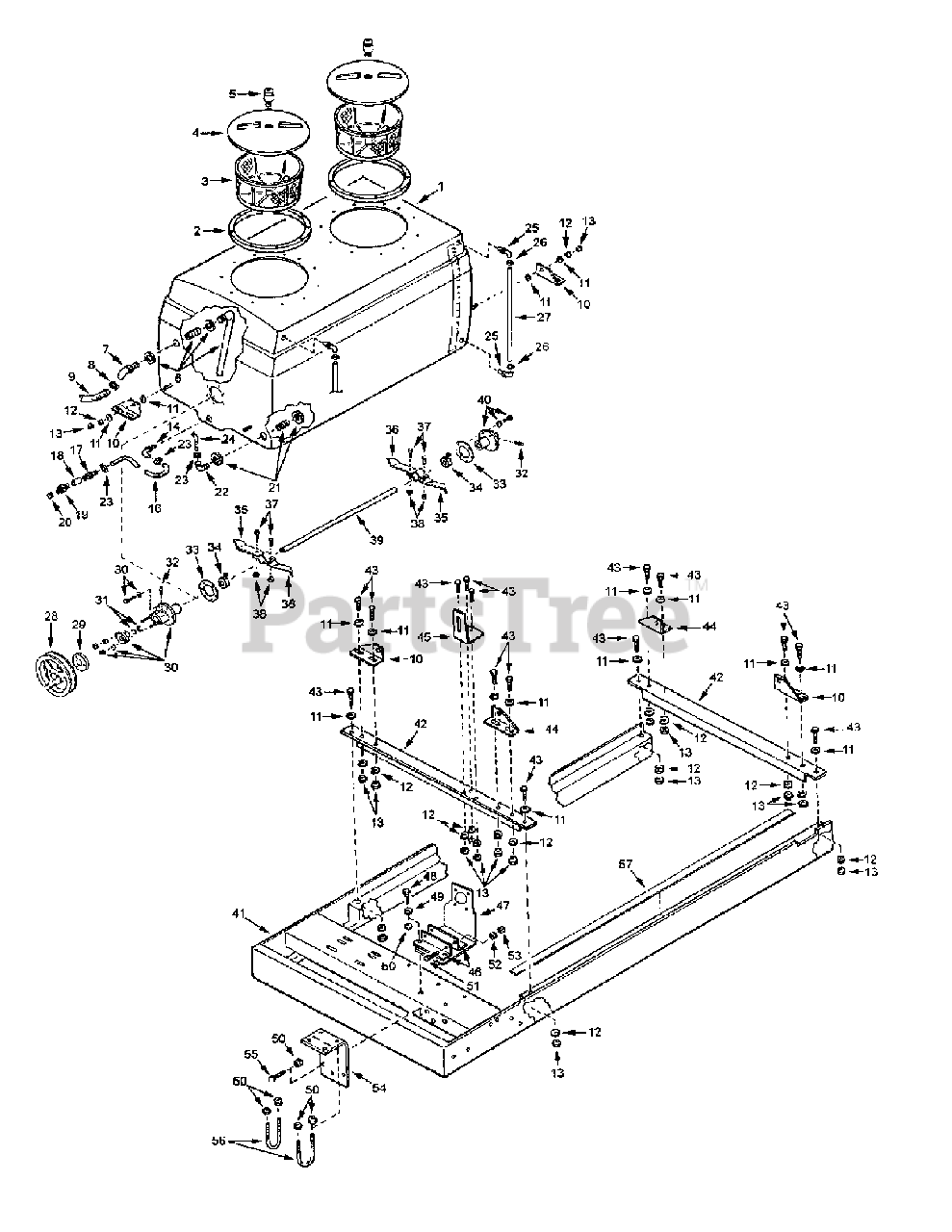

Tank And Frame Parts Diagram

  • Title

1

MTD 00024568

300-Gallon Fiberglass Tank

Note: NLA

$

$

Not available

2

MTD 00022229

Fillwell, 16, Threaded

Note: NLA

$

$

Currently unavailable

3

MTD 00014343

Strainer Basket, 16"

$

$

Not available

4

MTD 00023611

Fillwell Cover, 16" Threaded

Note: NLA

$

$

Currently unavailable

5

MTD 00023612

Vent for 16", Threaded

Note: NLA

$

$

Currently unavailable

6

MTD 00031271

Suction Assembly

Note: NLA

$

$

Currently unavailable

7

MTD 00018466

Elbow, 90°, 1-1/4 MPT x 1-1/4 Hose Barb

Note: NLA

$

$

Not available

8

MTD 01000218

Hose Clamp, Wormgear, 1-1/4-1-1/2

$

$

Not available

9

MTD 00033305

Hose, 1-1/4" Spiraflex (Sold per foot)

Note: 3.67ft

$

$

Not available

10

MTD 01003375

Mounting Bracket, Tank

$

$

Not available

11

MTD 00006168

Flat Washer, 3/8
(Superseded to 936-3015)

$4.49

$

In Stock, only 3 left!

0

12

MTD 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

13

MTD 912-3017

Hex Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

14

MTD 00026073

Elbow, 90°.

Note: NLA

$

$

Currently unavailable

16

MTD 00033300

Hose, 3/4" Spiraflex (Sold per foot)

Note: 10-1/2ft

$

$

Not available

17

MTD 00003011

Hose Barb, 3/4 MPT x 3/4 Hose

$

$

Not available

18

MTD 00019013

Ball Valve 3/4"

$

$

Not available

19

MTD 00006303

Adapter, 3/4 MPT x 3/4 NH(M), Brass

$14.99

$

In Stock, only 2 left!

0

20

MTD 00012664

Hose Cap, 3/4 NH(F), Brass

$6.99

$

In Stock, only 1 left!

0

20

MTD 00007595

Hose Washer, 3/4 Package of 10

$7.99

$

In Stock, only 1 left!

0

21

MTD 00031282

Return Assembly

Note: NLA

$

$

Currently unavailable

22

MTD 00002909

Elbow, 90°, 1 MPT x 1/2 Hose Barb

$

$

Not available

23

MTD 01000216

O-Clamp, 7/8" for 1/2" Hose

$

$

Not available

24

MTD 00030918

Hose, 5/8" PVC (Sold per foot)

Note: 5-3/4ft

$

$

Not available

25

MTD 00026069

Elbow, 90°.

Note: NLA

$

$

Currently unavailable

26

MTD 01000215

Hose Clamp

$

$

Not available

27

MTD 00027243

Sight Gauge

Note: NLA

$

$

Currently unavailable

28

MTD 00018561

Sheave

Note: NLA

$

$

Not available

29

MTD 00017575

Sheave Bushing

Note: NLA

$

$

Not available

30

MTD 00027244

Stuffing Box

Note: NLA

$

$

Currently unavailable

31

MTD 00031809

Packing

Note: NLA

$

$

Currently unavailable

32

MTD 00031203

Grease Zerk

Note: NLA

$

$

Currently unavailable

33

MTD 00031214

Gasket

Note: NLA

$

$

Currently unavailable

34

MTD 00026112

Collar

Note: NLA

$

$

Currently unavailable

35

MTD 00026116

Agitator Paddle, R.H.

Note: NLA

$

$

Currently unavailable

36

MTD 00026115

Agitator Paddle, L.H.

Note: NLA

$

$

Currently unavailable

37

MTD 00031488

Cap Screw

$3.99

$

Usually ships in 3-6 days

0

38

MTD 712-0324

Hex Nut

$3.99

$

In Stock, Qty 20+

0

39

MTD 00026117

Agitator Shaft

Note: NLA

$

$

Currently unavailable

40

MTD 00031206

End Bearing Assembly

Note: NLA

$

$

Currently unavailable

41

MTD 01003463

300 Gallon Frame, Fiberglass Sprayer

Note: NLA

$

$

Not available

42

MTD 01003366

Crossmember

Note: NLA

$

$

Not available

43

MTD 00006144

Cap Screw, 3/8-16 x 1 Hex Hd

$6.99

$

Usually ships in 3-6 days

0

44

MTD 01003376

Mounting Bracket, Tank

$

$

Not available

45

MTD 01003372

Idler Bracket

$

$

Not available

46

MTD 01003369

Pump Base, D-50 Pump

$

$

Not available

47

MTD 01003374

Pump Bracket

$

$

Not available

48

MTD 00012180

Cap Screw, 5/16-18 x 1 Hex Hd.

$

$

Not available

49

MTD 00009812

Flat Washer, 5/16

$

$

Not available

50

MTD 00012165

Hex Nut, 5/16-18 Nylock

$4.99

$

In Stock, only 1 left!

0

51

MTD 00005747

Cap Screw, 7/16-14 x 2-1/2 Hex Hd.

$

$

Not available

52

MTD 00005762

Lock Washer, 7/16

$

$

Not available

53

MTD 912-3019

Hex Nut, 7/16-14
(Superseded to 712-3019)

$6.99

$

In Stock, only 1 left!

0

54

MTD 01003368

Manifold Mount

$

$

Not available

55

MTD 00012179

Cap Screw, 5/16-18 x 3/4 Hex Hd.

$3.49

$

Usually ships in 3-6 days

0

56

MTD 00009670

U-Bolt 5/16-18 x 2 x 2-11/16

$2.99

$

In Stock, only 1 left!

0

57

MTD 00008382

Foam, Adhesive Backed (Sold per foot)

Note: 10ft

$

$

Not available
