SZ 2042 (2691571-00) (967947601) - Snapper 42" Zero-Turn Mower, 20hp Frame Group Parts Diagram

42" Zero-Turn Mower, 20hp

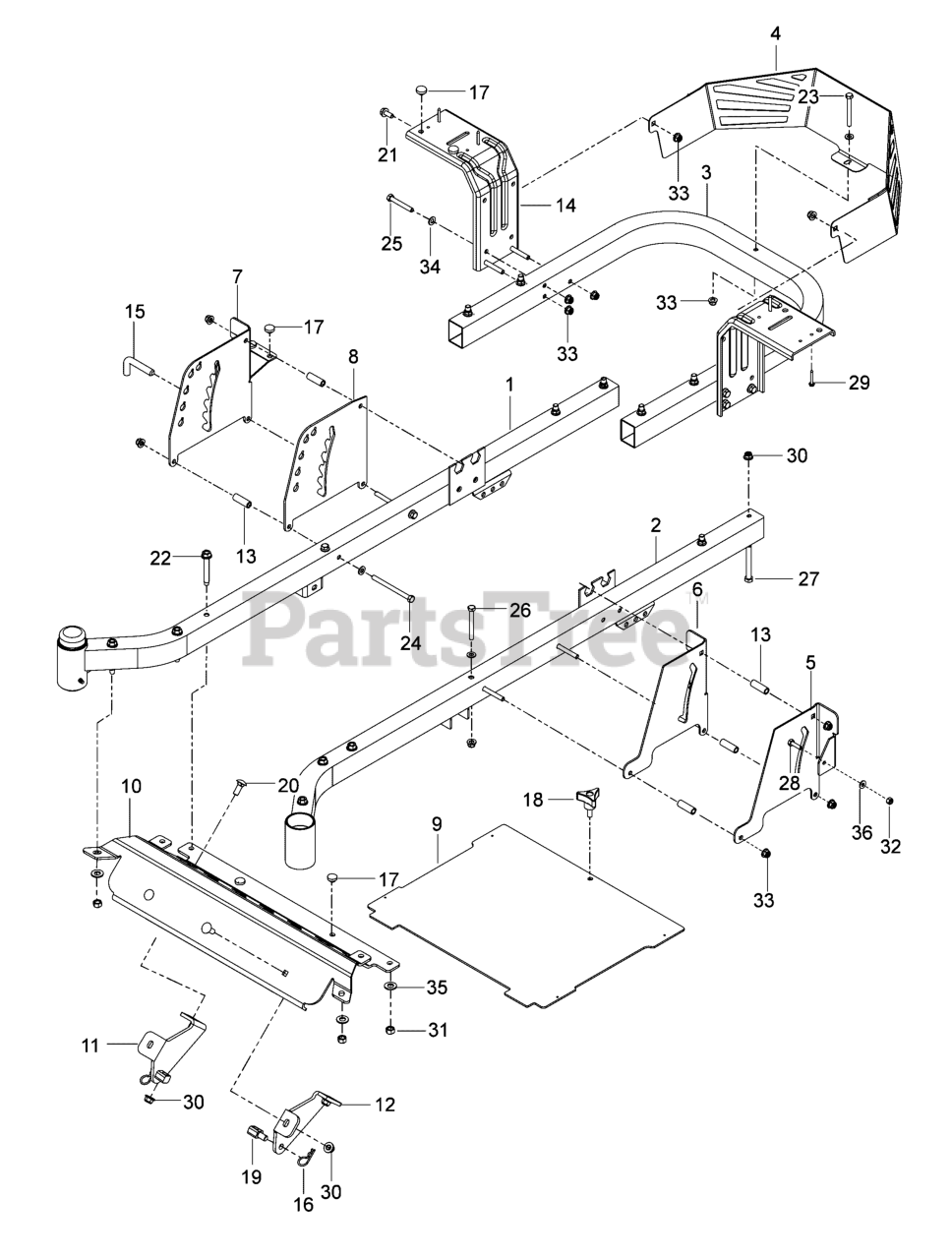

Frame Group Parts Diagram

  • Title

1

FRAME, FRONT RIGHT

Note: (Not a serviceable part)

$

$

Not available

2

FRAME, FRONT LEFT

Note: (Not a serviceable part)

$

$

Not available

3

FRAME, REAR TUBE

Note: (Not a serviceable part)

$

$

Not available

4

Snapper 84005728

GUARD

$112.99

$

Usually ships in 2-12 days

0

5

Snapper 84005729

BRACKET, Brake (outer)

$50.99

$

Usually ships in 2-12 days

0

6

Snapper 84005730

BRACKET, Brake (Inner)

$113.99

$

Usually ships in 2-12 days

0

7

Snapper 84005731

BRACKET, Height Adjust (Outer)

$37.99

$

Usually ships in 2-12 days

0

8

Snapper 84005732

BRACKET, Height Adjust (Inner)

$53.99

$

Usually ships in 2-12 days

0

9

Snapper 84005733

PLATE, Floor

$

$

Currently unavailable

10

Snapper 84005734

FOOTREST

$

$

Currently unavailable

11

Snapper 84005735

BRACKET, Support, RH, (Footrest)

$19.99

$

Usually ships in 2-12 days

0

12

Snapper 84005736

BRACKET, Support, LH, (Footrest)

$19.99

$

Usually ships in 2-12 days

0

13

Snapper 84005737

SPACER

$4.99

$

Usually ships in 2-12 days

0

14

Snapper 84005738

SUPPORT, Fender

$56.99

$

Usually ships in 2-12 days

0

15

Snapper 84005739

PIN (Height Adjustment)

$17.99

$

Usually ships in 2-12 days

0

16

Snapper 84005740

PIN, Retainer

$8.99

$

Usually ships in 2-12 days

0

17

Snapper 84005741

GROMMET

$7.99

$

Usually ships in 2-12 days

0

18

Snapper 84005742

KNOB

$5.49

$

Usually ships in 2-12 days

0

19

Snapper 84005743

TRUNNION (Footrest)

$7.99

$

Usually ships in 2-12 days

0

20

Snapper 84005868

BOLT, 3/8-16 X 1 ROUND HD SQ NECK

$7.99

$

Usually ships in 2-12 days

0

21

Snapper 84005866

BOLT, 5/16-18 X 3/4 GR. 5 ZD

$5.49

$

Usually ships in 2-12 days

0

22

Snapper 84005884

CAPSCREW, 3/8-16 X 3 HEX FLANGE HD

$8.49

$

Usually ships in 2-12 days

0

23

Snapper 709436

BOLT, Hex Flange Head, 5/16-18 Gr 5

$4.49

$

Usually ships in 2-12 days

0

24

Snapper 84005869

CAPSCREW, 5/16-18 X 4 HEX HD

$8.49

$

Usually ships in 2-12 days

0

25

Snapper 84005870

CAPSCREW, 5/16-18 X 2-1/4 HEX HD

$11.99

$

Usually ships in 2-12 days

0

26

Snapper 84005883

CAPSCREW, 5/16-18 X 2-3/4 HEX HEAD

$14.99

$

Usually ships in 2-12 days

0

27

Snapper 84005882

CAPSCREW, 3/8-16 X 3 HEX HD

$7.99

$

Usually ships in 2-12 days

0

28

Snapper 709440

BOLT, Hex Fin, 1/4-20 UNC x 1 Gr 5

$4.99

$

Usually ships in 2-12 days

0

29

Snapper 84005881

SCREW, #10-12 X 1-1/4

$11.99

$

Usually ships in 2-12 days

0

30

Snapper 84005880

LOCKNUT, 3/8-16 HEX FLANGE NYLOC

$4.99

$

Usually ships in 2-12 days

0

31

Snapper 84005879

LOCKNUT, 3/8-16 HEX JAM NYLOC

$7.99

$

Usually ships in 2-12 days

0

32

Snapper 84005877

LOCKNUT, 1/4-20 HEX NYLOC

$5.49

$

Usually ships in 2-12 days

0

33

Snapper 84005875

LOCKNUT, 5/16-18 HEX FLANGE NYLOC

$

$

Currently unavailable

34

Snapper 708477

WASHER, 11/32 x 11/16 x 16 Ga.

$12.99

$

Usually ships in 2-12 days

0

35

Snapper 84005873

WASHER, FLAT, 3/8

$11.99

$

Usually ships in 2-12 days

0

36

Snapper 84005872

WASHER, Flat, 1/4 SAE

$11.99

$

Usually ships in 2-12 days

0
