SZ 2042 (2691571-00) (967947601) - Snapper 42" Zero-Turn Mower, 20hp Steering Group Parts Diagram

42" Zero-Turn Mower, 20hp

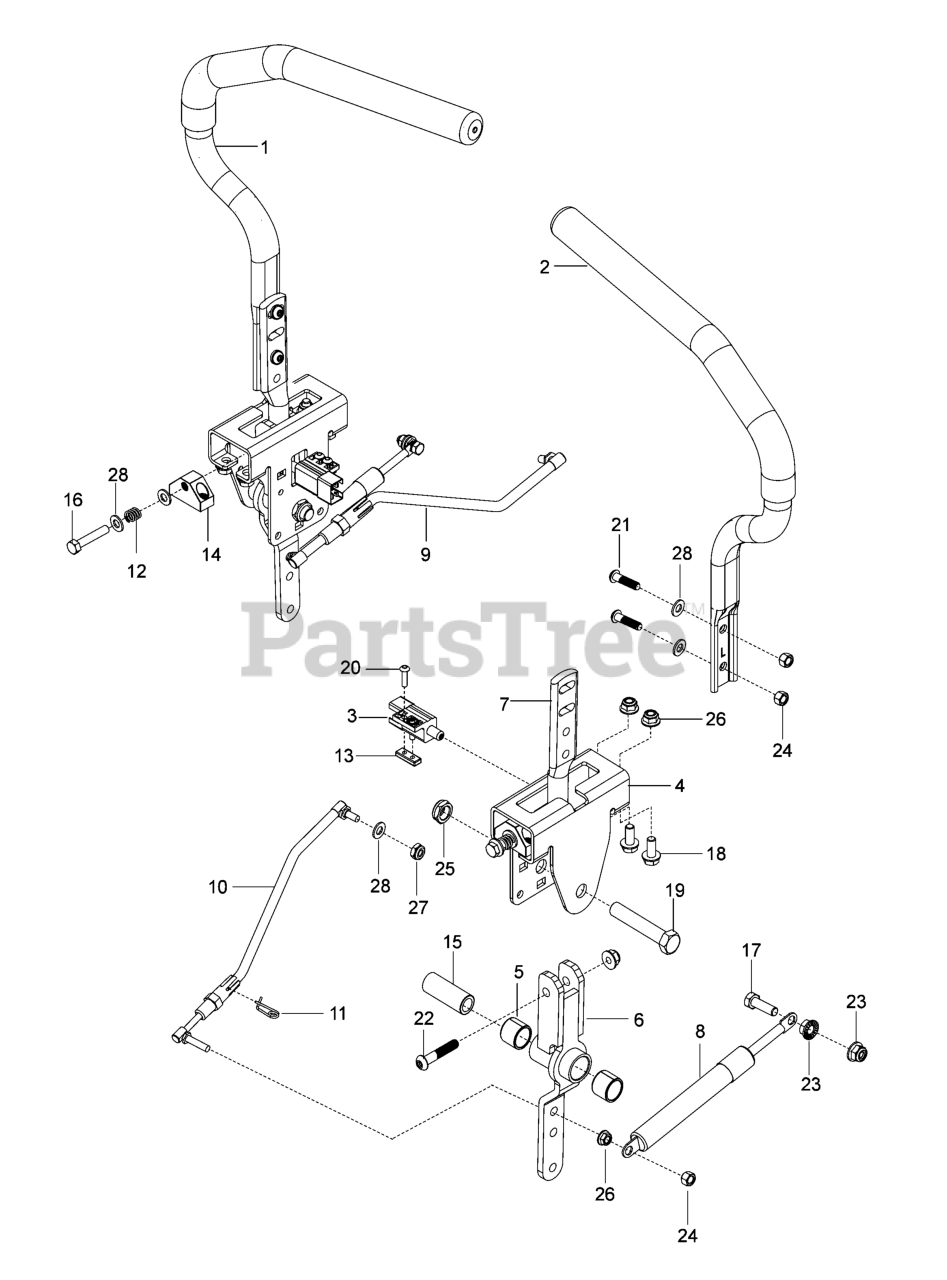

Steering Group Parts Diagram

  • Title

1

Snapper 84005757

LEVER, Right

$110.99

$

Usually ships in 2-12 days

0

2

Snapper 84005758

LEVER, Left

$104.99

$

Usually ships in 2-12 days

0

3

Snapper 84005759

SWITCH, Neutral

$15.99

$

Usually ships in 2-12 days

0

4

Snapper 84005761

BRACKET, Control

$18.99

$

Usually ships in 2-12 days

0

5

Snapper 84005762

BUSHING (Control Lever)

$

$

Currently unavailable

6

Snapper 84005763

LEVER, Control

$36.99

$

Usually ships in 2-12 days

0

7

Snapper 84005764

LEVER, Control

$59.99

$

Usually ships in 2-12 days

0

8

Snapper 84005765

DAMPENER

$145.99

$

Usually ships in 2-12 days

0

9

Snapper 84005770

ROD, Control, Right

Note: (Includes Ref Nos.11)

$70.99

$

Usually ships in 2-12 days

0

10

Snapper 84005771

ROD, Control, Left

Note: (Includes Ref Nos.11)

$64.99

$

Usually ships in 2-12 days

0

11

Snapper 705132

Retainer Clip Spring Steering

$8.99

$

Usually ships in 2-12 days

0

12

Snapper 84005766

SPRING, Lever

$7.99

$

Usually ships in 2-12 days

0

13

Snapper 84005772

PLATE, Switch

$

$

Currently unavailable

14

Snapper 84005773

STOP, Block

$

$

Currently unavailable

15

Snapper 84005774

SPACER

$8.49

$

Usually ships in 2-12 days

0

16

Snapper 705360

Bolt Full Thd 5/16-18 x 1-1/4

$5.49

$

Usually ships in 2-12 days

0

17

Snapper 84005902

CAPSCREW, 5/16-18 X 1

$4.99

$

Usually ships in 2-12 days

0

18

Snapper 84005903

SCREW, Flange, 5/16-18 X 3/4

$7.99

$

Usually ships in 2-12 days

0

19

Snapper 84005904

CAPSCREW, 1/2-13 X 2-3/4

$8.49

$

Usually ships in 2-12 days

0

20

Snapper 84005905

SCREW, 10-24 X 3/4 SOCKET HEAD

$7.99

$

Usually ships in 2-12 days

0

21

Snapper 84005906

SCREW, 5/16-18 X 1-1/4 BUTTON HEAD

$8.49

$

Usually ships in 2-12 days

0

22

Snapper 84005907

SCREW, 5/16-18 X 1-3/4 BUTTON HEAD

$7.99

$

Usually ships in 2-12 days

0

23

Snapper 84005908

NUT, 5/16-18 HEX WHIZ LOCK

$7.99

$

Usually ships in 2-12 days

0

24

Snapper 705350

Nut, Lock 5/16-18 unc

$5.99

$

Usually ships in 2-12 days

0

25

Snapper 84005909

LOCKNUT, 1/2-13 HEX JAM NYLOC

$7.99

$

Usually ships in 2-12 days

0

26

Snapper 84005875

LOCKNUT, 5/16-18 HEX FLANGE NYLOC

$

$

Currently unavailable

27

Snapper 84005910

NUT, 5/16-18 THIN

$7.99

$

Usually ships in 2-12 days

0

28

Snapper 708477

WASHER, 11/32 x 11/16 x 16 Ga.

$12.99

$

Usually ships in 2-12 days

0
