SZ 2046 (2691421-00) (17BDCACT007) - Snapper 46" Zero-Turn Mower, 20hp Bumper Group Parts Diagram
46" Zero-Turn Mower, 20hp

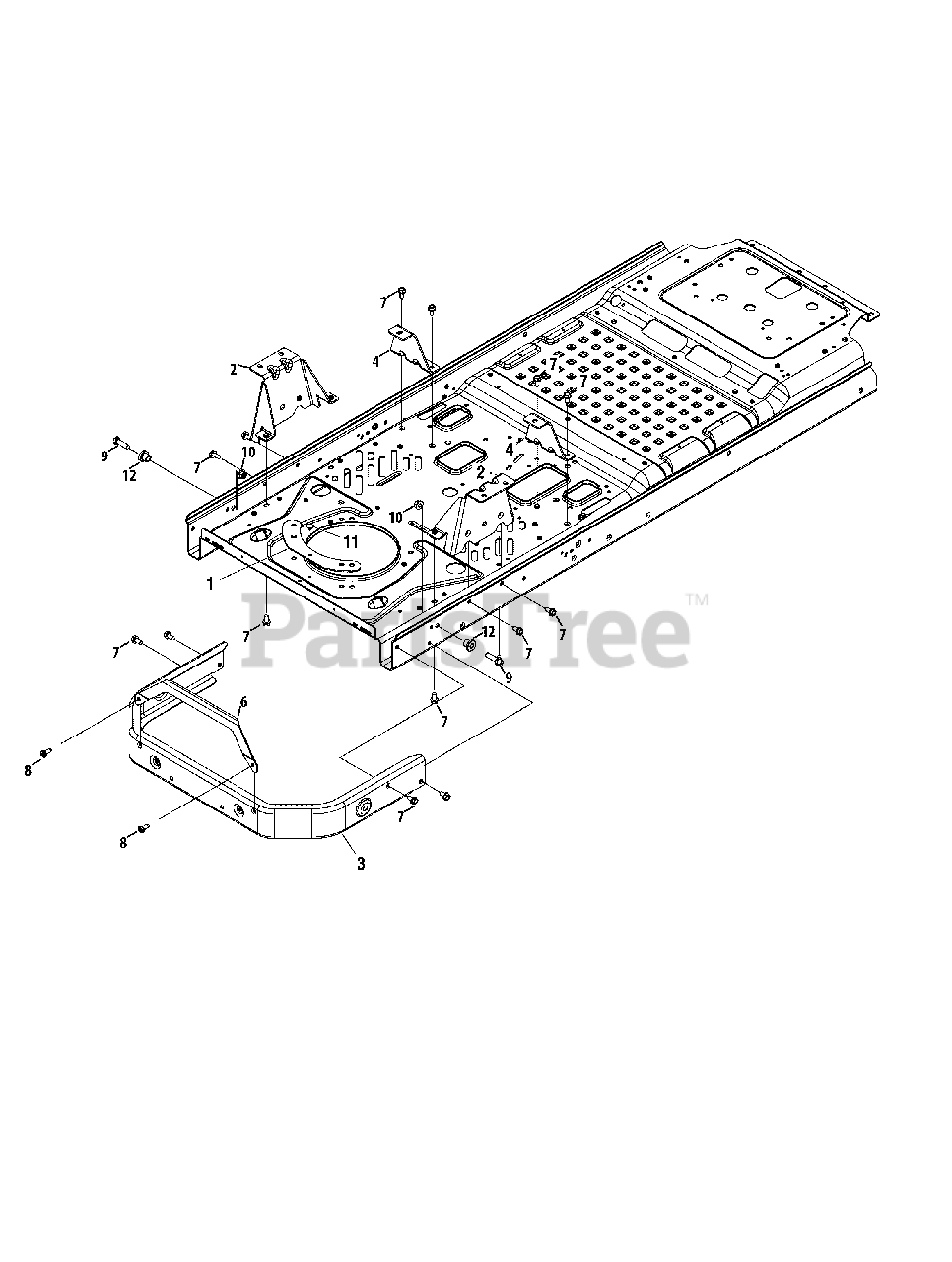

Bumper Group Parts Diagram
Snapper 771170
PLATE, Retainer
$42.99
$
Usually ships in 2-12 days
Snapper 771349
BRACKET, Transmission Mounting (RH)
$38.99
$
Usually ships in 2-12 days
Snapper 771173
BUMPER, Bumper
$127.99
$
Usually ships in 2-12 days
Snapper 771350
BRACKET, Transmission Mounting (LH)
$30.99
$
Usually ships in 2-12 days
Snapper 771351
FRAME
$
$
Currently unavailable
Snapper 771192
BRACKET, Rear Muffler Shield
$71.99
$
Usually ships in 2-12 days
Snapper 771177
SCREW, 5/16-18 X .750, Hex Washer
$5.49
$
Usually ships in 2-12 days
Snapper 771193
SCREW, 5/16-18, 0.750, Self-Tapping
$15.99
$
Usually ships in 2-12 days
Snapper 771179
SCREW, 3/8-16 X 1.25, Hex
$9.99
$
Usually ships in 2-12 days
Snapper 703333
NUT, 3/8-16, Flanged Lock, GR5, Zinc/Clear
$4.99
$
In Stock, Qty 12
Snapper 771144
CLIP, .250 DIA. X .500 LG
$9.49
$
Usually ships in 2-12 days
Snapper 778881
SPACER, .38 X 1.0 X .70, Shoulder
$11.99
$
Usually ships in 2-12 days
