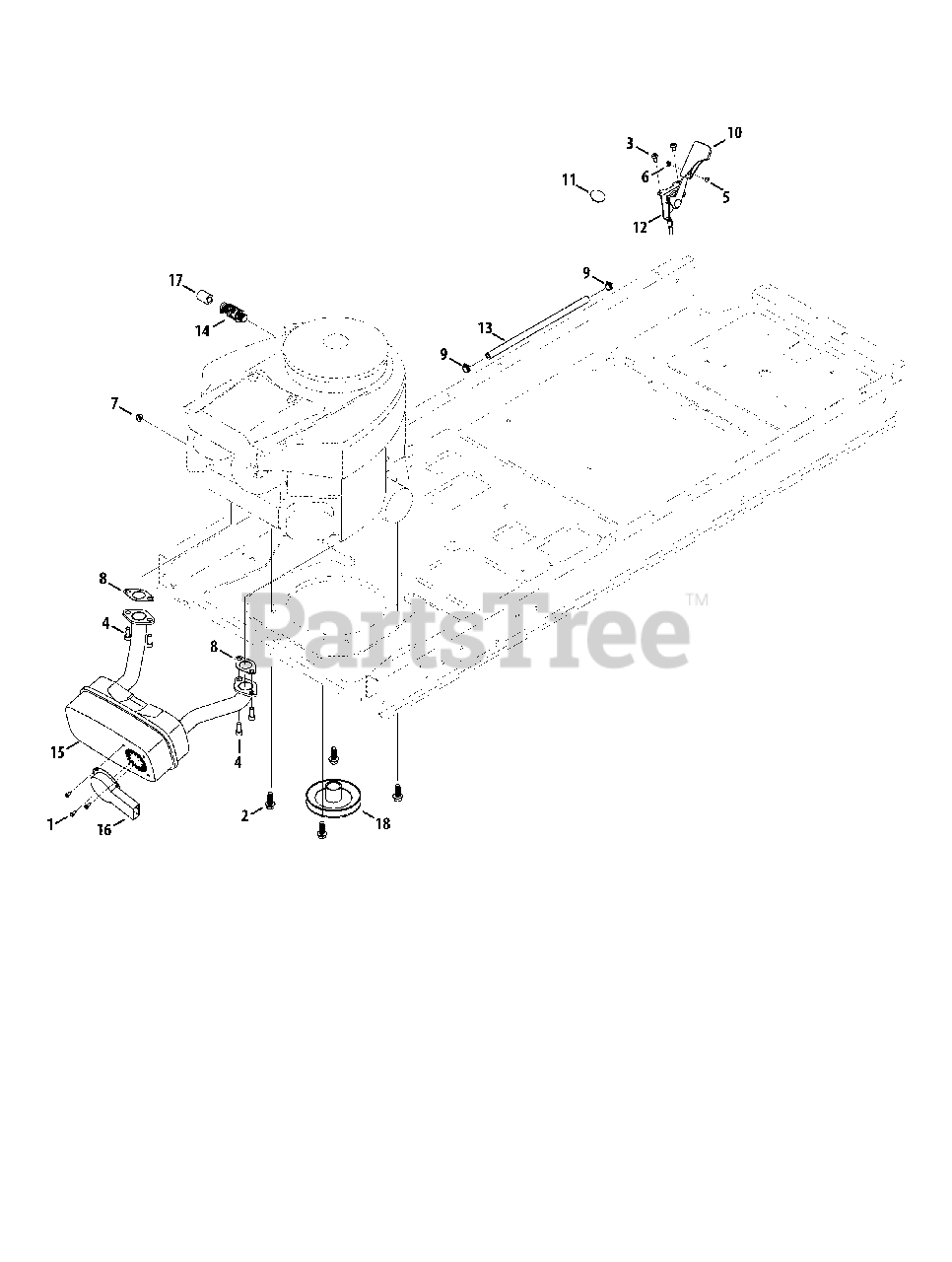

SZ 2046 (2691421-00) (17BDCACT007) - Snapper 46" Zero-Turn Mower, 20hp Engine Group Parts Diagram

46" Zero-Turn Mower, 20hp

Engine Group Parts Diagram

  • Title

1

Snapper 771194

SCREW, #8-18 X .500, Hex Washer

$10.99

$

Usually ships in 2-12 days

0

2

Snapper 703407

CAPSCREW, Hex Head, 3/8-16 x 1, GR5
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 2 left!

0

3

Snapper 771195

SCREW, 1/4-20 X .50

$15.99

$

Usually ships in 2-12 days

0

4

Snapper 771196

SCREW, 5/16-18 X .750, Socket Head

$5.49

$

Usually ships in 2-12 days

0

5

Snapper 771197

SCREW, #8-32 X .375

$15.99

$

Usually ships in 2-12 days

0

6

Snapper 771198

NUT, #8-32, Hex

$10.99

$

Usually ships in 2-12 days

0

7

Snapper 703463

NUT, Nylock Flanged, 1/4-20
(Superseded to 5025391FS)

$4.49

$

In Stock, only 3 left!

0

8

Snapper 771199

GASKET, Exhaust

$

$

Not available

9

Snapper 771200

CLAMP, .490 DIA., Hose

$10.99

$

Usually ships in 2-12 days

0

10

Snapper 771201

KNOB, Throttle Control

$20.99

$

Usually ships in 2-12 days

0

11

Snapper 771202

PLUG, Choke

$16.99

$

Usually ships in 2-12 days

0

12

Snapper 771203

CABLE, Throttle/Choke Control

$

$

Not available

13

Snapper 771204

HOSE, 1/4, Fuel

$91.99

$

Usually ships in 2-12 days

0

14

Snapper 771205

DRAIN, Oil

$30.99

$

Usually ships in 2-12 days

0

15

Snapper 771206

MUFFLER, Intek Twin

$191.99

$

Usually ships in 2-12 days

0

16

Snapper 771207

DEFLECTOR, Muffler, Long

$13.99

$

Usually ships in 2-12 days

0

17

Snapper 771208

HOSE, Oil Drain

$15.99

$

Usually ships in 2-12 days

0

18

Snapper 771209

PULLEY, Engine

$

$

Not available
