SZ 2242 (2691572-00) (967947701) - Snapper 42" Zero-Turn Mower, 22hp Engine Mounting Group Parts Diagram

42" Zero-Turn Mower, 22hp

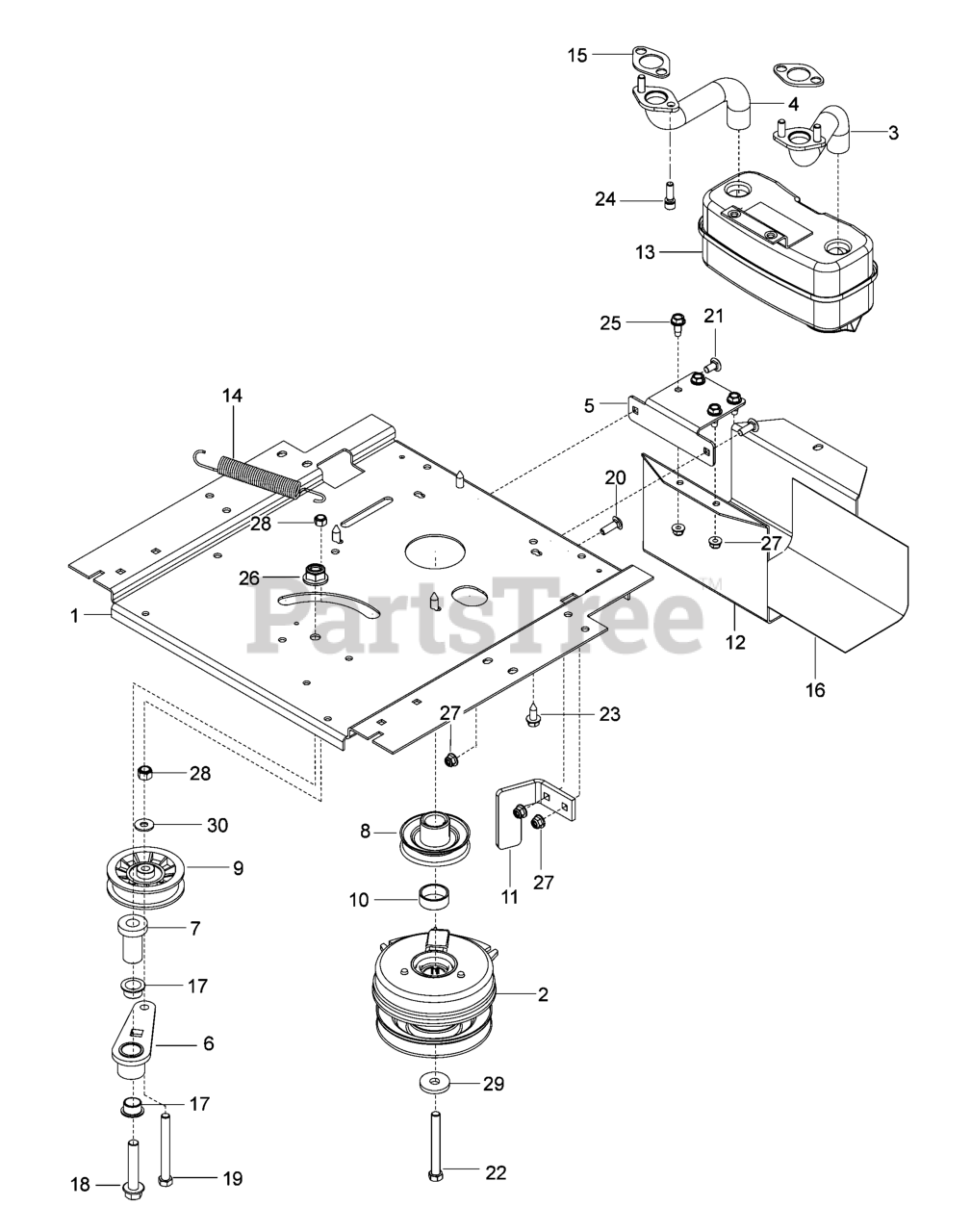

Engine Mounting Group Parts Diagram

  • Title

1

PLATE, Engine

Note: (Not a serviceable part)

$

$

Not available

2

Snapper 84005744

CLUTCH ASSEMBLY

$561.99

$

Usually ships in 2-12 days

0

3

Snapper 708012

PIPE-EXHAUST

$50.99

$

In Stock, only 1 left!

0

4

Snapper 708013

PIPE-EXHAUST

$38.99

$

In Stock, only 1 left!

0

5

Snapper 84005745

BRACKET, Muffler

$75.99

$

Usually ships in 2-12 days

0

6

Snapper 84005746

ARM, Idler

$33.99

$

Usually ships in 2-12 days

0

7

Snapper 84005747

SPINDLE

$8.99

$

Usually ships in 2-12 days

0

8

Snapper 84005749

PULLEY, Crankshaft

$53.99

$

Usually ships in 2-12 days

0

9

Snapper 84005748

PULLEY, Idler

$35.99

$

Usually ships in 2-12 days

0

10

Snapper 84005750

SPACER, Clutch

$7.99

$

Usually ships in 2-12 days

0

11

Snapper 84005957

BRACKET, Clutch

$61.99

$

Usually ships in 2-12 days

0

12

Snapper 84005752

GUARD, Muffler

$68.99

$

Usually ships in 2-12 days

0

13

Snapper 84005753

MUFFLER ASSEMBLY

$110.99

$

Usually ships in 2-12 days

0

14

Snapper 708053

SPRING

$16.99

$

Usually ships in 2-12 days

0

15

Snapper 705028

Gasket

$29.99

$

In Stock, only 1 left!

0

16

Snapper 84005751

SHIELD, Muffler

$88.99

$

Usually ships in 2-12 days

0

17

Snapper 84005756

BEARING, Flange

$8.49

$

Usually ships in 2-12 days

0

18

Snapper 84005886

CAPSCREW, 1/2-13 X 2-3/4 HEX FLANGE HD

$8.49

$

Usually ships in 2-12 days

0

19

Snapper 84005887

CAPSCREW, 3/8-16 X 3-1/2 HEX HD

$8.49

$

Usually ships in 2-12 days

0

20

Snapper 84005888

CAPSCREW, 5/16-18 X 1 GR. 5

$7.99

$

Usually ships in 2-12 days

0

21

Snapper 84005866

BOLT, 5/16-18 X 3/4 GR. 5 ZD

$5.49

$

Usually ships in 2-12 days

0

22

Snapper 84005889

CAPSCREW, 7/16-20 X 2-1/2 HEX HD

$8.49

$

Usually ships in 2-12 days

0

23

Snapper 84005936

SCREW, 3/8-16 X 1

$11.99

$

Usually ships in 2-12 days

0

24

Snapper 705044

Screw Socket HD 5/16-18 x 1

$7.49

$

Usually ships in 2-12 days

0

25

Snapper 705327

SCREW, 5/16-18 x 3/4 Thred Roll

$7.49

$

Usually ships in 2-12 days

0

26

Snapper 84005899

LOCKNUT, 1/2-13 HEX FLANGE NYLOC

$4.99

$

Usually ships in 2-12 days

0

27

Snapper 84005875

LOCKNUT, 5/16-18 HEX FLANGE NYLOC

$

$

Currently unavailable

28

Snapper 84005900

LOCKNUT, 3/8-16 HEX NYLOC

$7.99

$

Usually ships in 2-12 days

0

29

Snapper 708571

Washer 1-1/2 OD x 15/32 ID x .250

$9.99

$

In Stock, only 1 left!

0

30

Snapper 84004250

Washer 13/32 x 7/8 x 14 Ga.

$8.99

$

Usually ships in 2-12 days

0
