SZ 2242 (2691572-00) (967947701) - Snapper 42" Zero-Turn Mower, 22hp Mower Deck Group Parts Diagram

42" Zero-Turn Mower, 22hp

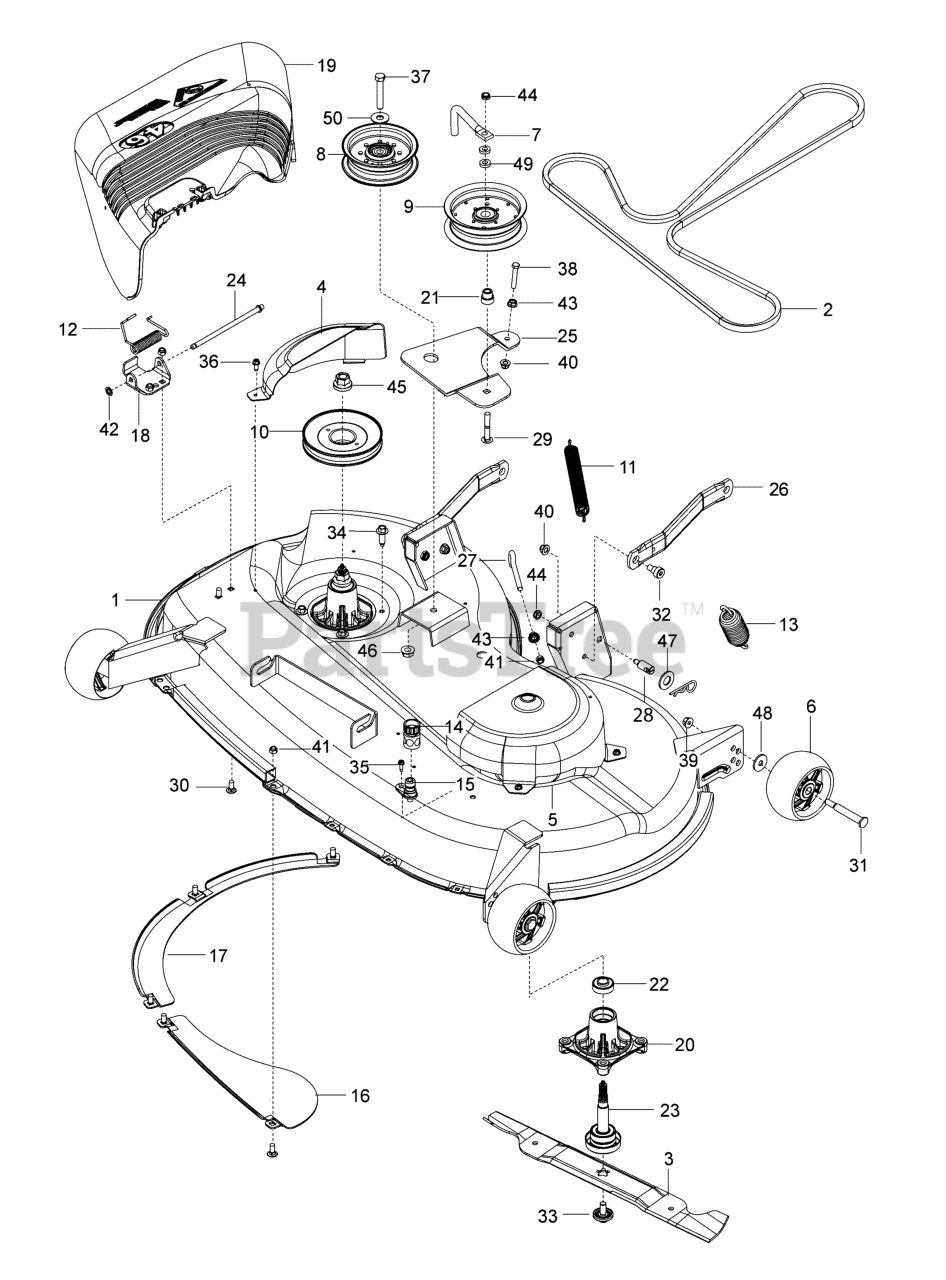

Mower Deck Group Parts Diagram

  • Title

1

DECK

Note: (Not a serviceable part)

$

$

Not available

2

Snapper 84005851

BELT

$192.99

$

Usually ships in 2-12 days

0

3

Snapper 704425

Blade Mower Hi-Lift

$40.99

$

In Stock, only 2 left!

0

4

Snapper 84005852

GUARD, Pulley, Right

$43.99

$

Usually ships in 2-12 days

0

5

Snapper 84005853

GUARD, Pulley, Left

$68.99

$

Usually ships in 2-12 days

0

6

Snapper 84004085

WHEEL, Gauge

$15.99

$

In Stock, only 1 left!

0

7

Snapper 84005854

GUIDE, Belt

$11.99

$

Usually ships in 2-12 days

0

8

Snapper 707999

PULLEY

$76.99

$

Usually ships in 2-12 days

0

9

Snapper 84005855

PULLEY, Idler

$68.99

$

Usually ships in 2-12 days

0

10

Snapper 84005856

PULLEY, Blade

$55.99

$

Usually ships in 2-12 days

0

11

Snapper 84005857

SPRING, Idler Pulley

$17.99

$

Usually ships in 2-12 days

0

12

Snapper 708194

Spring, Torsion

$7.49

$

Usually ships in 2-12 days

0

13

Snapper 84005700

SPRING

$17.99

$

Usually ships in 2-12 days

0

14

Snapper 705234

Coupling Quick Connect

$7.99

$

In Stock, only 1 left!

0

15

Snapper 705231

Port Washout

$16.99

$

In Stock, only 1 left!

0

16

Snapper 705153

Baffle Center Front

$47.99

$

In Stock, only 2 left!

0

17

Snapper 705154

Baffle Front RH

$53.99

$

Usually ships in 2-12 days

0

18

Snapper 705056

Bracket, Deflector

$9.99

$

In Stock, only 1 left!

0

19

Snapper 705435

Shield, Deflector

$179.99

$

Usually ships in 2-12 days

0

20

Snapper 84005711

SPINDLE ASSEMBLY

Note: (Includes Ref Nos.22,23)

$103.99

$

In Stock, only 1 left!

0

21

Snapper 84005858

BUSHING, Pulley

$14.99

$

Usually ships in 2-12 days

0

22

Snapper 84004240

BEARING, Mandrel

$

$

Currently unavailable

23

Snapper 84005642

SHAFT, Spindle
(Superseded to 84005711)

$103.99

$

In Stock, only 1 left!

0

24

Snapper 705009

Rod, Hinge

$7.99

$

Usually ships in 2-12 days

0

25

Snapper 84005859

ARM, Idler

$50.99

$

Usually ships in 2-12 days

0

26

Snapper 84005849

HANGER, Deck

$21.99

$

Usually ships in 2-12 days

0

27

Snapper 84005702

EYE BOLT

$7.99

$

Usually ships in 2-12 days

0

28

Snapper 705088

Stud Fastner W/'D'anti-Rotatio

$12.99

$

In Stock, only 2 left!

0

29

Snapper 709419

BOLT, Round Head Square Neck, 3/8-16 x 2-1/4

$5.49

$

In Stock, only 1 left!

0

30

Snapper 84005866

BOLT, 5/16-18 X 3/4 GR. 5 ZD

$5.49

$

Usually ships in 2-12 days

0

31

Snapper 708232

Bolt, Shoulder

$7.99

$

In Stock, only 3 left!

0

32

Snapper 84005714

SCREW, 3/8-16 X 3/8 SKT HD

$63.99

$

Usually ships in 2-12 days

0

33

Snapper 84004233

SCREW, 7/16-20 X 1 Hex Hd.

$

$

Currently unavailable

34

Snapper 84004234

BOLT, .313-18 X 1.19

$

$

Currently unavailable

35

Snapper 84005951

SCREW, 10-24 X 5/8

$7.99

$

Usually ships in 2-12 days

0

36

Snapper 705013

Capscrew, Hex Hd., 3/8-16 x 1 1/4

$8.99

$

In Stock, only 1 left!

0

37

Snapper 84005952

CAPSCREW, 7/16-14 X 2-1/2

$11.99

$

Usually ships in 2-12 days

0

38

Snapper 705360

Bolt Full Thd 5/16-18 x 1-1/4

$5.49

$

Usually ships in 2-12 days

0

39

Snapper 84004161

NUT, 3/8-16, Lock

$12.99

$

In Stock, only 1 left!

0

40

Snapper 84005875

LOCKNUT, 5/16-18 HEX FLANGE NYLOC

$

$

Currently unavailable

41

Snapper 705350

Nut, Lock 5/16-18 unc

$5.99

$

Usually ships in 2-12 days

0

42

Snapper 704991

Nut, Push

$7.99

$

In Stock, only 3 left!

0

43

Snapper 84005908

NUT, 5/16-18 HEX WHIZ LOCK

$7.99

$

Usually ships in 2-12 days

0

44

Snapper 84005879

LOCKNUT, 3/8-16 HEX JAM NYLOC

$7.99

$

Usually ships in 2-12 days

0

45

Snapper 705134

Nut, Toplock, Flanged

$11.99

$

In Stock, only 2 left!

0

46

Snapper 705354

Nut Lock Flange 7/16-14 Gr. 5

$6.49

$

Usually ships in 2-12 days

0

47

Snapper 84005920

WASHER, 1- 5/16 13 GAUGE

$7.99

$

Usually ships in 2-12 days

0

48

Snapper 708748

WASHER

$8.99

$

In Stock, only 2 left!

0

49

Snapper 84005953

WASHER, 3/8

$7.99

$

Usually ships in 2-12 days

0

50

Snapper 84005954

WASHER, 7/16

$7.99

$

Usually ships in 2-12 days

0
