SZ 2246 (2691566-00) (17CDCACT007) - Snapper 46" Zero-Turn Mower, Hydro, 22hp Seat Group Parts Diagram

46" Zero-Turn Mower, Hydro, 22hp

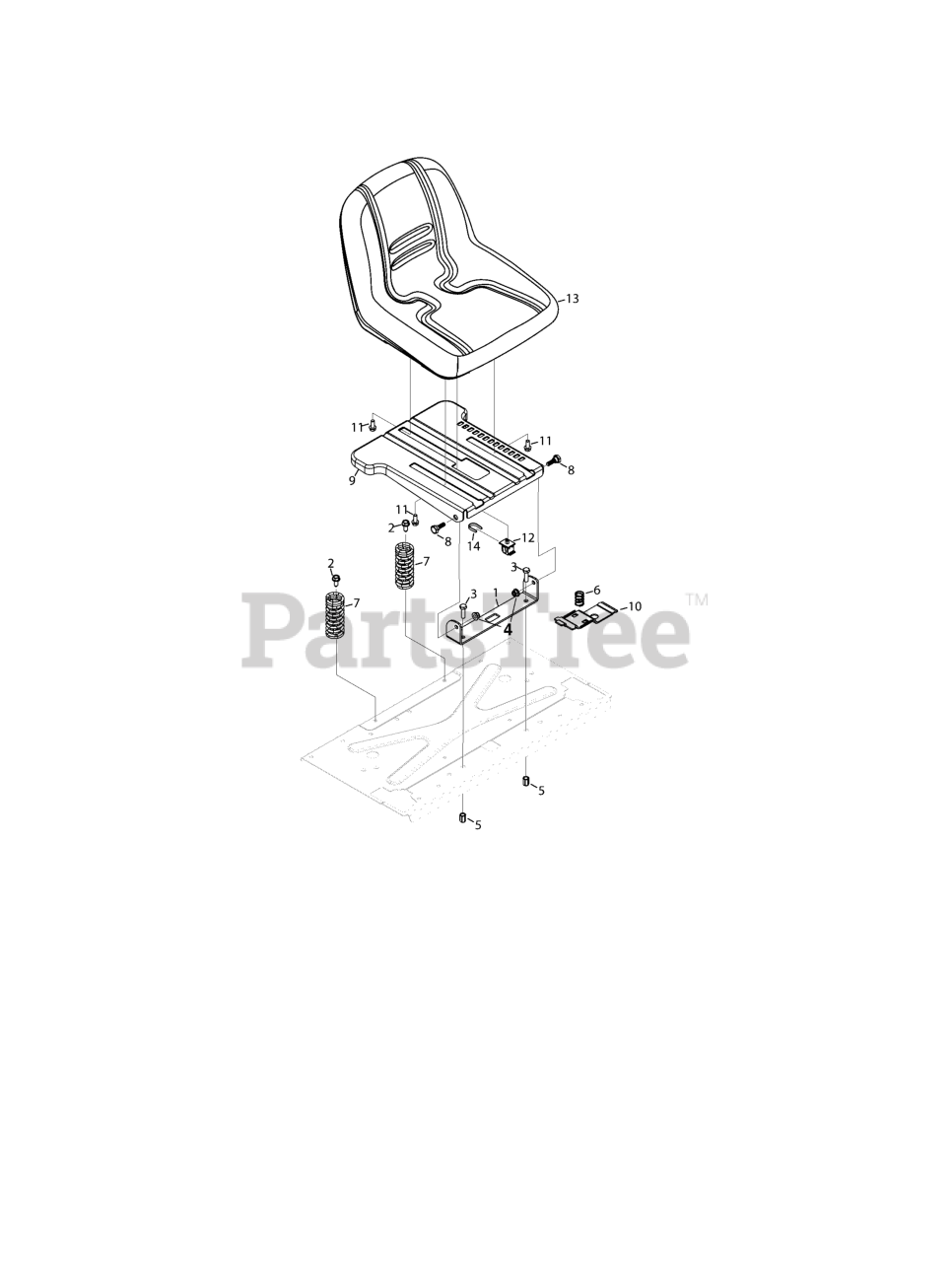

Seat Group Parts Diagram

  • Title

1

Snapper 771237

BRACKET, Seat Pivot

$59.99

$

Usually ships in 2-12 days

0

2

Snapper 771177

SCREW, 5/16-18 X .750, Hex Washer

$5.49

$

Usually ships in 2-12 days

0

3

Snapper 771238

SCREW, 5/16-18 X 1.00 GR5

$11.99

$

Usually ships in 2-12 days

0

4

Snapper 704783

NUT, Lock

$

$

Currently unavailable

5

Snapper 771239

NUT, Rivet,  5/16-18

$8.49

$

Usually ships in 2-12 days

0

6

Snapper 771240

SPRING, Compression

$6.49

$

Usually ships in 2-12 days

0

7

Snapper 771241

SPRING, Compression

$14.99

$

Usually ships in 2-12 days

0

8

Snapper 771242

SCREW, .437, Shoulder

$4.99

$

Usually ships in 2-12 days

0

9

Snapper 771243

BRACKET, Seat Mounting

$124.99

$

Usually ships in 2-12 days

0

10

Snapper 771244

LEVER, Seat Adjust

$19.99

$

Usually ships in 2-12 days

0

11

Snapper 771245

SCREW, 3/8-16 X .875 GR5

$5.99

$

Usually ships in 2-12 days

0

12

Snapper 771187

SWITCH, Seat

$47.99

$

Usually ships in 2-12 days

0

13

Snapper 771246

SEAT, High Back

$438.99

$

Usually ships in 2-12 days

0

14

Snapper 771247

CLIP, Retaining

$6.99

$

Usually ships in 2-12 days

0
