SZ 2454 (2691422-00) (17ADCACW007) - Snapper 54" Zero-Turn Mower, 24hp Drive System Group Parts Diagram

54" Zero-Turn Mower, 24hp

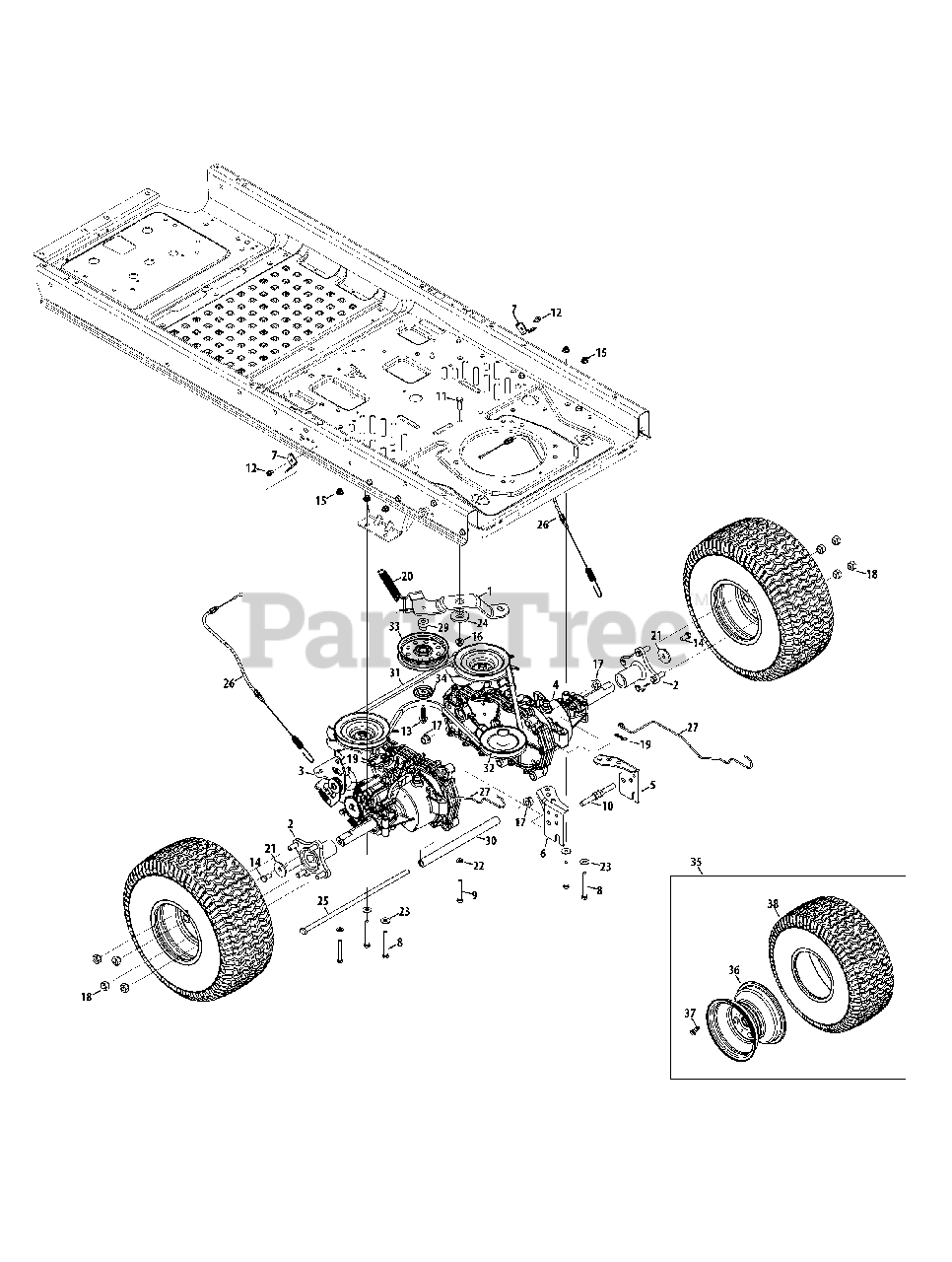

Drive System Group Parts Diagram

  • Title

1

Snapper 771133

BRACKET, Idler

$

$

Not available

2

Snapper 771134

ASSEMBLY, Wheel Hub

$186.99

$

Usually ships in 2-12 days

0

3

Snapper 771135

ASSEMBLY, Hydro Transmission (LH)

$1538.99

$

Usually ships in 2-12 days

0

4

Snapper 771136

ASSEMBLY, Hydro Transmission (RH)

$1880.99

$

Usually ships in 2-12 days

0

5

Snapper 771137

BRACKET, Transmission Mounting (RH)

$27.99

$

Usually ships in 2-12 days

0

6

Snapper 771138

BRACKET, Transmission Mounting (LH)

$27.99

$

Usually ships in 2-12 days

0

7

Snapper 771139

BRACKET, Brake Cable

$5.49

$

Usually ships in 2-12 days

0

8

Snapper 771140

SCREW, 5/16-18 X 2.75, Hex

$5.49

$

Usually ships in 2-12 days

0

9

Snapper 771141

SCREW, 5/16-18 X 2.25, Hex, GR5

$11.99

$

Usually ships in 2-12 days

0

10

Snapper 771142

SCREW, 7/16-20 X 1.75 GR 5

$10.99

$

Usually ships in 2-12 days

0

11

Snapper 771143

SCREW, 3/8-16 X 1 GR5

$10.99

$

Usually ships in 2-12 days

0

12

Snapper 704130

SCREW, Hex Head, 1/4-20 X 1/2

$3.99

$

In Stock, Qty 20+

0

13

Snapper 771145

SCREW, 3/8-16 X1.250

$6.49

$

Usually ships in 2-12 days

0

14

Snapper 771146

SCREW, 3/8-16 X .75 GR 5

$15.99

$

Usually ships in 2-12 days

0

15

Snapper 771318

NUT, 5/8-18 Hex Flange

$14.99

$

In Stock, only 4 left!

0

16

Snapper 703333

NUT, 3/8-16, Flanged Lock, GR5, Zinc/Clear

$4.99

$

In Stock, Qty 13

0

17

Snapper 771148

NUT, Flange Lock

$11.99

$

Usually ships in 2-12 days

0

18

Snapper 771149

NUT, 7/16-14, Lug

$

$

Not available

19

Snapper 771150

PIN, 1/4-5/16, Bow Tie Cotter

$2.99

$

In Stock, only 1 left!

0

20

Snapper 771151

SPRING, .75 DIA X 5.87 RZT/F, Extension

$23.99

$

In Stock, only 1 left!

0

21

Snapper 771152

WASHER, .390X1.500X.134, Flat

$14.99

$

Usually ships in 2-12 days

0

22

Snapper 771153

WASHER, 5/16, Flat

$15.99

$

Usually ships in 2-12 days

0

23

Snapper 771154

WASHER, 5/16, Flat

$11.99

$

Usually ships in 2-12 days

0

24

Snapper 771155

SPACER, Shoulder

$

$

Not available

25

Snapper 771156

ROD, Support Tube

$48.99

$

Usually ships in 2-12 days

0

26

Snapper 771157

CABLE, Park Prake

$42.99

$

Usually ships in 2-12 days

0

27

Snapper 771158

ROD, Hydro Bypass

$15.99

$

Usually ships in 2-12 days

0

28

Snapper 771578

HOOK, Idler Spring

$24.99

$

In Stock, only 2 left!

0

29

Snapper 771159

SPACER, Shoulder

$

$

Not available

30

Snapper 771160

TUBE, Support

$61.99

$

Usually ships in 2-12 days

0

31

Snapper 771161

BELT, A X 67, Transmission Drive

$84.99

$

In Stock, only 2 left!

0

32

Snapper 771162

PULLEY, Transmission Drive

$58.99

$

Usually ships in 2-12 days

0

33

Snapper 771163

PULLEY, 4.25 DIA, Idler

$

$

Not available

34

Snapper 771164

PULLEY CAP, Idler Pulley

$

$

Not available

35

Snapper 771352

ASSEMBLY, Wheel (18 X 8.5-8)

$451.99

$

Usually ships in 2-12 days

0

36

Snapper 771353

ASSEMBLY, Rear Rim

$206.99

$

Usually ships in 2-12 days

0

37

Snapper 771167

VALVE, Stem - Tubless

$11.99

$

Usually ships in 2-12 days

0

38

Snapper 771354

TIRE, 18 X 9.5 X 8 SQ SH

$394.99

$

Usually ships in 2-12 days

0
