SZ 2454 (2691567-00) (17BRCACA007) - Snapper 54" Zero-Turn Mower, 24hp Drive System Group Parts Diagram

54" Zero-Turn Mower, 24hp

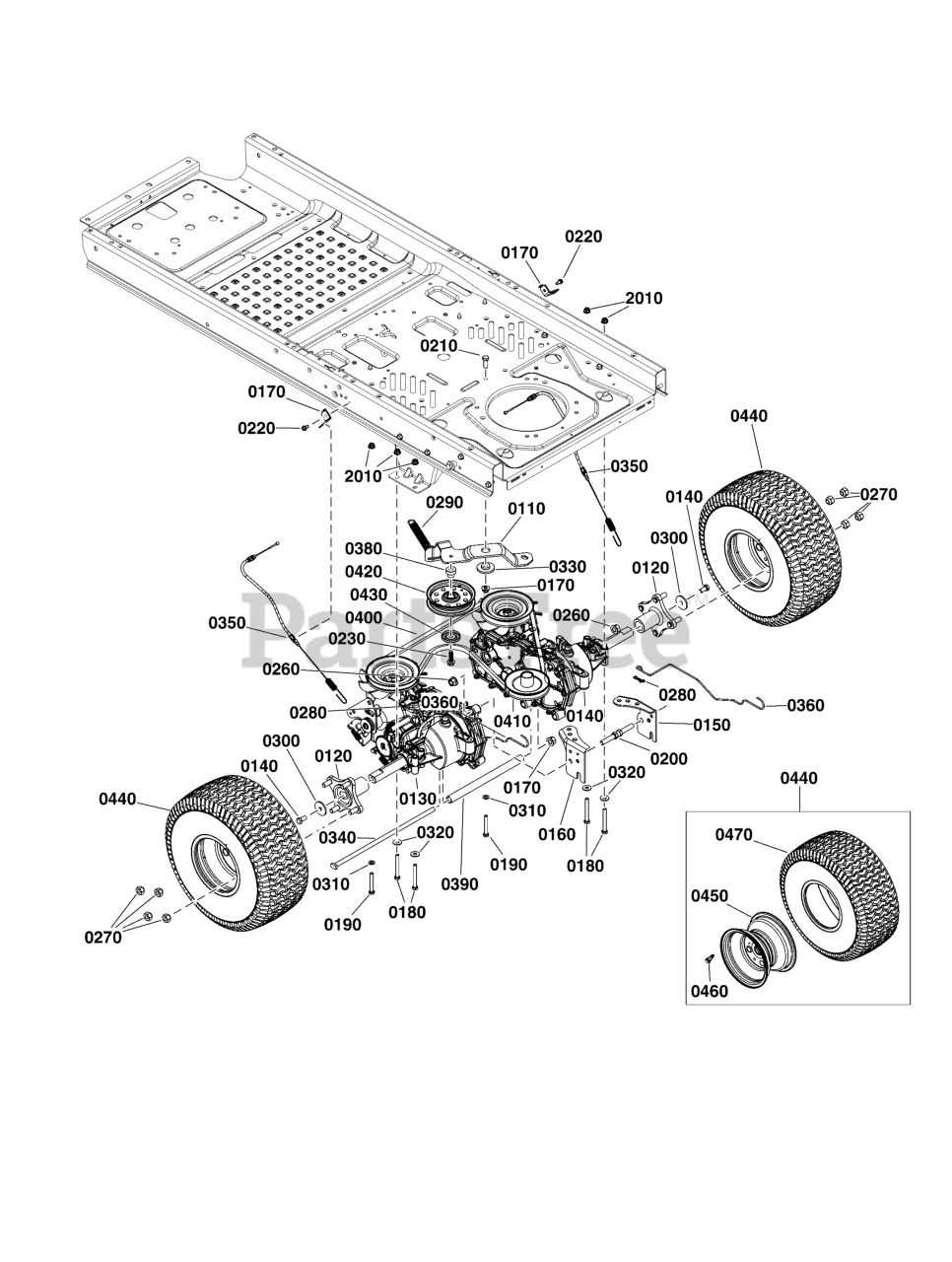

Drive System Group Parts Diagram

  • Title

0110

Snapper 771133

BRACKET, Idler

$

$

Not available

0120

Snapper 771134

ASSEMBLY, Wheel Hub

$

$

Not available

0130

Snapper 771135

ASSEMBLY, Hydro Transmission (LH)

$1538.99

$

Usually ships in 2-12 days

0

0140

Snapper 771136

ASSEMBLY, Hydro Transmission (RH)

$1880.99

$

Usually ships in 2-12 days

0

0150

Snapper 771137

BRACKET, Transmission Mounting (RH)

$20.99

$

Usually ships in 2-12 days

0

0160

Snapper 771138

BRACKET, Transmission Mounting (LH)

$20.99

$

Usually ships in 2-12 days

0

0170

Snapper 771139

BRACKET, Brake Cable

$5.49

$

Usually ships in 2-12 days

0

0180

Snapper 771140

SCREW, 5/16-18 X 2.75, Hex

$5.49

$

Usually ships in 2-12 days

0

0190

Snapper 771141

SCREW, 5/16-18 X 2.25, Hex, GR5

$8.99

$

Usually ships in 2-12 days

0

0200

Snapper 771142

SCREW, 7/16-20 X 1.75 GR 5

$7.99

$

Usually ships in 2-12 days

0

0210

Snapper 771143

SCREW, 3/8-16 X 1 GR5

$7.99

$

Usually ships in 2-12 days

0

0220

Snapper 703624

SCREW, TT, 1/4-20 x 1/2

$

$

Currently unavailable

0230

Snapper 771145

SCREW, 3/8-16 X1.250

$6.49

$

Usually ships in 2-12 days

0

0240

Snapper 771146

SCREW, 3/8-16 X .75 GR 5

$11.99

$

Usually ships in 2-12 days

0

0260

Snapper 771148

NUT, Flange Lock

$8.99

$

Usually ships in 2-12 days

0

0270

Snapper 771149

NUT, 7/16-14, Lug

$12.99

$

Usually ships in 2-12 days

0

0280

Snapper 771150

PIN, 1/4-5/16, Bow Tie Cotter

$2.99

$

In Stock, only 1 left!

0

0290

Snapper 771151

SPRING, .75 DIA X 5.87 RZT/F, Extension

$23.99

$

In Stock, only 1 left!

0

0300

Snapper 771152

WASHER, .390X1.500X.134, Flat

$11.99

$

Usually ships in 2-12 days

0

0310

Snapper 771153

WASHER, 5/16, Flat

$11.99

$

Usually ships in 2-12 days

0

0320

Snapper 771154

WASHER, 5/16, Flat

$8.49

$

Usually ships in 2-12 days

0

0330

Snapper 771155

SPACER, Shoulder

$

$

Not available

0340

Snapper 771156

ROD, Support Tube

$35.99

$

Usually ships in 2-12 days

0

0350

Snapper 771157

CABLE, Park Prake

$42.99

$

Usually ships in 2-12 days

0

0360

Snapper 771158

ROD, Hydro Bypass

$15.99

$

Usually ships in 2-12 days

0

0370

Snapper 771578

HOOK, Idler Spring

$24.99

$

In Stock, only 2 left!

0

0380

Snapper 771159

SPACER, Shoulder

$

$

Not available

0390

Snapper 771160

TUBE, Support

$45.99

$

Usually ships in 2-12 days

0

0400

Snapper 771161

BELT, A X 67, Transmission Drive

$68.99

$

In Stock, only 2 left!

0

0410

Snapper 771162

PULLEY, Transmission Drive

$58.99

$

Usually ships in 2-12 days

0

0420

Snapper 771163

PULLEY, 4.25 DIA, Idler

$60.99

$

In Stock, only 1 left!

0

0430

Snapper 771164

PULLEY CAP, Idler Pulley

$10.99

$

Usually ships in 2-12 days

0

0440

Snapper 771352

ASSEMBLY, Wheel (18 X 8.5-8)

$451.99

$

Usually ships in 2-12 days

0

0450

Snapper 771353

ASSEMBLY, Rear Rim

$156.99

$

Usually ships in 2-12 days

0

0460

Snapper 771167

VALVE, Stem - Tubless

$7.99

$

Usually ships in 2-12 days

0

0470

Snapper 771354

TIRE, 18 X 9.5 X 8 SQ SH

$299.99

$

Usually ships in 2-12 days

0

1700

Snapper 703333

NUT, 3/8-16, Flanged Lock, GR5

$4.99

$

In Stock, Qty 20+

0

2010

Snapper 771318

NUT, 5/8-18 Hex Flange

$10.99

$

In Stock, Qty 8

0
