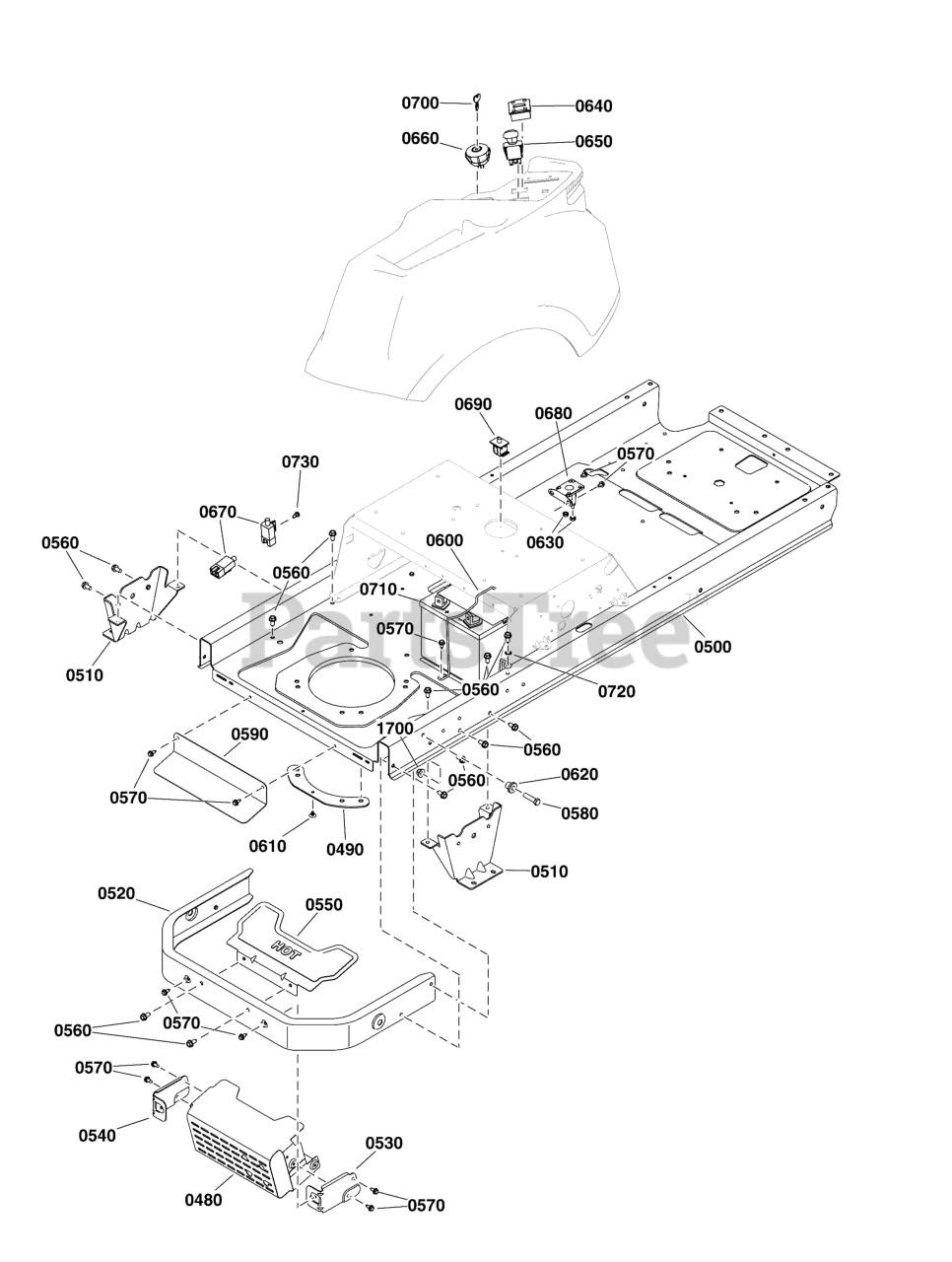

SZ 2454 (2691567-00) (17BRCACA007) - Snapper 54" Zero-Turn Mower, 24hp Frame & Electrical Group Parts Diagram

54" Zero-Turn Mower, 24hp

Frame & Electrical Group Parts Diagram

  • Title

0480

Snapper 771355

ASSEMBLY, Muffler Shield

$109.99

$

Usually ships in 2-12 days

0

0490

Snapper 771170

PLATE, Retainer

$32.99

$

Usually ships in 2-12 days

0

0500

Snapper 771356

ASSEMBLY, Frame

Note: (Not a Sellable Part)

$1270.99

$

Usually ships in 2-12 days

0

0510

Snapper 771172

BRACKET, Transmission Mounting

$58.99

$

Usually ships in 2-12 days

0

0520

Snapper 771358

BUMPER, Rear

$117.99

$

Usually ships in 2-12 days

0

0530

Snapper 771174

BRACKET, Muffler Mounting Shield, RH

$15.99

$

Usually ships in 2-12 days

0

0540

Snapper 771175

BRACKET, Muffler Mounting Shield, LH

$15.99

$

Usually ships in 2-12 days

0

0550

Snapper 771176

SHIELD, Muffler

$62.99

$

Usually ships in 2-12 days

0

0560

Snapper 771177

SCREW, 5/16-18 X .750, Hex Washer

$5.49

$

Usually ships in 2-12 days

0

0570

Snapper 771178

SCREW, 1/4-20 X .625, Hex Washer

$4.99

$

In Stock, only 1 left!

0

0580

Snapper 771179

SCREW, 3/8-16 X 1.25, Hex

$7.49

$

Usually ships in 2-12 days

0

0590

Snapper 771180

SHIELD, Lower Heat

$35.99

$

Usually ships in 2-12 days

0

0600

Snapper 771147

ROD, Battery

$26.99

$

In Stock, only 1 left!

0

0610

Snapper 771144

CLIP, .250 DIA. X .500 LG

$7.49

$

Usually ships in 2-12 days

0

0620

Snapper 778881

SPACER, .38 X 1.0 X .70, Shoulder

$8.49

$

Usually ships in 2-12 days

0

0630

Snapper 703463

NUT, Flange Nylock , 1/4-20

$4.49

$

In Stock, only 3 left!

0

0640

Snapper 771357

HOUR METER/SERVICE MINDER

$71.99

$

Usually ships in 2-12 days

0

0650

Snapper 771183

SWITCH, Electric PTO

$74.99

$

Usually ships in 2-12 days

0

0660

Snapper 771359

SWITCH, Key Ignition

$51.99

$

In Stock, only 1 left!

0

0670

Snapper 771185

SWITCH, Interlock

$24.99

$

Usually ships in 2-12 days

0

0680

Snapper 771186

SOLENOID

$63.99

$

Usually ships in 2-12 days

0

0690

Snapper 771187

SWITCH, Seat

$47.99

$

Usually ships in 2-12 days

0

0700

Snapper 771188

ASSEMBLY, Key

$11.99

$

Usually ships in 2-12 days

0

0710

Snapper 771190

BATTERY

$141.99

$

Usually ships in 2-12 days

0

0720

Snapper 771189

WASHER, 5/16, EXT., Lock

$7.99

$

Usually ships in 2-12 days

0

0730

Snapper 771191

SCREW, #10-32 X .500, Shoulder

$10.99

$

Usually ships in 2-12 days

0

0740

Snapper 771577

ASSEMBLY, Harness

$219.99

$

Usually ships in 2-12 days

0

1700

Snapper 703333

NUT, 3/8-16, Flanged Lock, GR5

$4.99

$

In Stock, Qty 20+

0
