SZ 2454 (2691567-00) (17BRCACA007) - Snapper 54" Zero-Turn Mower, 24hp Front Axle Group Parts Diagram

54" Zero-Turn Mower, 24hp

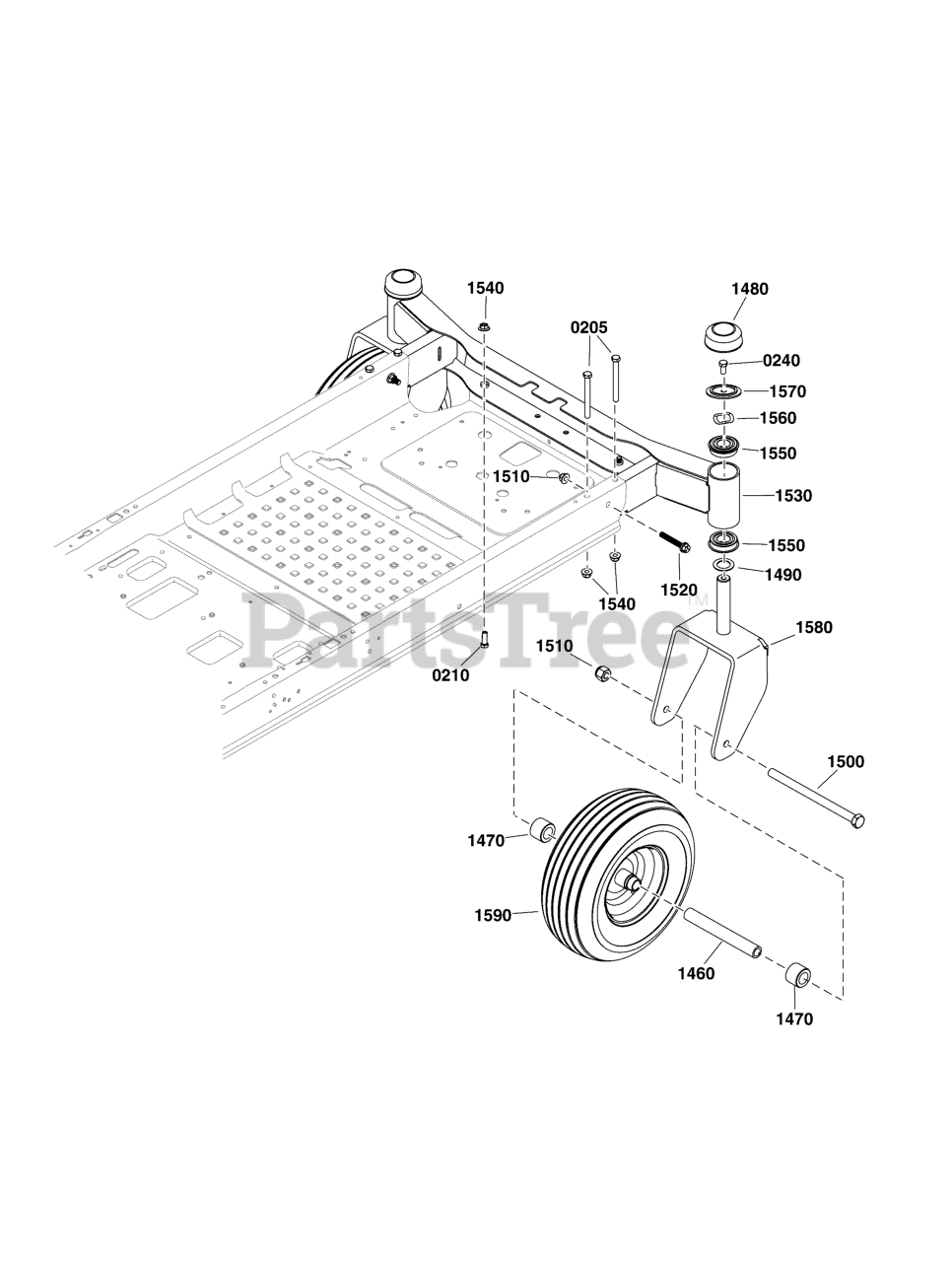

Front Axle Group Parts Diagram

  • Title

0205

Snapper 771210

SCREW, 3/8-16 X 3.75 GR5

$9.99

$

Usually ships in 2-12 days

0

0210

Snapper 771143

SCREW, 3/8-16 X 1 GR5

$7.99

$

Usually ships in 2-12 days

0

0240

Snapper 771146

SCREW, 3/8-16 X .75 GR 5

$11.99

$

Usually ships in 2-12 days

0

1460

Snapper 771363

SPACER

$39.99

$

Usually ships in 2-12 days

0

1470

Snapper 771364

HUB

$13.99

$

In Stock, only 1 left!

0

1480

Snapper 771213

CAP, Caster Axle

$11.99

$

In Stock, only 1 left!

0

1490

Snapper 771214

WASHER, 1.010X1.560X.060

$13.99

$

Usually ships in 2-12 days

0

1500

Snapper 771365

BOLT, Shoulder

$23.99

$

Usually ships in 2-12 days

0

1510

Snapper 771366

NUT

$10.99

$

Usually ships in 2-12 days

0

1520

Snapper 771217

SCREW, 3/8-16 X 2.00 GR5

$9.49

$

Usually ships in 2-12 days

0

1530

Snapper 771367

ASSEMBLY, Front Axle

$647.99

$

Usually ships in 2-12 days

0

1540

Snapper 703156

SHCS

$3.99

$

Usually ships in 2-12 days

0

1550

Snapper 771219

BEARING, Ball

$

$

Currently unavailable

1560

Snapper 771220

WASHER, Wave

$5.99

$

Usually ships in 2-12 days

0

1570

Snapper 771221

SPACER, Shoulder

$12.99

$

Usually ships in 2-12 days

0

1580

Snapper 771368

YOKE, Caster Wheel

$151.99

$

Usually ships in 2-12 days

0

1590

Snapper 771369

WHEEL, Caster

$196.99

$

Usually ships in 2-12 days

0
