SZ 2454 (2691573-00) (17CRCACA007) - Snapper 54" Zero-Turn Mower, 24hp (2019) Front Axle Group Parts Diagram

54" Zero-Turn Mower, 24hp

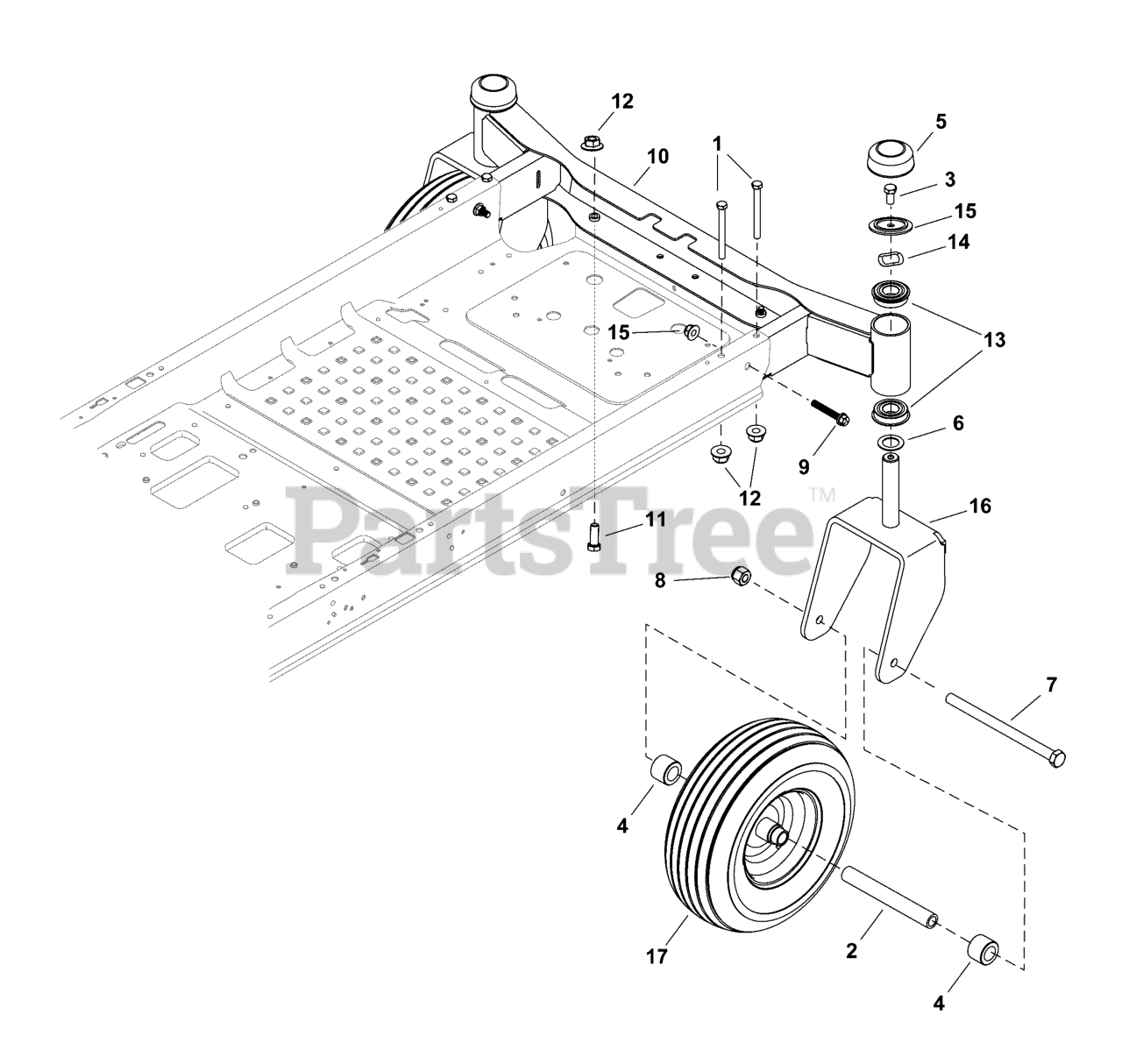

Front Axle Group Parts Diagram

  • Title

1

Snapper 771210

SCREW, 3/8-16 X 3.75 GR5

$12.99

$

Usually ships in 2-12 days

0

2

Snapper 771363

SPACER

$53.99

$

Usually ships in 2-12 days

0

3

Snapper 771146

SCREW, 3/8-16 X .75 GR 5

$15.99

$

Usually ships in 2-12 days

0

4

Snapper 771364

HUB

$16.99

$

Usually ships in 2-12 days

0

5

Snapper 771213

CAP, Caster Axle

$10.99

$

Usually ships in 2-12 days

0

6

Snapper 771214

WASHER, 1.010X1.560X.060

$13.99

$

Usually ships in 2-12 days

0

7

Snapper 771365

BOLT, Shoulder

$29.99

$

Usually ships in 2-12 days

0

8

Snapper 771366

NUT

$13.99

$

Usually ships in 2-12 days

0

9

Snapper 771217

SCREW, 3/8-16 X 2.00 GR5

$11.99

$

Usually ships in 2-12 days

0

10

Snapper 771367

ASSEMBLY, Front Axle

$647.99

$

Usually ships in 2-12 days

0

11

Snapper 771143

SCREW, 3/8-16 X 1 GR5

$10.99

$

Usually ships in 2-12 days

0

12

Snapper 84005894

NUT, 3/8-16, Hex Flange

$

$

Currently unavailable

13

Snapper 771219

BEARING, Ball

$

$

Currently unavailable

14

Snapper 771220

WASHER, Wave

$5.99

$

Usually ships in 2-12 days

0

15

Snapper 771221

SPACER, Shoulder

$12.99

$

Usually ships in 2-12 days

0

16

Snapper 84004098

YOKE, Caster Wheel

$170.99

$

In Stock, only 1 left!

0

17

Snapper 84004099

CASTER, Wheel

$259.99

$

Usually ships in 2-12 days

0
