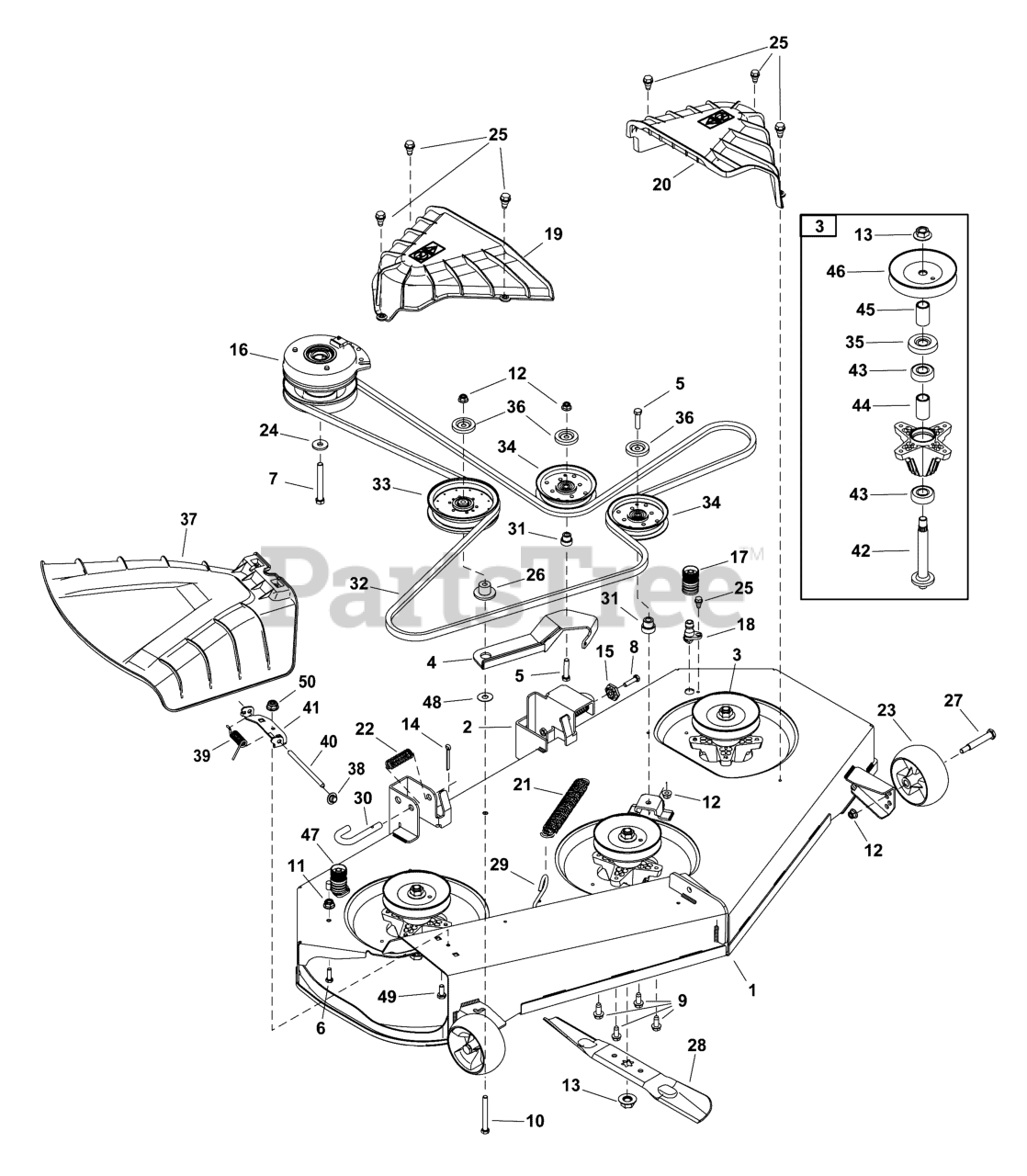

SZ 2454 (2691573-00) (17CRCACA007) - Snapper 54" Zero-Turn Mower, 24hp (2019) Mower Deck Group Parts Diagram

54" Zero-Turn Mower, 24hp

Mower Deck Group Parts Diagram

  • Title

1

MOWER DECK

Note: Not Serviced

$

$

Not available

2

Snapper 84003505

BRACKET, Deck Lift

$136.99

$

Usually ships in 2-12 days

0

3

Snapper 771373

ASSEMBLY, Spindle

Note: (Includes Ref Nos.13,35,43,42,44,45,46)

$286.99

$

In Stock, Qty 8

0

4

Snapper 84003506

ASSEMBLY, Idler Arm

$142.99

$

Usually ships in 2-12 days

0

5

Snapper 771374

SCREW 3/8-16 X 1.75 GR5, Hex

$8.49

$

In Stock, only 1 left!

0

6

Snapper 771319

SCREW, 5/16-18 X 1.00, Hex Cap

$7.99

$

Usually ships in 2-12 days

0

7

Snapper 771375

SCREW, 7/16-20 X 3.5 GR5

$7.49

$

Usually ships in 2-12 days

0

8

Snapper 771315

SCREW, 3/8-16, Hex Flange

$4.99

$

Usually ships in 2-12 days

0

9

Snapper 771311

SCREW, 5/16-18 X .750, Hex Washer

$6.99

$

Usually ships in 2-12 days

0

10

Snapper 771377

SCREW, 3/8-16 X 3.25 GR8

$11.99

$

Usually ships in 2-12 days

0

11

Snapper 84005079

LOCKNUT

$8.99

$

Usually ships in 2-12 days

0

12

Snapper 703333

NUT, 3/8-16, Flanged Lock, GR5

$4.99

$

In Stock, Qty 20+

0

13

Snapper 771318

NUT, 5/8-18 Hex Flange

$10.99

$

In Stock, Qty 8

0

14

Snapper 771320

PIN, 5/32 X 1.25, Cotter

$9.49

$

Usually ships in 2-12 days

0

15

Snapper 771321

GEAR, Deck Adjustment

$19.99

$

Usually ships in 2-12 days

0

16

Snapper 771322

CLUTCH, Electric PTO

$775.99

$

Usually ships in 2-12 days

0

17

Snapper 703557

ADAPTER, Water Nozzle

$41.99

$

Usually ships in 2-12 days

0

18

Snapper 703502

NOZZLE, Water

$5.99

$

In Stock, only 2 left!

0

19

Snapper 771390

COVER, Spindle, RH

$78.99

$

Usually ships in 2-12 days

0

20

Snapper 771391

COVER, Spindle, LH

$55.99

$

Usually ships in 2-12 days

0

21

Snapper 771325

SPRING, 1.25 OD X 1.751, Extension

$38.99

$

Usually ships in 2-12 days

0

22

Snapper 771324

SPRING, .66 X 1.9, Compression

$5.99

$

Usually ships in 2-12 days

0

23

Snapper 771326

WHEEL, 5.0, Deck Ball

$62.99

$

Usually ships in 2-12 days

0

24

Snapper 771328

WASHER, .450 X 1.25 X .164, Flat

$11.99

$

In Stock, only 1 left!

0

25

Snapper 84005076

SCREW, Shoulder, 1/4-20 x 1/2

$8.99

$

Usually ships in 2-12 days

0

26

Snapper 771386

SPACER, Shoulder

$9.49

$

In Stock, only 1 left!

0

27

Snapper 771331

SCREW, .5 X 2.5 X 3/8-16, Shoulder

$14.99

$

In Stock, only 1 left!

0

28

Snapper 771387

BLADE, 18.61" (2N1)

$43.99

$

In Stock, Qty 18

0

29

Snapper 771333

ROD, Deck Spring

$6.99

$

Usually ships in 2-12 days

0

30

Snapper 771334

ROD, Deck Hangar

$19.99

$

Usually ships in 2-12 days

0

31

Snapper 771159

SPACER, Shoulder

$

$

Not available

32

Snapper 771388

V-BELT, B Sec X 148.25 LG

$152.99

$

In Stock, only 1 left!

0

33

Snapper 771337

PULLEY, 5.00 DIA., Idler

$69.99

$

Usually ships in 2-12 days

0

34

Snapper 771389

PULLEY, 4.50" DIA, Idler

$

$

Not available

35

Snapper 771339

SHIELD, Bearing

$10.99

$

In Stock, only 1 left!

0

36

Snapper 771164

PULLEY CAP, Idler Pulley

$10.99

$

Usually ships in 2-12 days

0

37

Snapper 84003507

ASSEMBLY, Chute

$195.99

$

Usually ships in 2-12 days

0

38

Snapper 771327

CAP, Push

$8.99

$

Usually ships in 2-12 days

0

39

Snapper 771346

SPRING, .440 ID X 1.75, Torsion

$7.49

$

Usually ships in 2-12 days

0

40

Snapper 771345

PIN, Hinge

$5.99

$

Usually ships in 2-12 days

0

41

Snapper 771347

BRACKET, Chute, 42”

$24.99

$

Usually ships in 2-12 days

0

42

Snapper 771396

SHAFT, 6.11" LG, Blade Spindle, Star

$89.99

$

In Stock, only 1 left!

0

43

Snapper 771341

BEARING, Ball

$29.99

$

In Stock, Qty 6

0

44

Snapper 771342

SPACER, .792 X 1.060 X 1.860

$12.99

$

Usually ships in 2-12 days

0

45

Snapper 771395

SPACER, .792 X 1.060 X 1.782

$11.99

$

Usually ships in 2-12 days

0

46

Snapper 771393

PULLEY, 5.57" Dia., Spindle

$41.99

$

Usually ships in 2-12 days

0

47

Snapper 771330

CAP, .290 X .500

$7.99

$

Usually ships in 2-12 days

0

48

Snapper 771384

WASHER, 3/8, Flat

$

$

Currently unavailable

49

Snapper 771317

SCREW, 1/4-20 X .62, Hex Cap

$7.99

$

Usually ships in 2-12 days

0

50

Snapper 703463

NUT, Flange Nylock , 1/4-20

$4.49

$

In Stock, only 3 left!
