SZ 2454 (2691573-00) (17CRCACA007) - Snapper 54" Zero-Turn Mower, 24hp (2019) Seat Group Parts Diagram
54" Zero-Turn Mower, 24hp

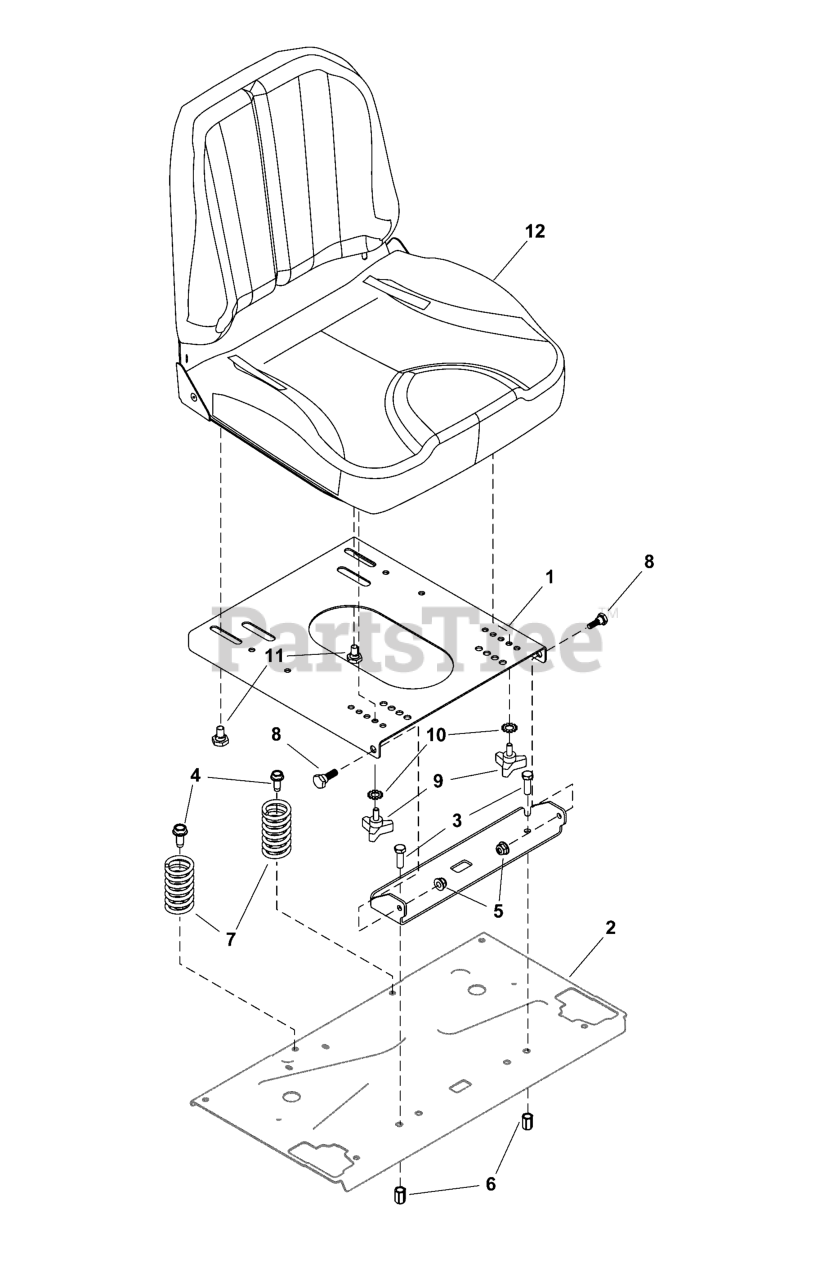

Seat Group Parts Diagram
Snapper 84003482
BASE, Seat Plate Dual Knob
$182.99
$
Usually ships in 2-12 days
Snapper 84003483
BRACKET, Seat Pivot
$68.99
$
Usually ships in 2-12 days
Snapper 771238
SCREW, 5/16-18 X 1.00 GR5
$15.99
$
Usually ships in 2-12 days
Snapper 771311
SCREW, 5/16-18 X .750, Hex Washer
$8.99
$
Usually ships in 2-12 days
Snapper 84005079
LOCKNUT
$8.99
$
Usually ships in 2-12 days
Snapper 771239
NUT, Rivet, 5/16-18
$10.99
$
Usually ships in 2-12 days
Snapper 84003498
SPRING, Compression
$19.99
$
Usually ships in 2-12 days
Snapper 771242
SCREW, .437, Shoulder
$4.99
$
Usually ships in 2-12 days
Snapper 84003500
KNOB, Three Arm
$22.99
$
Usually ships in 2-12 days
Snapper 771189
WASHER, 5/16, EXT., Lock
$9.99
$
Usually ships in 2-12 days
Snapper 84003501
SCREW, Shoulder
$18.99
$
Usually ships in 2-12 days
Snapper 84003502
SEAT, (Black)
$752.99
$
Usually ships in 2-12 days
