SZ-48 (53AH2PUB250) - Cub Cadet 48" Tank Zero-Turn Mower (2012) Kohler CV680-3042 Ignition & Electrical Parts Diagram

48" Tank Zero-Turn Mower

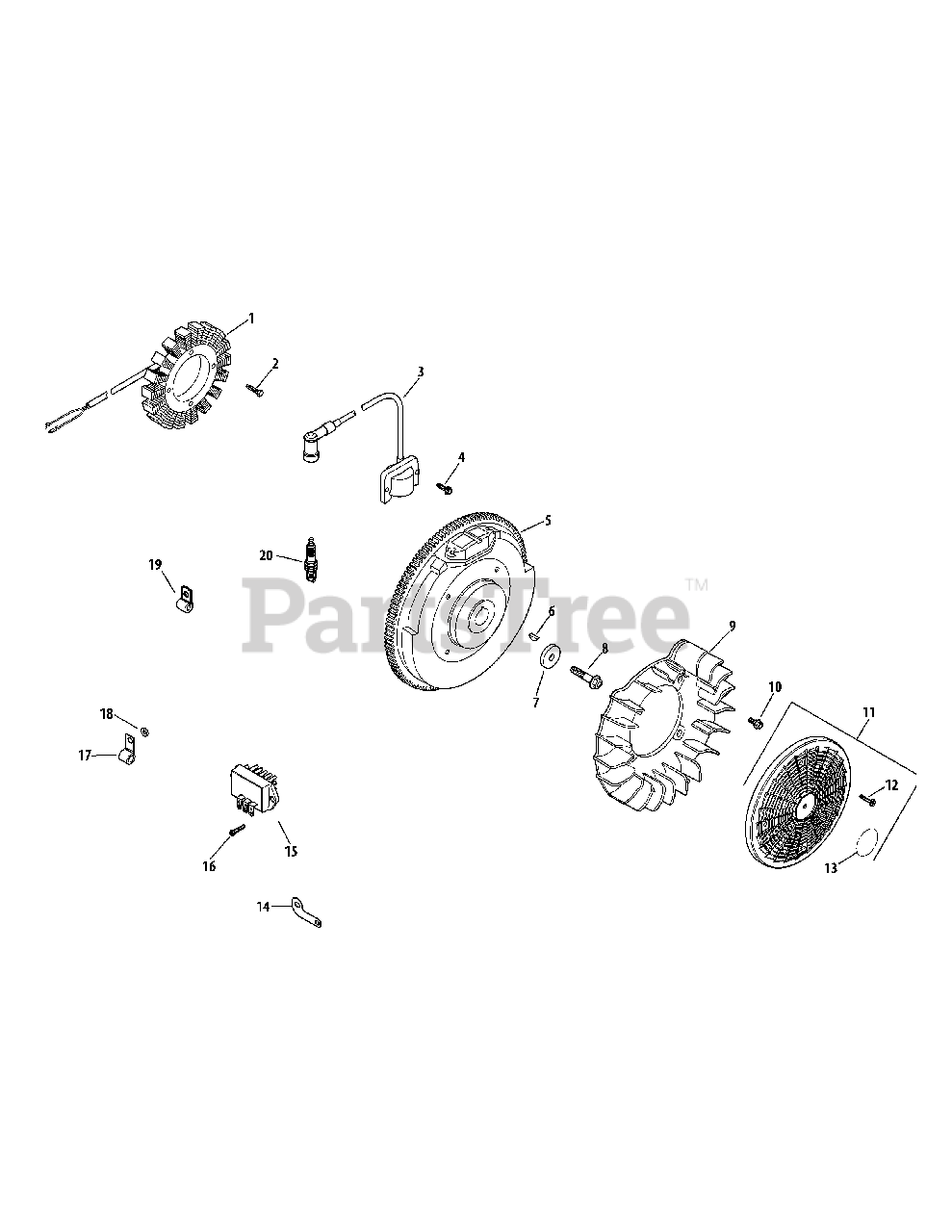

Kohler CV680-3042 Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet KH-237878

15/20 Amp Stator Kit

$149.99

$

In Stock, Qty 14

0

2

Cub Cadet KH-M-548025-S

Screw, M5 x 0.8 x 25
(Superseded to KH-25-086-402-S)

$2.99

$

In Stock, only 2 left!

0

3

Cub Cadet KH-24-584-45-S

Ignition Module Kit (CDI Fixed)
(Superseded to KH-24-584-201-S)

$116.99

$

Usually ships in 3-6 days

0

4

Cub Cadet KH-M-545020-S

Flange Screw, M5 x .8 X 20
(Superseded to KH-25-086-473-S)

$2.99

$

In Stock, Qty 20+

0

5

Cub Cadet KH-24-025-55-S

Flywheel

$310.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-X-42-15

Key, 3/16 X 5/8

$

$

Not available

7

Cub Cadet KH-12-468-03

Flat Washer, 13/32

$

$

Not available

8

Cub Cadet KH-25-086-361-S

Flange Screw, M10 x 1.5 x 45

$4.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-24-157-12-S

Fan

$22.99

$

In Stock, only 2 left!

0

10

Cub Cadet KH-25-086-47

Shoulder Bolt

$

$

Not available

11

Cub Cadet KH-54-755-15

Grass Screen Kit

$

$

Not available

12

Cub Cadet KH-25-086-117-S

Flange Screw, M4 x .7 X 25

$3.49

$

In Stock, only 4 left!

0

13

Cub Cadet KH-24-113-18-S

Grass Screen Decal

$

$

Not available

14

Cub Cadet KH-24-126-137-S

Ground Strap Bracket
(Superseded to KH-24-518-12-S)

$5.99

$

In Stock, only 2 left!

0

15

Cub Cadet KH-25-403-21-S

Rectifier Regulator
(Superseded to KH-25-403-39-S)

$96.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-25-086-157-S

Hex Flange Screw

$2.99

$

In Stock, only 2 left!

0

17

Cub Cadet KH-235173

Cable Clip

$

$

Not available

18

Cub Cadet KH-X-25-63

Flat Washer, 1/4 x 1/2

$

$

Not available

19

Cub Cadet KH-210281-S

Clip

$7.49

$

Usually ships in 2-5 days

0

20

Cub Cadet 759-3336

Spark Plug (Standard)
(Superseded to RC12YC)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet KH-24-176-150-S

Wiring Harness

Note: (Not Shown)

$59.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-176-41

Duplex Lead

Note: (Not Shown)

$

$

Not available

Cub Cadet KH-25-454-07-S

Tie

Note: (Not Shown)

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-518-34-S

20/25 Amp Lead B+

Note: (Not Shown)

$8.49

$

Usually ships in 2-5 days

0
