SZ-54 KH (53RN2PUC050) - Cub Cadet 54" Tank Zero-Turn Mower, Kohler (2014) Kohler CV742-3016 Ignition & Electrical Parts Diagram

54" Tank Zero-Turn Mower, Kohler

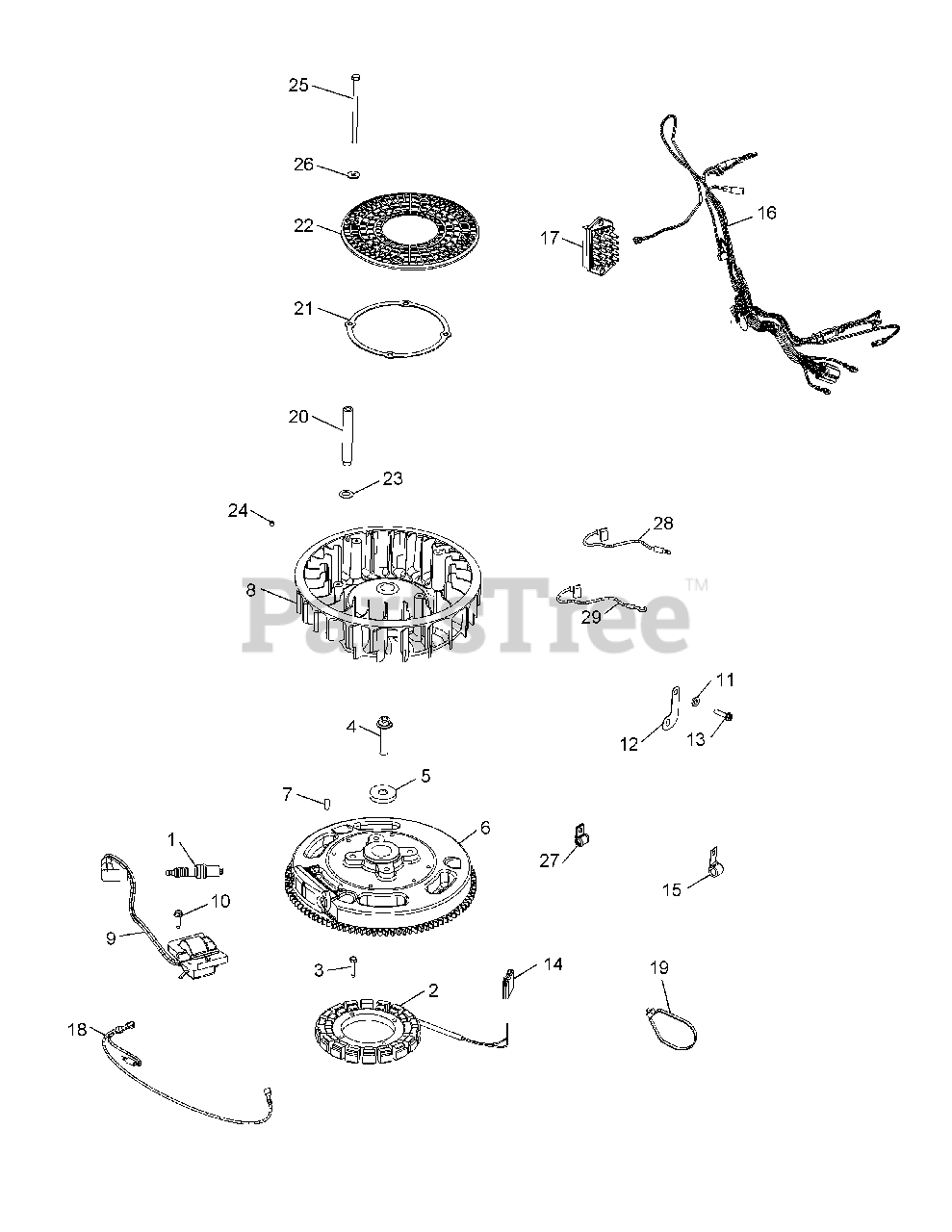

Kohler CV742-3016 Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet KH-12-132-02-S

Spark Plug

$12.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-237878

15 Amp Stator Kit

$149.99

$

In Stock, Qty 14

0

3

Cub Cadet KH-25-086-402-S

Thread Forming Screw

$2.99

$

In Stock, only 2 left!

0

4

Cub Cadet KH-25-086-361-S

Flange Screw, M10 x 1.5 x 45

$4.49

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-12-468-03

Flat Washer, 13/32"

$

$

Not available

6

Cub Cadet KH-24-025-58-S

Flywheel

$310.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-X-42-15

Key, 3/16 x 5/8

$

$

Not available

8

Cub Cadet KH-24-157-12-S

Fan

$22.99

$

In Stock, only 2 left!

0

9

Cub Cadet KH-24-584-92-S

Ignition Module
(Superseded to KH-24-584-175-S)

$64.99

$

In Stock, only 2 left!

0

10

Cub Cadet KH-25-086-473-S

Thread Forming Screw

$2.99

$

In Stock, Qty 20+

0

11

Cub Cadet KH-X-25-63

Flat Washer, 1/4

$

$

Not available

12

Cub Cadet KH-24-126-137-S

Ground Strap Bracket
(Superseded to KH-24-518-12-S)

$5.99

$

In Stock, only 2 left!

0

13

Cub Cadet KH-25-086-157-S

Hi-Lo Hex Flange Screw

$2.99

$

In Stock, only 2 left!

0

14

Cub Cadet KH-25-155-41-S

Connector

$31.99

$

In Stock, only 2 left!

0

15

Cub Cadet KH-235173

Cable Clip

$

$

Not available

16

Cub Cadet KH-24-176-150-S

Wiring Harness

$59.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-25-403-21-S

Rectifier Regulator
(Superseded to KH-25-403-39-S)

$96.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-24-176-41-S

Duplex Lead

$7.99

$

In Stock, only 2 left!

0

19

Cub Cadet KH-25-454-07-S

Tie

$2.49

$

Usually ships in 2-5 days

0

20

Cub Cadet KH-24-112-14

Spacer

$

$

Not available

21

Cub Cadet KH-24-141-06

Support Ring
(Superseded to KH-25-141-08-S)

Note: NLA

$6.99

$

In Stock, only 2 left!

0

22

Cub Cadet KH-24-162-41-S

Grass Screen

$24.99

$

In Stock, only 2 left!

0

23

Cub Cadet KH-24-468-11

Spring Washer, 10 mm

$

$

Not available

24

Cub Cadet KH-25-086-43

Set Screw, #10-24 x 1/4

$

$

Not available

25

Cub Cadet KH-M-603100

Cap Screw, M6 x 1.0 x 99.5

$

$

Not available

26

Cub Cadet KH-X-25-53

Flat Washer, 1/4

$

$

Not available

27

Cub Cadet KH-210281-S

Clip

$7.49

$

Usually ships in 2-5 days

0

28

Cub Cadet KH-24-518-09

Oil Sentry Lead

Note: NLA

$

$

Not available

29

Cub Cadet KH-25-518-34-S

Lead

$8.49

$

Usually ships in 2-5 days

0
