SZ-60 (53AI2PUD050) - Cub Cadet 60" Tank Zero-Turn Mower (2013) Electrical Parts Diagram

60" Tank Zero-Turn Mower

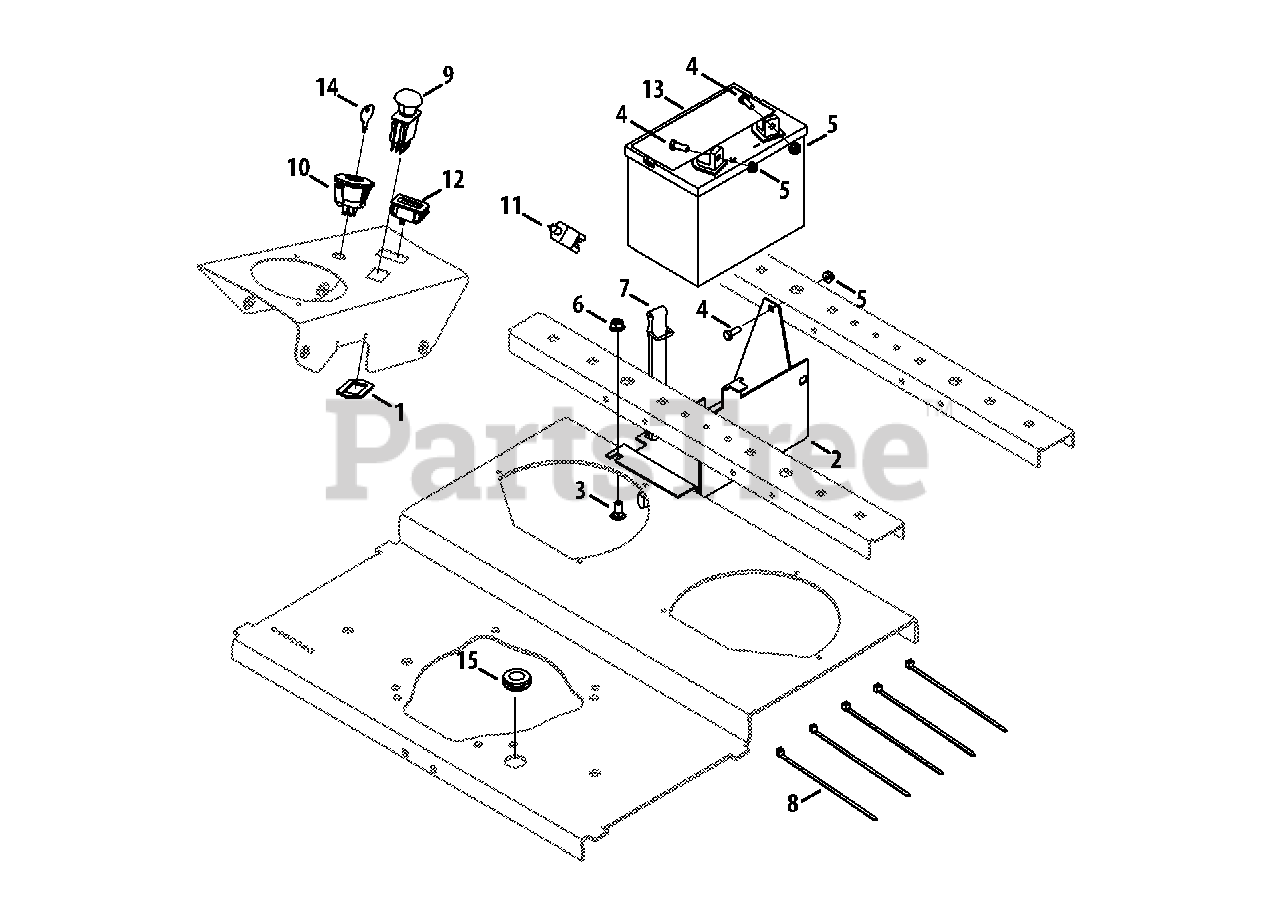

Electrical Parts Diagram

  • Title

1

Cub Cadet 01009905

PTO Switch Bracket

$25.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-07855-0637

Battery Bracket

$47.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0389

Carriage Bolt, 3/8-16 x .750

$4.49

$

In Stock, Qty 10

0

4

Cub Cadet 710-3015

Hex Cap Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 712-04064

Nut, 1/4-20, Flangelock

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-04065

Nut, 3/8-16, Flangelock

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 723-3064

Battery Strap

$27.99

$

In Stock, only 4 left!

0

8

Cub Cadet 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

9

Cub Cadet 925-04174

Electric PTO Switch
(Superseded to 925-04174A)

$65.99

$

In Stock, Qty 20+

0

10

Cub Cadet 925-04228

Key Switch

$36.99

$

In Stock, Qty 20+

0

11

Cub Cadet 725-05113

Plunger Switch, NO/NC

$13.99

$

In Stock, only 3 left!

0

12

Cub Cadet 725-05438

Hour Meter

$97.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 925-1707D

Battery

$

$

Not available

14

Cub Cadet 625-05000

Key, Assembly
(Superseded to 925-1745A)

$15.99

$

In Stock, Qty 20+

0

15

Cub Cadet 735-04285

Rubber Grommet, .75 x 1.062 x .50

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet 929-04180

Wire Harness

Note: (not shown)

$197.99

$

Usually ships in 3-6 days

0

Cub Cadet 929-04195

Hour Meter Harness

Note: (not shown)

$7.99

$

Usually ships in 3-6 days

0

Cub Cadet 02002822

Wire Harness Adaptor, (Kaw. only)

Note: (not shown)

$21.99

$

Usually ships in 3-6 days

0
