SZ-60 (53AI2PUD050) - Cub Cadet 60" Tank Zero-Turn Mower (2013) Kawasaki FX850V-S11 Control Equipment Parts Diagram

60" Tank Zero-Turn Mower

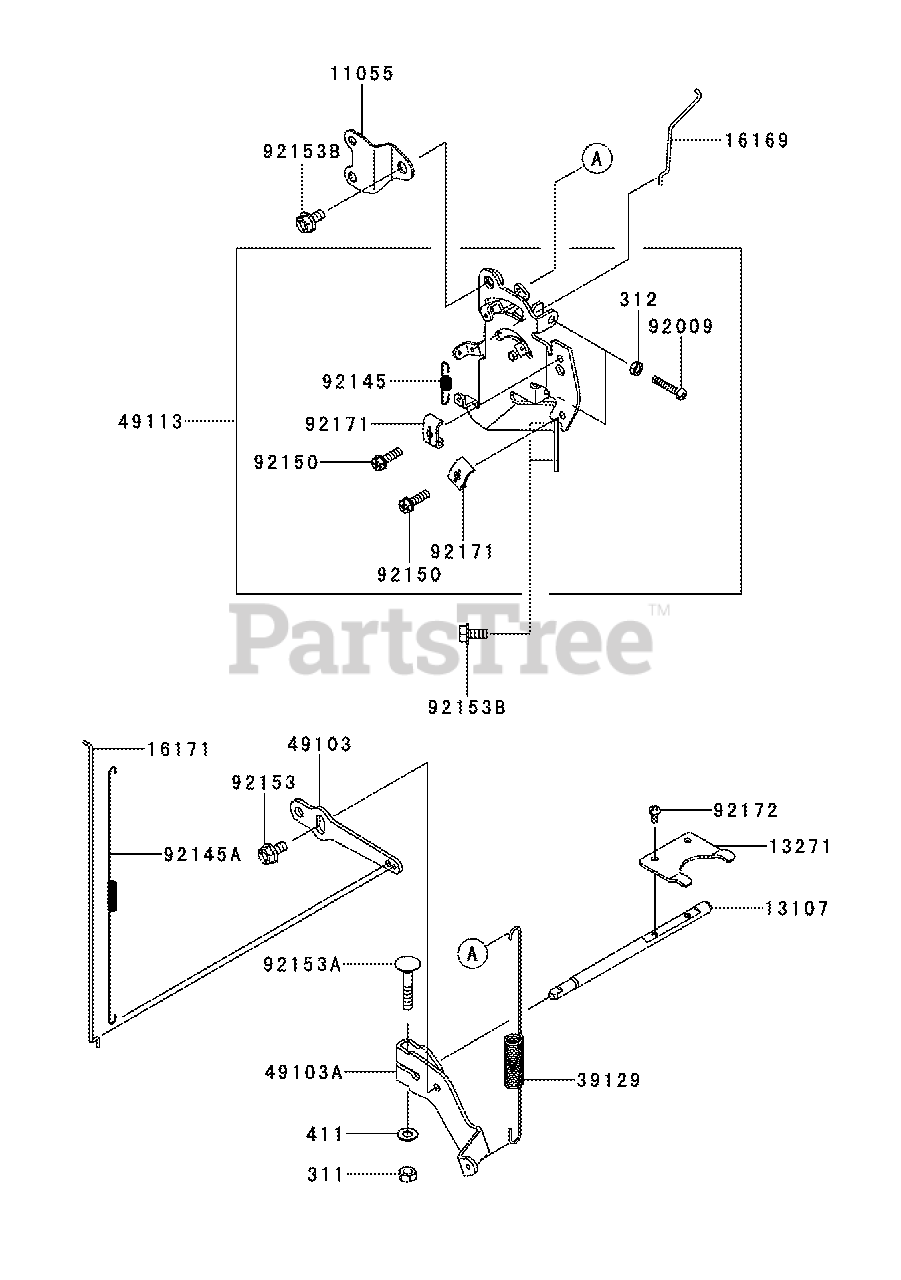

Kawasaki FX850V-S11 Control Equipment Parts Diagram

  • Title

11055

Cub Cadet KM-11055-7001

Bracket

$3.49

$

In Stock, only 1 left!

0

13107

Cub Cadet KM-13107-7047

Shaft, Governor

$11.99

$

In Stock, only 1 left!

0

13271

Cub Cadet KM-13271-7038

Plate

$3.49

$

In Stock, Qty 5

0

16169

Cub Cadet KM-16169-7020

Link-Choke
(Superseded to KM-16169-0007)

$0.99

$

In Stock, Qty 14

0

16171

Cub Cadet KM-16171-7020

Link
(Superseded to KM-16171-0032)

$1.99

$

In Stock, Qty 10

0

39129

Cub Cadet KM-39129-7020

Spring-Governor
(Superseded to KM-49113-6015)

$34.99

$

In Stock, only 1 left!

0

49103

Cub Cadet KM-49103-7012

Arm-Governor

$3.49

$

In Stock, Qty 7

0

49103A

Cub Cadet KM-49103-7018

Arm-Governor

$3.99

$

In Stock, Qty 8

0

49113

Cub Cadet KM-49113-7060

Panel-Comp-Control
(Superseded to KM-49113-6015)

$34.99

$

In Stock, only 1 left!

0

92009

Cub Cadet KM-92009-2381

Screw,5x30

$0.99

$

In Stock, Qty 5

0

92145

Cub Cadet KM-92145-7044

Spring

$1.99

$

In Stock, Qty 5

0

92145A

Cub Cadet KM-92145-7055

Spring
(Superseded to KM-92145-1808)

$1.49

$

In Stock, Qty 12

0

92150

Cub Cadet KM-92150-2182

Bolt,5x18

$0.99

$

In Stock, Qty 20+

0

92153

Cub Cadet KM-92153-0009

Bolt,6x12

$1.99

$

In Stock, only 4 left!

0

92153A

Cub Cadet KM-92153-7033

Bolt,6x35
(Superseded to KM-92154-2697)

$0.99

$

In Stock, only 3 left!

0

92153B

Cub Cadet KM-92153-7043

Bolt,6x12
(Superseded to KM-92154-2938)

$0.99

$

In Stock, Qty 8

0

92171

Cub Cadet KM-92171-7018

Clamp

$2.99

$

Usually ships in 2-5 days

0

92172

Cub Cadet KM-92172-7033

Screw, 4x8

$0.99

$

Usually ships in 2-5 days

0

311

Cub Cadet KM-311AA0600

Nut-Hex, 6MM

$0.99

$

In Stock, Qty 20+

0

312

Cub Cadet KM-312AA0500

Nut-Hex, 5MM

$0.99

$

In Stock, Qty 8

0

411

Cub Cadet KM-411AA0600

Washer-Plain

$4.49

$

Usually ships in 2-5 days

0
