SZ-60 (53AI2PUD050) - Cub Cadet 60" Tank Zero-Turn Mower (2013) Kawasaki FX850V-S11 Cylinder & Crankcase Parts Diagram

60" Tank Zero-Turn Mower

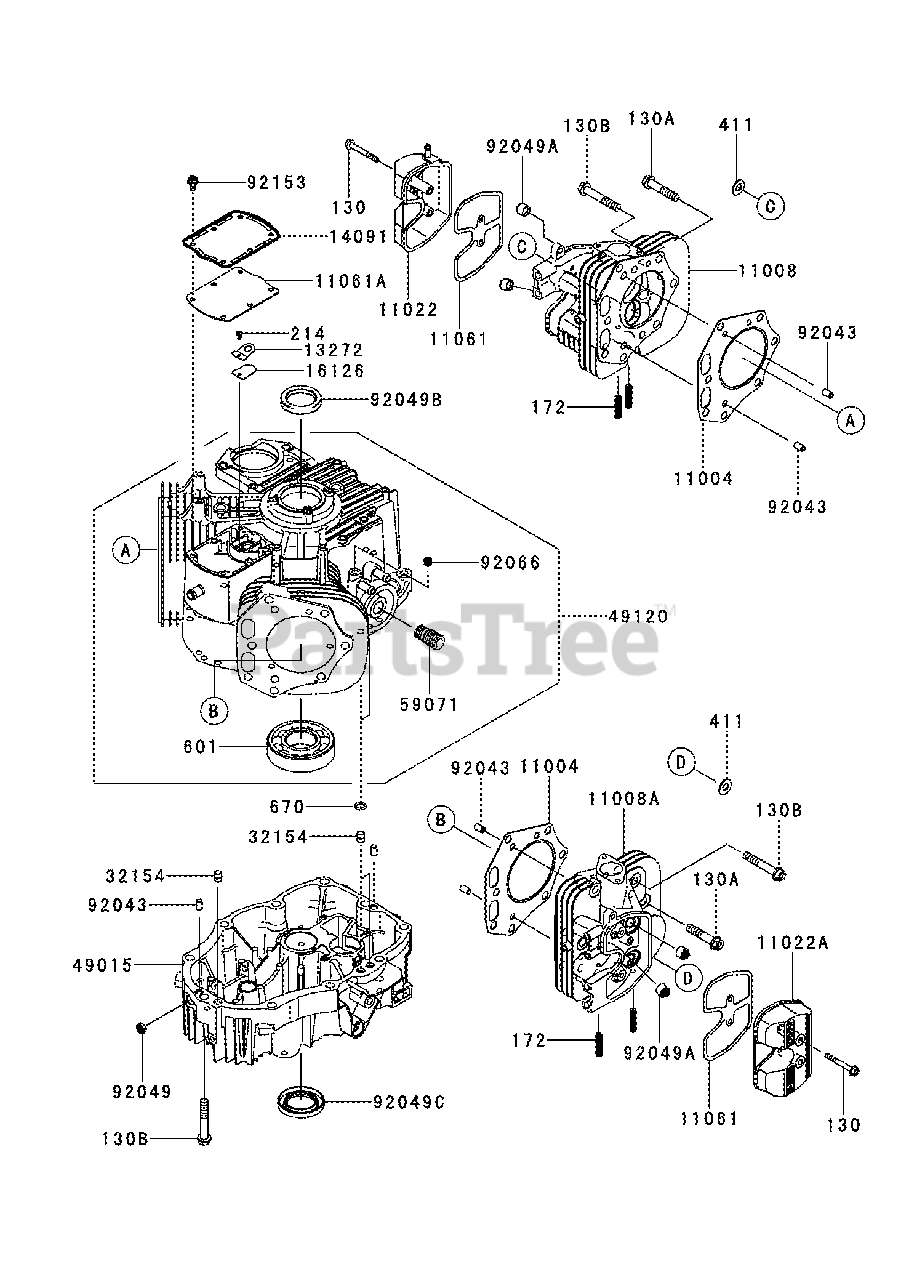

Kawasaki FX850V-S11 Cylinder & Crankcase Parts Diagram

  • Title

11004

Cub Cadet KM-11004-7025

Gasket-Head

$50.99

$

In Stock, Qty 20+

0

11008

Cub Cadet KM-11008-7036

Head-Comp-Cylinder
(Superseded to KM-11008-0901)

$232.99

$

Usually ships in 2-5 days

0

11008A

Cub Cadet KM-11008-7037

Head-Comp-Cylinder
(Superseded to KM-11008-0937)

$247.99

$

In Stock, Qty 10

0

11022

Cub Cadet KM-11022-6008

Case-Rocker
(Superseded to KM-11022-6012)

$

$

Not available

11022A

Cub Cadet KM-11022-7025

Case Rocker
(Superseded to KM-99996-6122)

$47.99

$

Usually ships in 2-5 days

0

11061

Cub Cadet KM-11061-7080

Gasket, Case Rocker
(Superseded to KM-11061-0899)

$5.99

$

In Stock, Qty 20+

0

11061A

Cub Cadet KM-11061-7081

Gasket, Breather

$2.99

$

In Stock, only 1 left!

0

13272

Cub Cadet KM-13272-7004

Plate, Breather

$

$

Not available

14091

Cub Cadet KM-14091-7060

Cover, Breather

$2.99

$

Usually ships in 2-5 days

0

16126

Cub Cadet KM-16126-7020

Valve, Breather

$4.99

$

In Stock, Qty 19

0

32154

Cub Cadet KM-32154-7019

Pipe
(Superseded to KM-92043-0858)

$2.49

$

In Stock, Qty 17

0

49015

Cub Cadet KM-49015-7088

Cover-Crankcase
(Superseded to KM-49015-0730)

$217.99

$

Usually ships in 3-6 days

0

49120

Cub Cadet KM-49120-0724

Crankcase-Comp

$634.99

$

Usually ships in 2-5 days

0

59071

Cub Cadet KM-59071-2079

Joint

$6.49

$

In Stock, Qty 9

0

92043

Cub Cadet KM-92043-7024

Pin
(Superseded to KM-92043-1263)

$0.99

$

In Stock, Qty 20+

0

92049

Cub Cadet KM-92049-7019

Seal-Oil,So 8x14x5 HS

$2.49

$

In Stock, Qty 20+

0

92049A

Cub Cadet KM-92049-7020

Seal, Oil, 7x15x13

$4.49

$

In Stock, Qty 20+

0

92049B

Cub Cadet KM-92049-7024

Seal-Oil,SD 40x54x9 R HS

$6.49

$

In Stock, Qty 11

0

92049C

Cub Cadet KM-92049-7026

Seal-Oil,SD 40x62x8 L VS

$8.99

$

In Stock, Qty 20+

0

92066

Cub Cadet KM-92066-7026

Plug
(Superseded to KM-92066-0881)

$4.49

$

In Stock, Qty 11

0

92153

Cub Cadet KM-92153-7043

Bolt, 6x12
(Superseded to KM-92154-2938)

$0.99

$

In Stock, Qty 8

0

130

Cub Cadet KM-130BA0650

Bolt-Flanged, 6x50

$1.49

$

In Stock, Qty 6

0

130A

Cub Cadet KM-130CA1050

Bolt-Flanged, 10x50

$4.49

$

Usually ships in 2-5 days

0

130B

Cub Cadet KM-130CA1060

Bolt-Flanged, 10x60

$4.49

$

In Stock, Qty 5

0

172

Cub Cadet KM-172BA0818

Bolt-Stud, 8x18

$1.99

$

In Stock, Qty 20+

0

214

Cub Cadet KM-214AA0408

Screw-Pan+-,4x8

$3.99

$

In Stock, only 2 left!

0

411

Cub Cadet KM-411AA1000

Washer, 10MM

$0.99

$

In Stock, only 4 left!

0

601

Cub Cadet KM-601A6308

Bearing-Ball
(Superseded to KM-92045-0712)

$

$

Not available

670

Cub Cadet KM-670B2011

O Ring, 11MM

$1.49

$

In Stock, only 4 left!

0

Cub Cadet 02003200P

Engine Assembly
(Superseded to 952SFX850S11)

Note: (not shown)

$4887.99

$

Usually ships in 3-6 days

0
