SZ-60 (53AI2PUD050) - Cub Cadet 60" Tank Zero-Turn Mower (2013) Mower Deck Parts Diagram

60" Tank Zero-Turn Mower

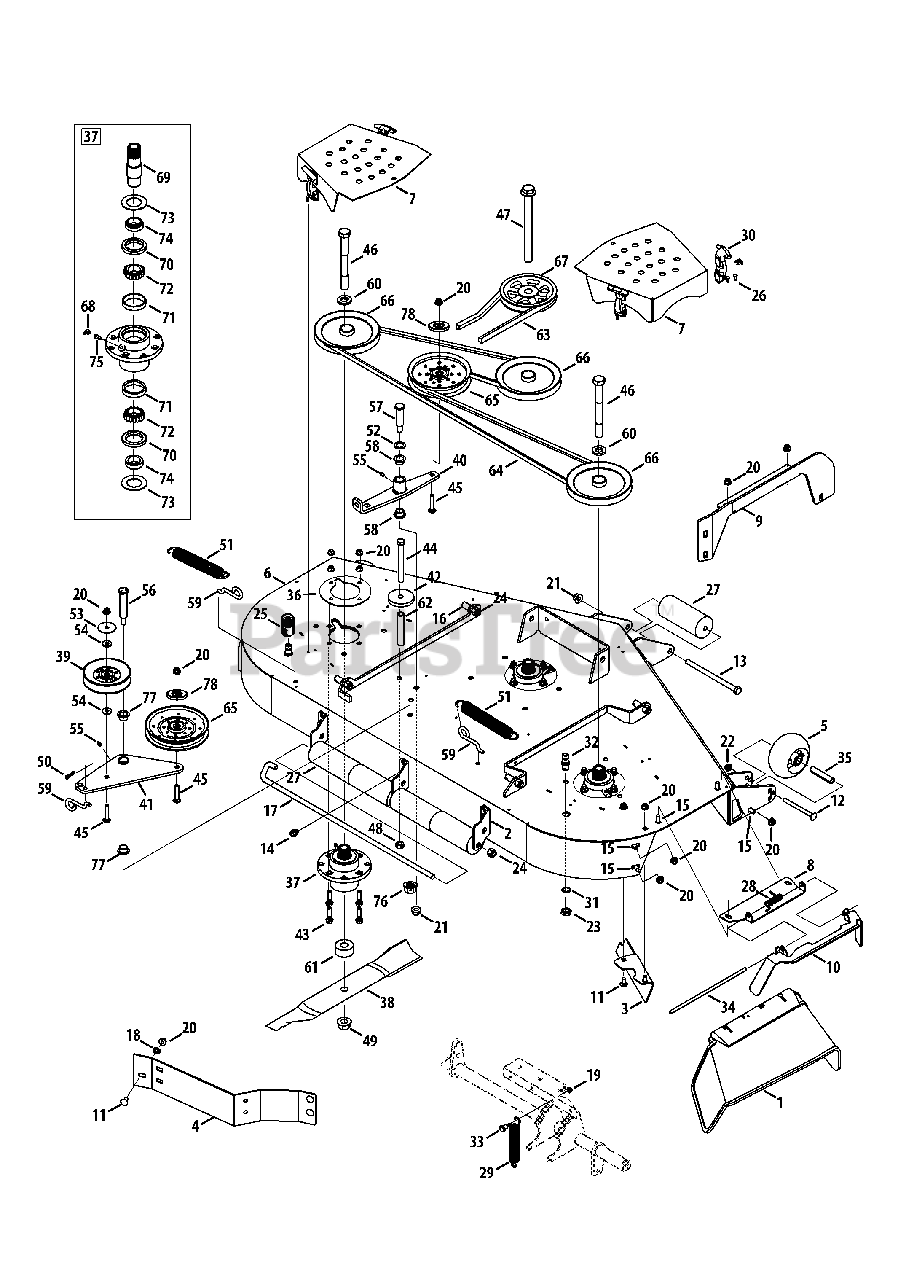

Mower Deck Parts Diagram

  • Title

1

Cub Cadet 01006693P

Chute Deflector

$64.99

$

In Stock, Qty 20+

0

2

Cub Cadet 01008790

Roller Mount Bracket

Variations

Cub Cadet 01008790-0637

Roller Mounting Bracket, Black - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

Cub Cadet 01008790-4021

Roller Mounting Bracket - CUB YELLOW 2 (4021)

$34.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 02005195-0637

Chute Baffle

$42.99

$

In Stock, only 1 left!

0

4

Cub Cadet 02005694-0637

Baffle, 60" Adjustment

$52.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 634-3159

Complete Wheel, 5.00 Dia.

$31.99

$

In Stock, Qty 20+

0

6

Cub Cadet 680-00217A-4021

60" Deck
(Superseded to 759-05121B)

$1654.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-06871-4021

Deck Belt Cover

$85.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-08091-0637

Chute Deflector Bracket

$39.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-08747A-0637

Deck Support Plate

$82.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-08810A-0637

Chute Extension Bracket

$59.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0389

Carriage Bolt, 3/8-16 x .750

$4.49

$

In Stock, Qty 10

0

12

Cub Cadet 710-05384

Carriage Bolt, 3/8-16 x 4.00

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-05394A

Hex Cap SCrew, 1/2-13 x 7.50

$9.99

$

In Stock, only 4 left!

0

14

Cub Cadet 710-0773

Screw, 3/8-16 x .500

$6.99

$

In Stock, Qty 5

0

15

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 711-05604

Pin, 1/2-13 x .625 x 1.2

$10.99

$

In Stock, Qty 20+

0

17

Cub Cadet 711-05664

J-Hook w/ Threaded Roller

$20.99

$

In Stock, Qty 7

0

18

Cub Cadet 712-0229

Push Nut, 3/8

$3.49

$

In Stock, Qty 20+

0

19

Cub Cadet 712-04064

Nut, 1/4-20, Flangelock

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-04065

Nut, 3/8-16, Flangelock

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-04150

Nut, 1/2-13, Flangelock

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-05007

Nut, 3/8-16, Centerlock

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 912-0641

Hex Nut, M16-1.5
(Superseded to 712-0641)

$5.99

$

In Stock, Qty 20+

0

24

Cub Cadet 712-3083

Nut, 1/2-13, Hexlock

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 921-04041

Water Nozzle Adaptor

$21.99

$

In Stock, Qty 20+

0

26

Cub Cadet 728-04033

Pop Rivet, 3/16

$3.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 731-3005

Front Roller

$26.99

$

In Stock, Qty 20+

0

28

Cub Cadet 732-04797

Torsion Spring, 0.639 x 2.16

$10.99

$

In Stock, Qty 11

0

29

Cub Cadet 732-04929

Extension Spring, .969 x 6.180

$8.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 935-04038

T-Handle Latch Draw

$14.99

$

In Stock, Qty 20+

0

31

Cub Cadet 936-0760

Lock Washer, 17 x 23.8 x 1.95

$3.99

$

In Stock, Qty 14

0

32

Cub Cadet 737-04003D

Deck Water Nozzle

$21.99

$

In Stock, Qty 20+

0

33

Cub Cadet 738-04222

Shoulder Bolt, .437 x .50, 1/4-20

$2.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 747-3384

Chute Deflector Rod

$26.99

$

In Stock, Qty 6

0

35

Cub Cadet 750-3193

Wheel Spacer

$17.99

$

In Stock, Qty 20+

0

36

Cub Cadet 703-08898-0637

Spindle Support Plate

$48.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 918-05132

Spindle Assembly

$354.99

$

In Stock, Qty 10

0

38

Cub Cadet 942-04415

Hi-Lift Blade, 21.0

$35.99

$

In Stock, Qty 20+

0

39

Cub Cadet 756-04522

Idler Pulley

$36.99

$

In Stock, Qty 18

0

40

Cub Cadet 680-00167A-0637

Deck Idler Arm
(Superseded to 680E00167A)

$69.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 680-00319-0637

Idler Assembly
(Superseded to 680E00319)

$109.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 703-08855-0637

Spacer, .5375 x 2.75 x .375
(Superseded to 703E08855)

$15.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 710-04829

Carriage Bolt, 3/8-16 x 1.5

$6.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 710-0382

Hex Cap Screw, 1/2-13 x 5.00

$11.99

$

In Stock, only 2 left!

0

45

Cub Cadet 710-04157

Carriage Bolt, 3/8-16 x 2.00

$8.49

$

In Stock, only 1 left!

0

46

Cub Cadet 710-05387

Hex Cap Screw, 3/4-16 x 7.00

$13.99

$

In Stock, Qty 19

0

47

Cub Cadet 710-05388

Hex Cap Screw, 3/4-16 x 9.00

$29.99

$

In Stock, Qty 20+

0

48

Cub Cadet 712-3022

Nut, 1/2-13, Hexlock

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 712-3078

Nut, 3/4-16, Flangelock

$9.49

$

In Stock, Qty 20+

0

50

Cub Cadet 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

51

Cub Cadet 732-04911

Extension Spring, 1.248 x 8.5

$14.99

$

In Stock, Qty 5

0

52

Cub Cadet 936-0287

Washer, .793 x 1.24 x .06
(Superseded to 736-0287)

$

$

Not available

53

Cub Cadet 736-3040

Washer, .406 x 1.92 x .060

$5.99

$

In Stock, Qty 20+

0

54

Cub Cadet 736-3052

Washer, .406 x 1.00 x .105

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 937-0146

Grease Fitting

$5.49

$

In Stock, only 2 left!

0

56

Cub Cadet 738-05030

Shoulder Bolt, 1.0 x 3.15, 5/8-18

$25.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 938-3110

Shoulder Bolt, .750 x 2.23, 1/2-13

$30.99

$

In Stock, Qty 7

0

58

Cub Cadet 741-0338

Flange Bearing, .75 x .52

$8.49

$

In Stock, Qty 5

0

59

Cub Cadet 747-05658

Spring Rod Hook

$7.99

$

In Stock, Qty 6

0

60

Cub Cadet 750-05553

Spacer, .812 x .218

$9.49

$

In Stock, Qty 20+

0

61

Cub Cadet 750-05617

Spacer, .760 x 2.00 x .925

$11.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 750-3213

Spacer, .405 x .75 x 3.875

$14.99

$

In Stock, only 2 left!

0

63

Cub Cadet 954-04296

V-Belt

$123.99

$

In Stock, Qty 7

0

64

Cub Cadet 954-04319

Deck Belt

$90.99

$

In Stock, Qty 18

0

65

Cub Cadet 756-04487

Idler Pulley

$62.99

$

In Stock, Qty 5

0

66

Cub Cadet 756-04489

Spindle Pulley

$39.99

$

In Stock, Qty 9

0

67

Cub Cadet 756-04496A

Drive Pulley

$139.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 737-3001

Grease Fitting, 45 degree, 1/4-28

$11.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 911-05758

Spindle Shaft

$66.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 921-0385

Seal, Oil

$25.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 941-3050

Cup Bearing

$21.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 941-3051

Cone Bearing

$45.99

$

In Stock, only 4 left!

0

73

Cub Cadet 736-04642

Washer, 1.50 x 2.52 x .075

$7.49

$

Usually ships in 3-6 days

0

74

Cub Cadet 750-05695

Ring, Seal

$30.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 737-04373

Straight Adapter Fitting

$10.99

$

In Stock, Qty 8

0

76

Cub Cadet 712-04327

Nut, 5/8-18, Flangelock

$6.99

$

In Stock, only 1 left!

0

77

Cub Cadet 741-04552

Flange Bearing, 1.00 x .75

$8.99

$

In Stock, Qty 8

0

78

Cub Cadet 721-04516

Pulley Cap

$13.99

$

In Stock, only 1 left!

0
