SZ-60 (53AI2PUD050) - Cub Cadet 60" Tank Zero-Turn Mower (2013) Seat Assembly Parts Diagram

60" Tank Zero-Turn Mower

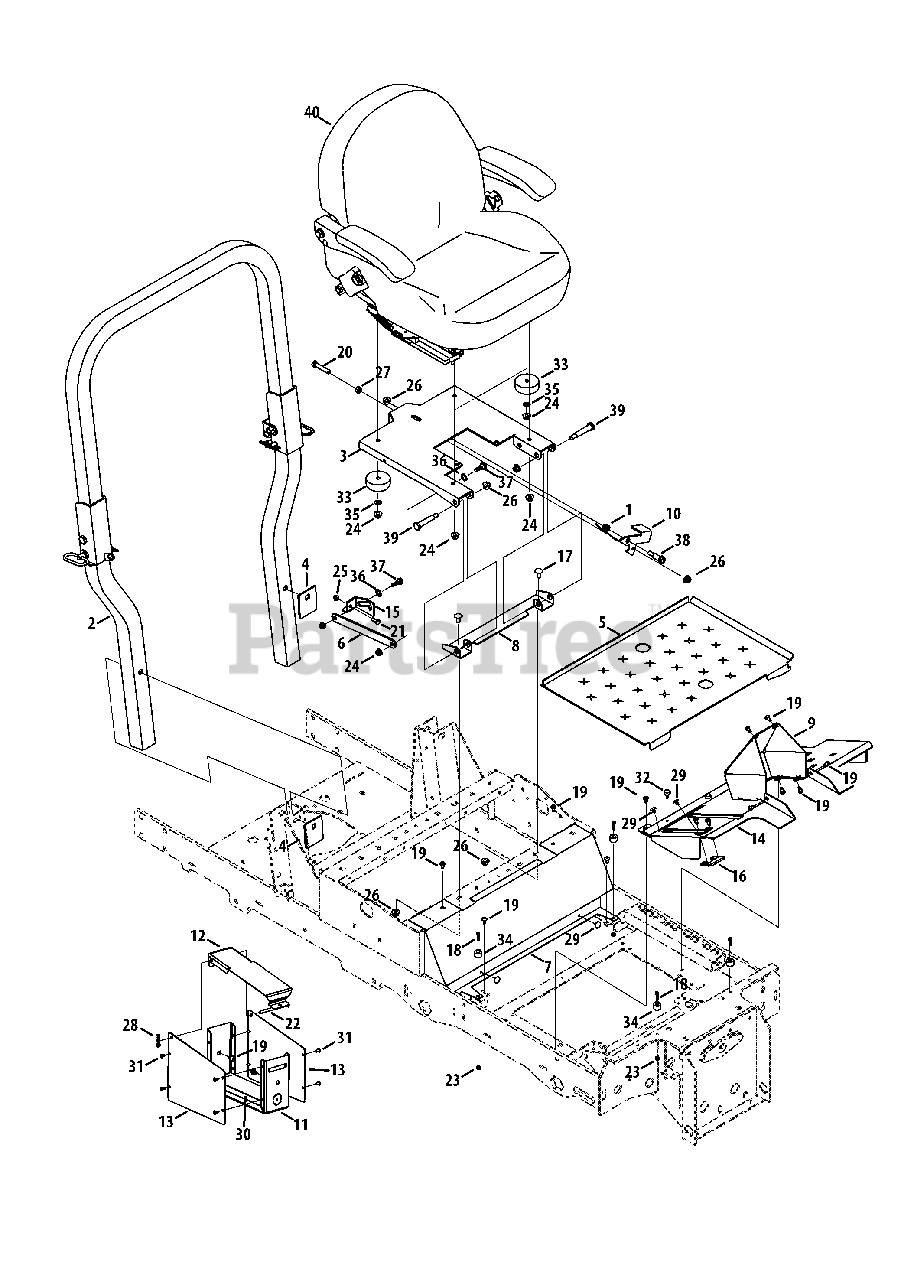

Seat Assembly Parts Diagram

  • Title

1

Cub Cadet 01008140P

Torsion Spring, .725 x 1.0 x .09

$32.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-00175

Folding ROPS Assembly

$876.99

$

Usually ships in 3-6 days

0

2

Cub Cadet CP-3-10131

SCREW-HEX HEAD 3.00"

Note: (not shown)

$10.99

$

Usually ships in 3-6 days

0

2

Cub Cadet CP-3-10141

SCREW-HEX HEAD 3.50"

Note: (not shown)

$11.99

$

Usually ships in 3-6 days

0

2

Cub Cadet CP-3-10485

NUT 1/2-13

Note: (not shown)

$6.49

$

Usually ships in 3-6 days

0

2

Cub Cadet CP-3-12466

FLAT WASHER .500

Note: (not shown)

$3.49

$

Usually ships in 3-6 days

0

2

Cub Cadet CP-3-17811

U-LOCK-NYLON LANYARD

Note: (not shown)

$7.99

$

Usually ships in 3-6 days

0

2

Cub Cadet CP-3-18413

RETAINING WASHER

Note: (not shown)

$11.99

$

In Stock, only 1 left!

0

2

Cub Cadet CP-3-18417

HITCH PIN w/R-CLIP
(Superseded to CP-3-18417P)

Note: (not shown)

$47.99

$

Usually ships in 3-6 days

0

2

Cub Cadet CP-3-18418

FOAM WASHER

Note: (not shown)

$7.99

$

Usually ships in 3-6 days

0

2

Cub Cadet CP-3-18480

BUMPER w/FLANGE

Note: (not shown)

$5.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-07814-0637

Seat Mounting Bracket

$91.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-07880-0637

Deck Reinforcement Plate

$10.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-08016-0637

Floor Panel

$91.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-08198-0637

Seat Lockout Bracket

$12.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-08223-0637

Floor Panel Tray

$64.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-08241-0637

Seat Mounting Bracket

$40.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-08323-0637

Column Cover

$63.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-08480-4021

Seat Lever Latch

$31.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-08511-0637

Storage Box

$35.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-08513-0637

Storage Box Lid

$35.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-08519-0637

Storage Box Side Panel

$17.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 703-08596-0637

Pedal Cover

$114.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 703-08758A-0637

Seat Lockout Mount

$31.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 703-08857-0637

Stop Pedal Bracket
(Superseded to 703E08857)

$25.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-0389

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 10

0

18

Cub Cadet 710-04868

Socket Head Screw, 10-24 x .75

$3.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-05070

Screw, 1/4-20 x .5
(Superseded to 710-05070A)

$6.49

$

In Stock, Qty 12

0

20

Cub Cadet 710-3011

Hex Cap Screw, 3/8-16 x 2.25

$6.49

$

In Stock, Qty 20+

0

21

Cub Cadet 710-3015

Hex Cap Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 711-05607A

Clevis Pin, .25 x 3.5

$5.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 712-0161

Nut, #10-24, Hexlock

$4.49

$

In Stock, Qty 9

0

24

Cub Cadet 712-04063

Nut, 5/16-18, Flangelock

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-04064

Nut, 1/4-20, Flangelock

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 712-04065

Nut, 3/8-16, Flangelock

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 912-3017

Nut, 3/8-16, Hex
(Superseded to 712-3017)

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 714-04040

Cotter Pin, Bow Tie

$1.49

$

In Stock, Qty 20+

0

29

Cub Cadet 726-04072A

Clip, .250 Dia. x .500

$3.49

$

In Stock, Qty 13

0

30

Cub Cadet 727-04385

Adhesive Pad

$7.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 728-04016

Rivet, 3/16 x .325

$3.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 735-0271A

Bumper, .62 Dia. x .3

$8.99

$

In Stock, Qty 20+

0

33

Cub Cadet 735-04286

Rubber Bumper, 2.5 x 1.0

$7.99

$

In Stock, Qty 18

0

34

Cub Cadet 735-04287

Rubber Bumper, .75 x .500

$3.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 936-0275

Washer, .344 x .688 x .065
(Superseded to 736-0275)

$

$

Not available

36

Cub Cadet 736-3024

Washer, .469 x .750 x .06

$3.49

$

Usually ships in 3-6 days

0

37

Cub Cadet 938-0296

Shoulder Screw, .437 x .268, 5/16-18
(Superseded to 738-0296)

$3.99

$

In Stock, Qty 13

0

38

Cub Cadet 738-0966A

Shoulder Bolt, .50 x .925, 3/8-16

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 738-1011A

Shoulder Bolt, .500 x 2.23, 3/8-16

$7.99

$

In Stock, Qty 12

0

40

Cub Cadet 757-04160

Seat, w/ Suspension (60" only)

$986.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 925-3166

Seat Switch

Note: (Snap Mount Normally Closed (Grey) not shown)

$15.99

$

In Stock, Qty 20+

0

40

Cub Cadet SI-181773

Armrest Set

Note: (Not shown)

$203.99

$

Usually ships in 3-6 days

0

40

Cub Cadet SI-310843

Seat Belt Kit

Note: (Not shown)

$184.99

$

Usually ships in 3-6 days

0

40

Cub Cadet SI-310736VN489

Cover-Seat Back
(Superseded to SI-310736VN502)

Note: (Not shown)

$199.99

$

Usually ships in 3-6 days

0

40

Cub Cadet SI-310737VN478

Cover-Seat Cushion

Note: (Not shown)

$137.99

$

Usually ships in 3-6 days

0

40

Cub Cadet SI-110658

Track-Single Lock

Note: (Not shown)

$183.99

$

Usually ships in 3-6 days

0
