Scag SZL36-18FR - Scag Liberty Z 36" Zero-Turn Mower, 18hp Kawasaki (SN: P8400001 - P8499999) 36 DRIVE SYSTEM COMPONENTS Parts Lookup with Diagrams

1

Scag 485192

Engine, Kawasaki - FR600V

Note: Available through individual engine manufacturer.

$

Currently unavailable 

2

Oil Drain, Kawasaki

Note: Available through individual engine manufacturer.

$

Not available 

3

Scag 484210

Gasket, Exhaust

$4.49

$

Usually ships in 2-12 days

4

Scag 04025-04

Nut, M8 x 1.25 Hex Special

$3.49

$

Usually ships in 2-12 days

5

Scag 04033-01

Lockwasher, M8 Spring (Kawasaki)

$0.99

$

Usually ships in 2-12 days

6

Scag 485193

Muffler, Kawasaki FR/FS600V

$101.99

$

Usually ships in 2-12 days

7

Scag 48136-13

Clamp, .69" Max. / .25" Min. Dia.

$7.49

$

In Stock, only 3 left!

8

Scag 485809

Hose, RH Transaxle

$11.99

$

Usually ships in 2-12 days

9

Scag 483438

Reservoir Assembly

$38.99

$

In Stock, only 2 left!

10

Scag 483514

Cap, Hydraulic Tank

$23.99

$

Usually ships in 2-12 days

11

Scag 04117-03

Nut, Flanged Elastic Stop 1/4-20

$0.99

$

In Stock, only 3 left!

12

Scag 48136-05

Clamp, Cable 3/4" I.D.

$3.99

$

In Stock, only 2 left!

13

Scag 485401

Hose, LH Transmission

$14.99

$

Usually ships in 2-12 days

14

Scag 04003-02

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

15

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FS

$0.99

$

In Stock, Qty 13

16

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

17

Scag 452847

Shaft Weldment, Control Arm

$46.99

$

Usually ships in 2-12 days

18

Scag 04001-06

BOLT, HEX HEAD, 1/4-20 X 5/8

$0.99

$

In Stock, only 3 left!

19

Scag 04063-01

Key, 1/4 x 1/4 x 1.25" Pulley Mtg.

$1.49

$

In Stock, only 1 left!

20

Scag 485956

Pulley, 4-1/2" - 1" Bore

$46.99

$

Usually ships in 2-12 days

21

Scag 462715

Electric Clutch Assembly

$260.99

$

Usually ships in 2-12 days

22

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25 (48, 52)

$2.99

$

In Stock, Qty 10

23

Scag 04030-05

Lockwasher, 7/16â? Spring

$0.99

$

In Stock, Qty 14

24

Scag 04102-12

Bolt, Hex Head 7/16-20 x 3¼" w/Patch

$3.49

$

Usually ships in 2-12 days

25

Scag 427283

Lever, Dump Valve

$

Not available 

26

Scag 04062-02

HAIR PIN, .08 DIAMETER X 1-3/16"

$0.99

$

In Stock, Qty 20+

27

Scag 482800-02

Fitting, 9/16" O-Ring x 3/8" Hose

$17.99

$

Usually ships in 2-12 days

28

Scag 485801

Wheel Assembly, 20 x 8.0-10

$212.99

$

Usually ships in 2-12 days

28

Scag 485802

Rim W/Valve Stem 10 x 5.0

$79.99

$

Usually ships in 2-12 days

28

Scag 485803

Tire, 20 x 8.0-10

$141.99

$

Usually ships in 2-12 days

29

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black

$0.99

$

In Stock, Qty 20+

30

Scag 04132-01

Threaded insert, Hex Head (Pressed)

$2.49

$

Usually ships in 2-12 days

31

Scag 04028-02

Wheel Nut, 1/2-20 x 13/16

$1.99

$

In Stock, Qty 20+

32

Scag 04001-13

Bolt, Hex Head, 5/16-18 x 2.75 Zinc.

$0.99

$

In Stock, only 1 left!

33

Scag 485806

Transaxle, LH- ZT-2800

$1636.99

$

Usually ships in 2-12 days

34

Scag 485807

Transaxle, RH- ZT2800

$1636.99

$

Usually ships in 2-12 days

35

Scag 485795-01

Fitting, O-Ring 9/16 Hose

$11.99

$

Usually ships in 2-12 days

36

Scag 04069-01

Pin, Rue Cotter 3/8" Diameter

$1.49

$

In Stock, Qty 10

37

Scag 431039

Spacer, Axle

$10.99

$

In Stock, only 2 left!

38

Scag 04001-39

BOLT, HEX HEAD, 5/16-18 X 2-1/4

$0.99

$

In Stock, only 3 left!

39

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 9

40

Scag 44225

Rod, Brake

$26.99

$

Usually ships in 2-12 days

41

Scag 43876

Joint, Swivel

$10.99

$

Usually ships in 2-12 days

42

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4" - 61"

$0.99

$

In Stock, Qty 20+

43

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FS

$0.99

$

In Stock, Qty 20+

44

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 16

45

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 10

46

Scag 485808

Belt, Transmission SZL-36

$27.99

$

Usually ships in 2-12 days

47

Scag 04001-51

Capscrew, Hex Head 3/8-16 x 3-3/4"

$1.49

$

In Stock, Qty 20+

48

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

49

Scag 486045

Pulley, 3-1/2" Dia.

$21.99

$

In Stock, Qty 12

50

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3" - 52"

$1.49

$

In Stock, Qty 19

51

Scag 431049

Spacer, Controls

$1.99

$

Usually ships in 2-12 days

52

Scag 48224

BEARINGS, BALL, NEUTRAL RETURN

$13.99

$

In Stock, Qty 20+

53

Scag 463017

Trans. Idler Arm Assy. (Includes 24, 79)

$69.99

$

Usually ships in 2-12 days

54

Scag 43720

Spacer, Idler Pulley - SFZ61

$4.99

$

Usually ships in 2-12 days

55

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

56

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 10

57

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

58

Scag 463186

Brake Lever Assembly (INCL 59,60)

$58.99

$

Usually ships in 2-12 days

59

Scag 482102

Grip, Brake Handle

$3.99

$

In Stock, only 2 left!

60

Scag 483453-05

Bearing

$2.49

$

Usually ships in 2-12 days

61

Scag 43969

Pivot, Brake Lever

$2.99

$

Usually ships in 2-12 days

62

Scag 04001-31

Capscrew, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 10

63

Scag 44231

Rod, Upper Brake Linkage

$12.99

$

Usually ships in 2-12 days

64

Scag 04107-08

Bolt, Hex Head 3/8-16 x 3.0

$2.49

$

Usually ships in 2-12 days

65

Scag 485794

Linkage Assembly, Steering

$57.99

$

Usually ships in 2-12 days

66

Scag 04001-10

Bolt, 5/16 - 18 x 1 - 1/4" Hex Head

$0.99

$

In Stock, Qty 20+

67

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-1/2" - Front

$0.99

$

In Stock, Qty 20+

68

Scag 04001-02

Bolt, Hex Head, 1/4-20 x 1-1/4"

$0.99

$

Usually ships in 2-12 days

69

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 20+

70

Scag 463163

Handlebar W/ Grip, SZL-36

$67.99

$

Usually ships in 2-12 days

71

Scag 485835

Lever, Control Arm

$25.99

$

Usually ships in 2-12 days

72

Scag 462941

Control Arm Weldment, SZL-36

$72.99

$

Usually ships in 2-12 days

73

Scag 04001-17

Bolt, Hex Head 5/16-18 x 2-1/2" (x3) (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 10

74

Scag 43833

Spacer, Pump Dampener

$18.99

$

Usually ships in 2-12 days

75

Scag 484193

Damper, Steering

$74.99

$

In Stock, Qty 7

76

Scag 463023

Bellcrank Assembly, Brake

$99.99

$

Usually ships in 2-12 days

77

Scag 483538

Spring, Brake

$13.99

$

Usually ships in 2-12 days

78

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

79

Scag 483112

Spring, Transmission Drive

$14.99

$

In Stock, only 1 left!

80

Scag 04021-05

Bolt, Hex Head 3/8-16 x 1" Ser. Flg.

$0.99

$

In Stock, Qty 20+

81

Scag 483600

Spring, Deck Latch

$15.99

$

In Stock, only 3 left!

82

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

83

Scag 431073

Spacer, Bearing

$33.99

$

Usually ships in 2-12 days

84

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FS

$0.99

$

In Stock, Qty 20+

84

Scag 04031-03

Lockwasher, 5/16" Ext. Tooth (Kohler x1)

$0.99

$

Usually ships in 2-12 days

85

Scag 04001-04

Bolt, Hex Head, 1/4-20 x 1-1/2"

$0.99

$

In Stock, Qty 17

86

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

87

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

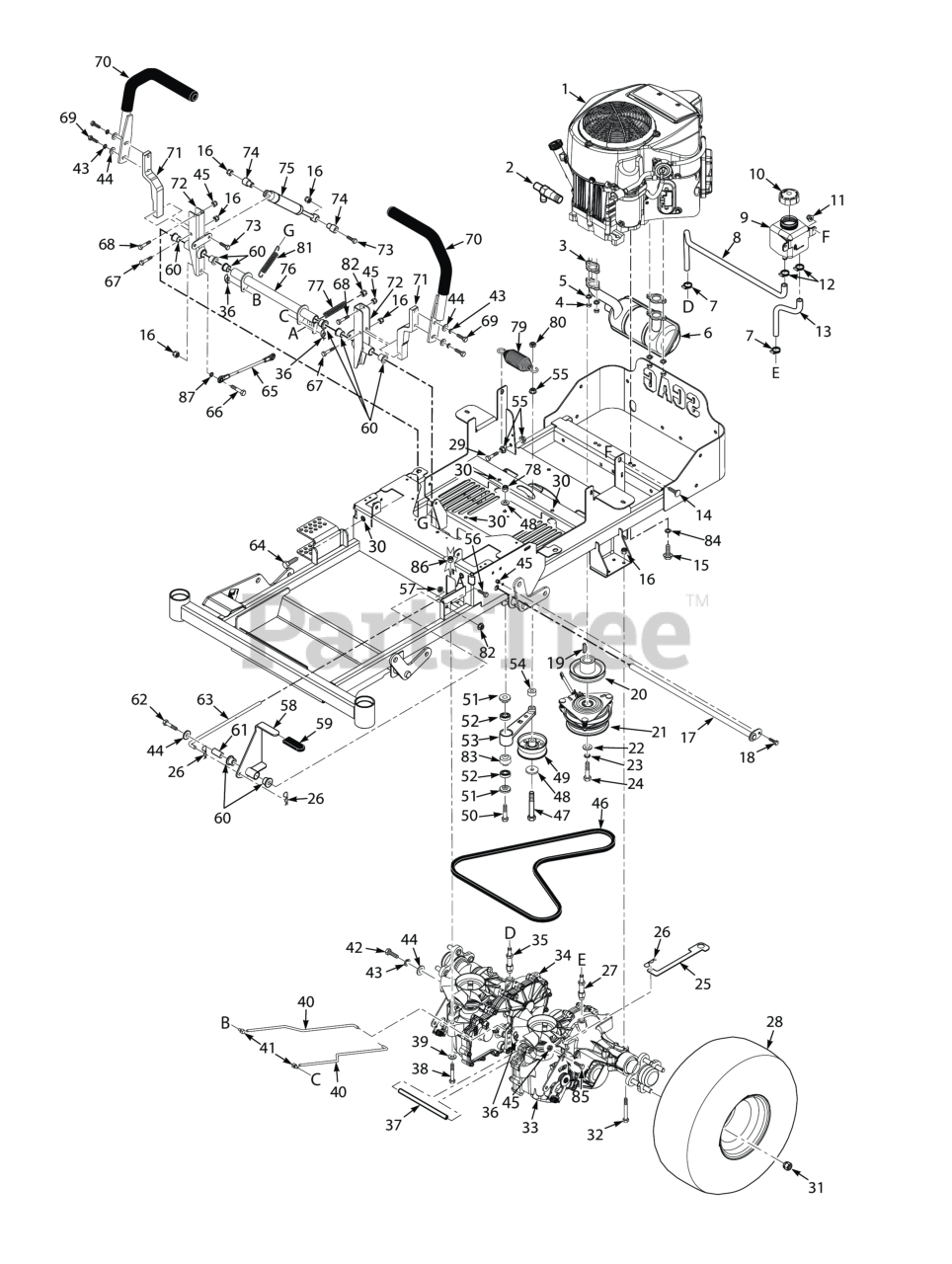

SZL36-18FR - Scag Liberty Z 36" Zero-Turn Mower, 18hp Kawasaki (SN: P8400001 - P8499999) 36 DRIVE SYSTEM COMPONENTS Parts Diagram
