SZL36H-18FR - Scag Liberty Z 36" Zero-Turn Mower, 18hp Kawasaki (SN: R6800001 - R6899999) 36H SHEET METAL COMPONENTS Parts Diagram

Liberty Z 36" Zero-Turn Mower, 18hp Kawasaki

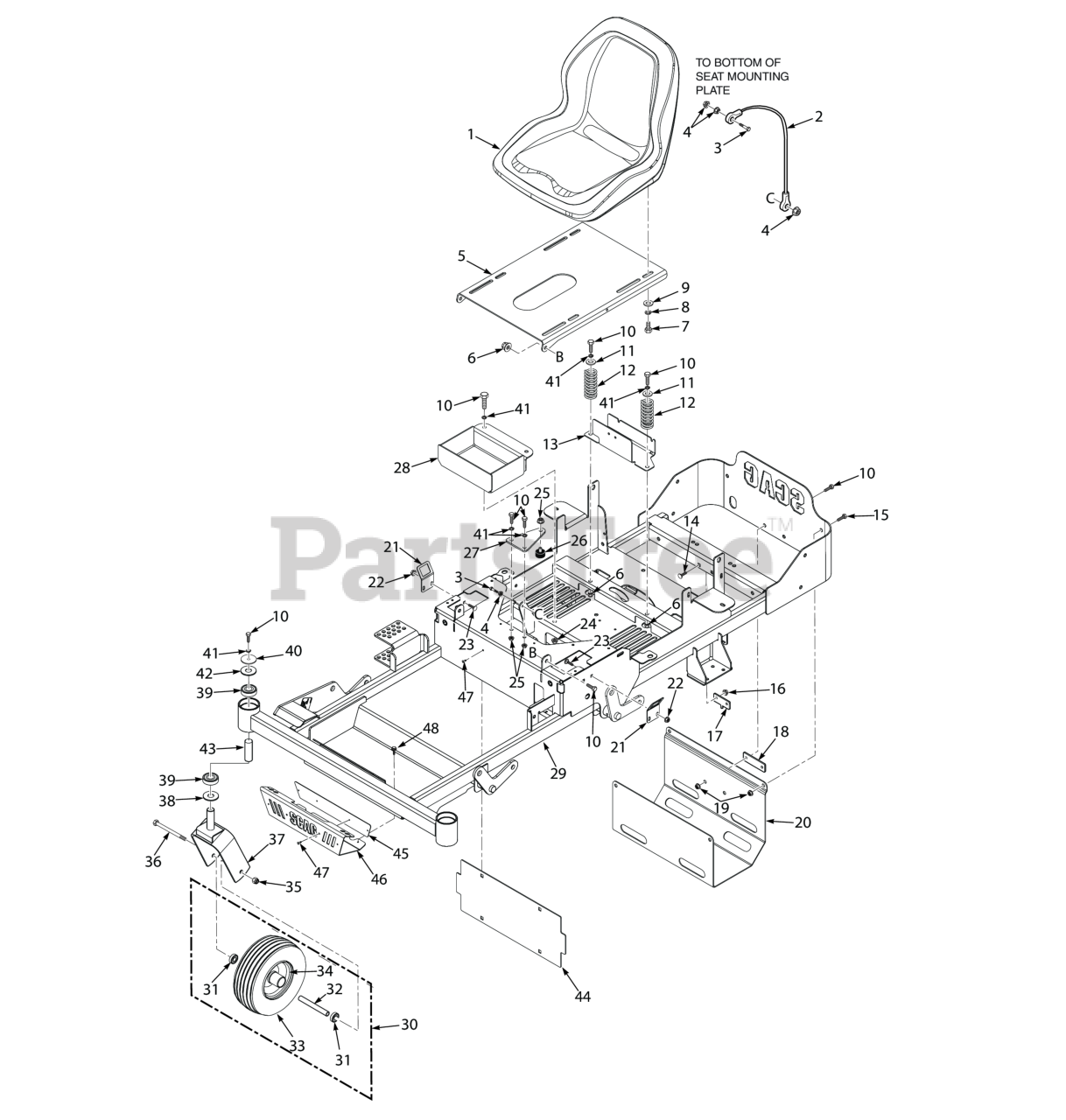

36H SHEET METAL COMPONENTS Parts Diagram

  • Title

1

Scag 486499

Seat, SZL

$454.99

$

Usually ships in 2-12 days

0

2

Scag 483559

Cable, Seat Stop

$8.99

$

In Stock, only 1 left!

0

3

Scag 04001-59

SERR. FLG. HEX HEAD CAPSCREW, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 15

0

4

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

5

Scag 463331

Seat-Plate W/Decal

$30.99

$

Usually ships in 2-12 days

0

6

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

7

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

8

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0

9

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 9

0

10

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 20+

0

11

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 16

0

12

Scag 483372

Spring, Seat

$13.99

$

Usually ships in 2-12 days

0

13

Scag 427341

Seat Stop

$9.99

$

Usually ships in 2-12 days

0

14

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

15

Scag 04001-18

Bolt, Hex Head, 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 7

0

16

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

17

Scag 427961

Plate, Anti-Rotation

$9.49

$

Usually ships in 2-12 days

0

18

Scag 428187

Plate, Spacer

$8.99

$

Usually ships in 2-12 days

0

19

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

20

Scag 428131

Skid Plate, SZL-36

$76.99

$

Usually ships in 2-12 days

0

21

Scag 426727

Bracket, Switch

$11.99

$

Usually ships in 2-12 days

0

22

Scag 04117-03

Nut, Flanged Elastic Stop 1/4-20

$0.99

$

In Stock, only 3 left!

0

23

Scag 04003-02

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

24

Scag 04132-01

Threaded insert, Hex Head (Pressed)

$2.49

$

Usually ships in 2-12 days

0

25

Scag 04132-01

Threaded insert, Hex Head (Pressed)

$2.49

$

Usually ships in 2-12 days

0

26

Scag 481284

Bumper, Rubber 5/16-18 x 5/8"

$16.99

$

In Stock, only 2 left!

0

27

Scag 428183

Battery Hold Down

$16.99

$

Usually ships in 2-12 days

0

28

Scag 428186

Battery Box

$55.99

$

Usually ships in 2-12 days

0

29

Scag 463211

Frame Assembly, SZL-36

$

$

Not available

30

Scag 485207

Caster Wheel Assembly

$96.99

$

In Stock, only 2 left!

0

31

Scag 485243

Bearing

$13.99

$

In Stock, Qty 8

0

32

Scag 43974

Spacer, Wheel Bearings

$15.99

$

Usually ships in 2-12 days

0

33

Scag 483417

Tire, 11 x 4-5.00 2-Ply

$61.99

$

Usually ships in 2-12 days

0

34

Scag 485242

Rim Assembly

$89.99

$

Usually ships in 2-12 days

0

35

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

0

36

Scag 04001-80

Bolt, Hex Head 1/2-13 x 6-1/2" (52V)

$5.99

$

In Stock, Qty 15

0

37

Scag 463183

Caster Assembly

$189.99

$

Usually ships in 2-12 days

0

Scag 453060

Yoke Weldment, Caster

$70.99

$

Usually ships in 2-12 days

0

38

Scag 424636

Spacer, Yoke

$4.49

$

Usually ships in 2-12 days

0

39

Scag 483466

Bearing

$8.99

$

In Stock, only 1 left!

0

40

Scag 04041-38

Flatwasher, 3/8-.406 x 2.25" x .1875

$3.49

$

In Stock, Qty 10

0

41

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FS

$0.99

$

In Stock, Qty 20+

0

42

Scag 04040-11

Flatwasher, 7/16" (.500 x 1.25 x .083")

$0.99

$

In Stock, Qty 13

0

43

Scag 43736

Spacer, Caster Bearing

$6.49

$

Usually ships in 2-12 days

0

44

Scag 428141

Plate, Backing

$9.99

$

Usually ships in 2-12 days

0

45

Scag 427875

Plate, Decal

$6.49

$

Usually ships in 2-12 days

0

46

Scag 427868

Bumper. Front

$42.99

$

Usually ships in 2-12 days

0

47

Scag 04090-03

Rivot, 3/16 x .402 POP

$0.99

$

Usually ships in 2-12 days

0

48

Scag 04011-29

Screw, 1/4-20 x .375"

$0.99

$

In Stock, Qty 6

0
