SZL48-22KT - Scag Liberty Z 48" Zero-Turn Mower, 22hp Kohler (SN: K7100400 - K7199999) Electrical System Parts Diagram

Liberty Z 48" Zero-Turn Mower, 22hp Kohler

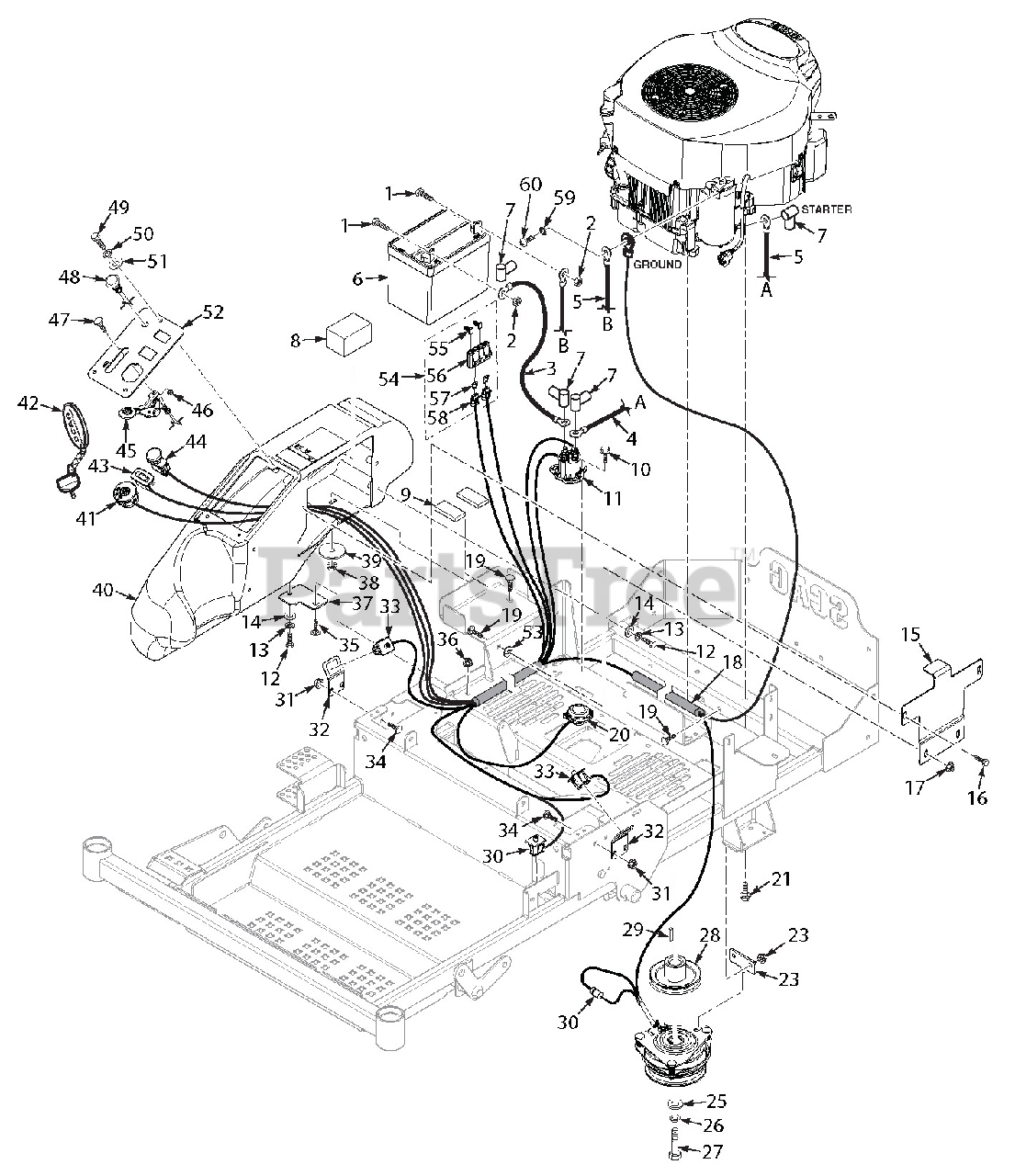

Electrical System Parts Diagram

  • Title

1

Scag 04001-44

Bolt, Hex Head 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 10

0

2

Scag 04020-02

Nut, 1/4-20 UNC

$0.99

$

In Stock, Qty 9

0

3

Scag 48029-06

Cable, Battery - 18" Red

$12.99

$

In Stock, only 1 left!

0

4

Scag 48029-13

Cable, Battery - 25" Red

$14.99

$

In Stock, only 2 left!

0

5

Scag 48029-15

Cable, Battery - 36" Black

$17.99

$

In Stock, only 1 left!

0

6

Scag 485212

Battery, 12v - 230CCA

Note: Not available through Scag Power Equipment. Purchase locally.

$

$

Currently unavailable

7

Scag 48126

Rubber Boot

$8.99

$

Usually ships in 2-12 days

0

8

Scag 485506

Pad, Battery - Rubber

$3.99

$

In Stock, only 1 left!

0

9

Scag 485505

Pad, Battery - Rubber

$1.49

$

Usually ships in 2-12 days

0

10

Scag 04011-13

Screw, 1/4-20 x 3/4" Shakeproof
(Superseded to 04011-14)

$0.99

$

In Stock, Qty 13

0

11

Scag 483278

Solenoid, Sealed

$53.99

$

In Stock, only 1 left!

0

12

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

13

Scag 04030-03

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

14

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 9

0

15

Scag 426766

Battery Hold Down

$24.99

$

Usually ships in 2-12 days

0

16

Scag 04017-15

Bolt, Hex Head 5/16-18 x 1/2" Serrated Flange

$0.99

$

In Stock, Qty 9

0

17

Scag 04117-01

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

18

Scag 485360

Wire Harness

$157.99

$

Usually ships in 2-12 days

0

19

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 15

0

20

Scag 483474

Switch, Double Pole - Twist

$32.99

$

Usually ships in 2-12 days

0

21

Scag 04011-07

Screw, Hex Head 3/8-16 x 1-1/4" Self Tap

$3.49

$

In Stock, Qty 11

0

22

Scag 04117-01

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

23

Scag 426726

Plate, Anti-Rotation

$11.99

$

Usually ships in 2-12 days

0

24

Scag 462715

Clutch, GT1

$260.99

$

Usually ships in 2-12 days

0

25

Scag 04041-28

Flatwasher, 7/16-.496 x 1.75 x .25

$2.99

$

In Stock, Qty 10

0

26

Scag 04030-05

Lockwasher, 7/16"

$0.99

$

In Stock, Qty 14

0

27

Scag 04102-06

Bolt, Hex Head 7/16-20 x 3" w/Patch

$2.49

$

In Stock, Qty 9

0

28

Scag 484595

Pulley, 4-1/2" Dia. - 1" Bore

$28.99

$

In Stock, only 1 left!

0

29

Scag 04063-01

Key, 1/4 x 1/4 x 1-1/4"

$1.49

$

In Stock, only 3 left!

0

30

Scag 483589

Diode (part of wire harness)

$41.99

$

Usually ships in 2-12 days

0

31

Scag 04117-03

Nut, 1/4-20 Flange Elastic Stop

$0.99

$

In Stock, only 3 left!

0

32

Scag 426727

Bracket, Switch

$11.99

$

Usually ships in 2-12 days

0

33

Scag 483473

Switch, Double Pole - Plunger

$17.99

$

Usually ships in 2-12 days

0

34

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

35

Scag 04003-04

Bolt, Carriage 5/16-181 x 1"

$0.99

$

In Stock, only 4 left!

0

36

Scag 04019-03

Nut, 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 16

0

37

Scag 426579

Mounting Bracket, Fuel Tank Front

$46.99

$

Usually ships in 2-12 days

0

38

Scag 04019-03

Nut, 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 16

0

39

Scag 04041-38

Flatwasher, 3/8-.406 x 2.25 x .188

$3.49

$

In Stock, Qty 10

0

40

Scag 485331

Console Tank, SZL
(Superseded to 463010)

$211.99

$

Usually ships in 2-12 days

0

41

Scag 483472

Ignition Switch

$22.99

$

In Stock, only 4 left!

0

42

Scag 462069

Key Fob Assembly

$9.99

$

In Stock, Qty 9

0

42

Scag 483609

Key w/Shroud Only

$2.99

$

In Stock, only 2 left!

0

43

Scag 485216

Hourmeter

$21.99

$

Usually ships in 2-12 days

0

44

Scag 483957

Switch, PTO
(Superseded to 463034)

$46.99

$

In Stock, Qty 20+

0

45

Scag 483434

Throttle Cable

$25.99

$

In Stock, only 3 left!

0

46

Scag 04021-26

Nut, #10-24 Elastic Stop

$0.99

$

In Stock, Qty 9

0

47

Scag 04003-43

Bolt, Carriage #10-24 x 1/2"

$0.99

$

In Stock, Qty 8

0

48

Scag 483435

Choke Control

$26.99

$

In Stock, only 3 left!

0

49

Scag 04001-44

Bolt, Hex Head 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 10

0

50

Scag 04030-02

Lockwasher, 1/4"

$0.99

$

In Stock, Qty 20+

0

51

Scag 04040-14

Flatwasher, 1/4-.312 x .750 x .065

$0.99

$

In Stock, Qty 7

0

52

Scag 462793

Instrument Panel w/Decal

$35.99

$

Usually ships in 2-12 days

0

53

Scag 04024-03

Nut, 5/16 Push-On

$1.49

$

In Stock, Qty 19

0

54

Scag 483642

Double Fuse Assembly

Note: (incl. 45, 56, 57, 58)

$54.99

$

Usually ships in 2-12 days

0

55

Scag 482588

Clip, Wire

$1.99

$

Usually ships in 2-12 days

0

56

Scag 483571

Cover, Double

$1.99

$

Usually ships in 2-12 days

0

57

Scag 48298

Fuse, 20 Amp

$3.99

$

Usually ships in 2-12 days

0

58

Scag 483629

Fuse Holder

$7.49

$

In Stock, Qty 10

0

59

Scag 04031-03

Lockwasher, 5/16" Ext.

$0.99

$

Usually ships in 2-12 days

0

60

Scag 04128-01

Screw, M6-1.00 X 16 Shakeproof

$0.99

$

Usually ships in 2-12 days

0
