SZT 150 (2691357-01) - Simplicity Courier 46"/117cm Zero-Turn Mower, 656cc Briggs & Stratton Wheel & Tire Group (2991857) Parts Diagram
Courier 46"/117cm Zero-Turn Mower, 656cc Briggs & Stratton

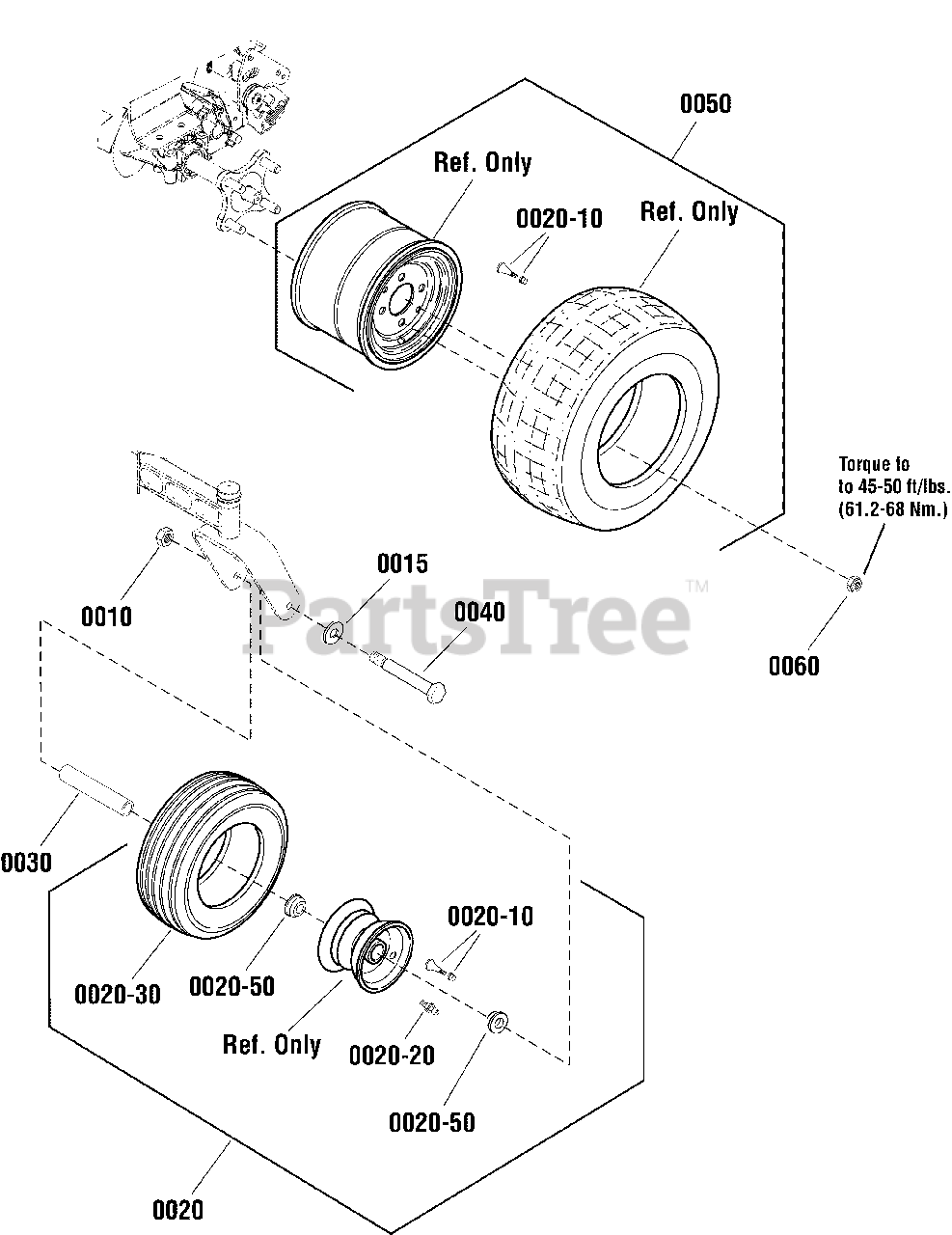

Wheel & Tire Group (2991857) Parts Diagram
Simplicity 7090839SM
NUT, Hex Center Lock, 7/16-14, GR 5 or B
$4.99
$
In Stock, Qty 10
Simplicity 703183
WASHER, 7/16
$3.99
$
In Stock, only 1 left!
Simplicity 1734013SM
ASSEMBLY, Wheel & Tire, Front Caster, 11 X 4-5
Note: (Includes Ref. Nos. 0020-10, 0020-20, 0020-30 & 0020-50)
$110.99
$
In Stock, Qty 10
$
$
Not available
Simplicity 7104428YP
ZERK, Grease
$5.49
$
In Stock, only 1 left!
Simplicity 1734875SM
TIRE, 11 X 4-5
$76.99
$
Usually ships in 2-12 days
$12.99
$
In Stock, Qty 9
Simplicity 1734841SM
TUBE, Caster Wheel
$12.99
$
In Stock, only 4 left!
Simplicity 7091772SM
SCREW, 7/16-14 x 6 Hex Head Cap, GR 5
$8.49
$
In Stock, Qty 6
Simplicity 1758998YP
ASSEMBLY, Wheel & Tire, 18 X 8.5-8 (K505)
$233.99
$
Usually ships in 2-12 days
Simplicity 7027192SM
LUG NUT, 1/2 - 20 Tapered Seat
$2.49
$
Usually ships in 2-12 days
