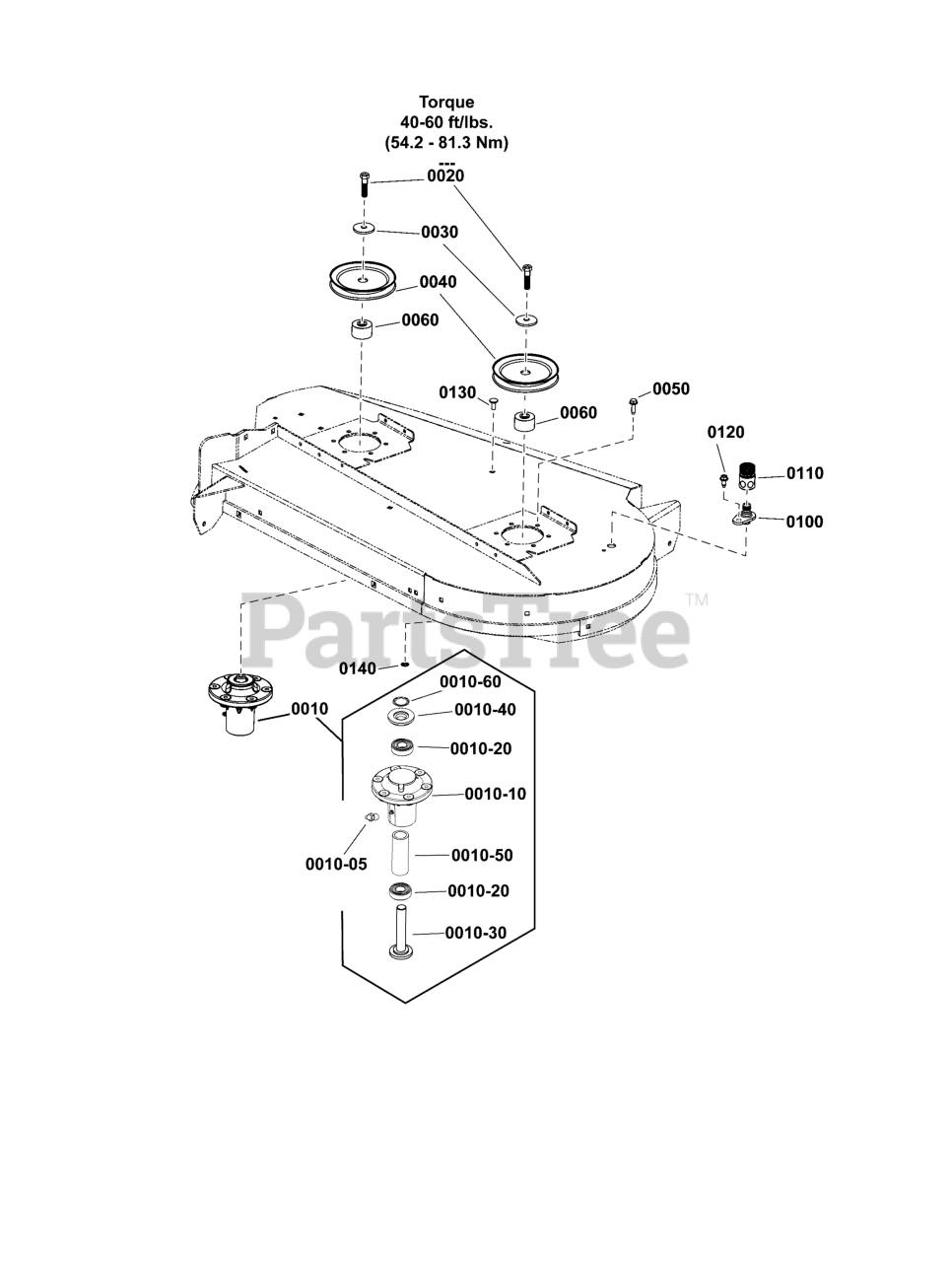

SZT 175 (2691923-00) - Simplicity Courier 107cm Zero-Turn Mower, 7220 series Briggs & Stratton 42" ( 107cm) Mower Deck - Arbor Group Parts Diagram

Courier 107cm Zero-Turn Mower, 7220 series Briggs & Stratton

42" ( 107cm) Mower Deck - Arbor Group Parts Diagram

  • Title

0010

Simplicity 84003173

ARBOR ASSEMBLY

$102.99

$

In Stock, Qty 20+

0

0010-05

Simplicity 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$5.49

$

In Stock, Qty 20+

0

0010-10

Simplicity 84003653

HOUSING, w/Lube Fittting

$86.99

$

Usually ships in 2-12 days

0

0010-20

Simplicity 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0010-30

Simplicity 84003170

SHAFT, Spindle

$31.99

$

In Stock, only 2 left!

0

0010-40

Simplicity 84003166

SHIELD, Arbor

$7.49

$

In Stock, Qty 20+

0

0010-50

Simplicity 84003167

SPACER, Bearing

$6.99

$

In Stock, only 1 left!

0

0010-60

Simplicity 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0020

Simplicity 1921212SM

CAPSCREW, Hex Head, 7/16-14 X 1 1/2

$4.49

$

Usually ships in 2-12 days

0

0030

Simplicity 1656916SM

WASHER, Spring

$7.99

$

In Stock, Qty 20+

0

0040

Simplicity 1737835YP

PULLEY, 4.50

$21.99

$

In Stock, Qty 11

0

0050

Simplicity 704146

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1

$3.99

$

In Stock, Qty 17

0

0060

Simplicity 1737457YP

SPACER, Pulley

$10.99

$

In Stock, only 3 left!

0

0100

Simplicity 1756247YP

ADAPTER, Washout Port

$6.99

$

In Stock, Qty 7

0

0110

Simplicity 1756246YP

CONNECTOR, Washout Port

$16.99

$

In Stock, only 1 left!

0

0120

Simplicity 84007040

SCREW. Hex, Washer, 5/16-18 x 3/4

$

$

Currently unavailable

0130

Simplicity 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0140

Simplicity 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 13

0
