SZT 175 (2691923-00) - Simplicity Courier 107cm Zero-Turn Mower, 7220 series Briggs & Stratton 42" (107cm) Mower Deck - Clutch & Support Group Parts Diagram

Courier 107cm Zero-Turn Mower, 7220 series Briggs & Stratton

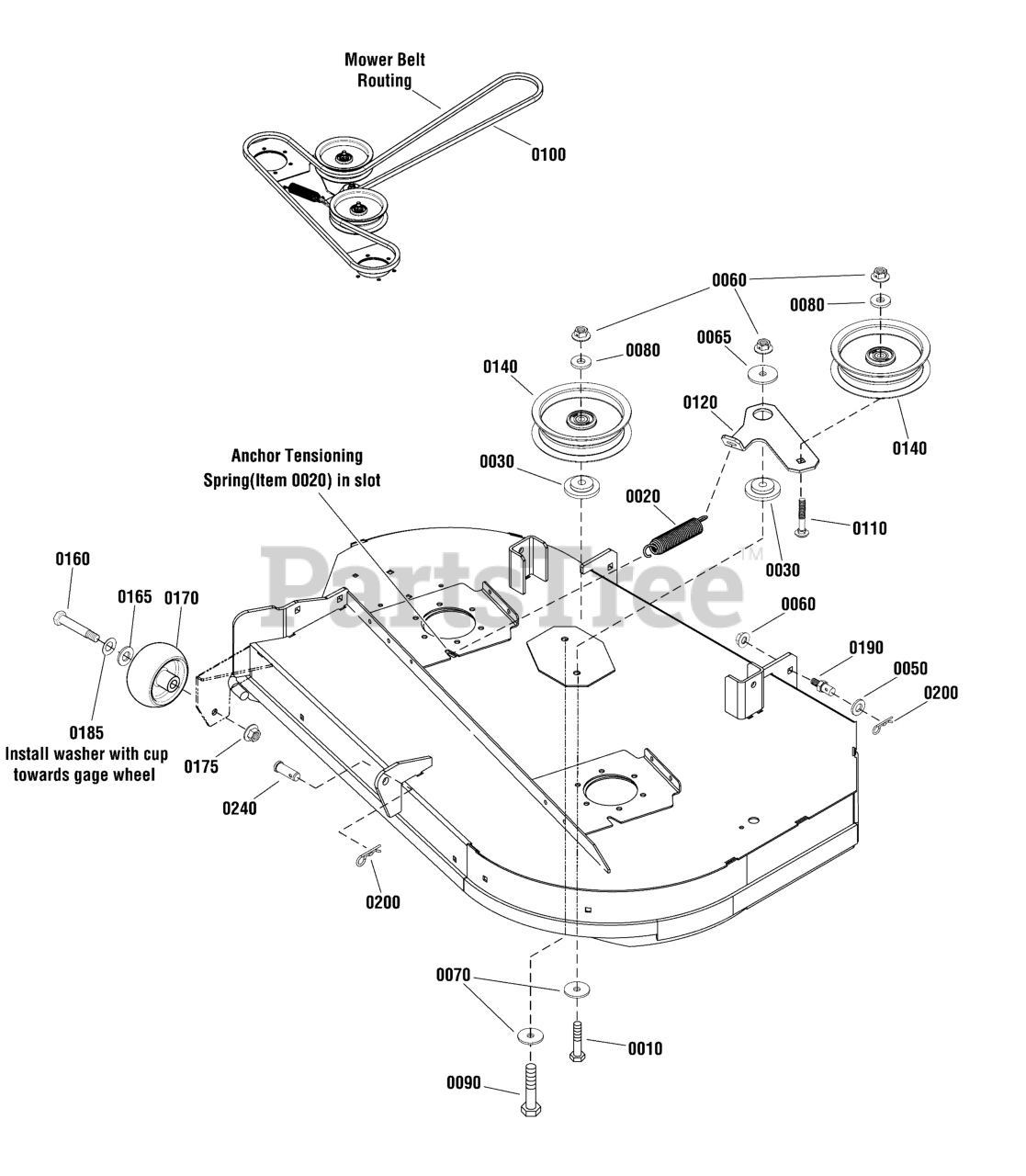

42" (107cm) Mower Deck - Clutch & Support Group Parts Diagram

  • Title

0010

Simplicity 703406

CAPSCREW, 3/8-16 X 1 1/2

$4.99

$

In Stock, Qty 10

0

0020

Simplicity 1715772SM

SPRING, Extension

$14.99

$

In Stock, Qty 7

0

0030

Simplicity 706128

SPACER, Idler

$7.49

$

In Stock, Qty 11

0

0050

Simplicity 703853

WASHER, 1/2

$5.49

$

In Stock, Qty 20+

0

0060

Simplicity 703158

NUT, Hex Flange, 3/8-16
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0065

Simplicity 5025305SM

WASHER, Flat

$4.49

$

In Stock, Qty 5

0

0070

Simplicity 703591

WASHER, Flat, 13/32 x 1 1/2 x 1/8

$5.49

$

In Stock, Qty 20+

0

0080

Simplicity 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0090

Simplicity 703133

CAPSCREW, Hex Head, 3/8-16 X 2 3/4, GR5
(Superseded to 5025013X22SM)

$4.49

$

In Stock, Qty 20+

0

0100

Simplicity 1758101YP

BELT, 42" Mower

$64.99

$

In Stock, Qty 9

0

0110

Simplicity 7900009SM

BOLT, Carriage, 3/8-16 X 2 1/4

$3.99

$

In Stock, Qty 11

0

0120

Simplicity 1758789AYP

ARM, Idler

$29.99

$

In Stock, only 1 left!

0

0140

Simplicity 7034422SM

PULLEY, Idler

$40.99

$

In Stock, Qty 10

0

0160

Simplicity 2108765SM

BOLT, Wheel, 3/8-16 X 2.781

$6.49

$

In Stock, Qty 15

0

0165

Simplicity 703853

WASHER, 1/2

$5.49

$

In Stock, Qty 20+

0

0170

Simplicity 1714760SM

GAUGE WHEEL

$6.99

$

In Stock, Qty 20+

0

0175

Simplicity 703158

NUT, Flange, 3/8-16
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0185

Simplicity 0020X3MA

WASHER, Spring

$4.49

$

In Stock, Qty 6

0

0190

Simplicity 704054

PIN, Shoulder, 3/8-16 X 0.680

$7.49

$

Usually ships in 2-12 days

0

0200

Simplicity 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0240

Simplicity 5025479YP

PIN, Clevis, 1/2 X 1 23/64

$3.99

$

In Stock, Qty 14

0
