SZT 18426 BVE (85681) - Snapper 42" Zero-Turn Mower, 18hp CLUTCH ASSEMBLY Parts Diagram

42" Zero-Turn Mower, 18hp

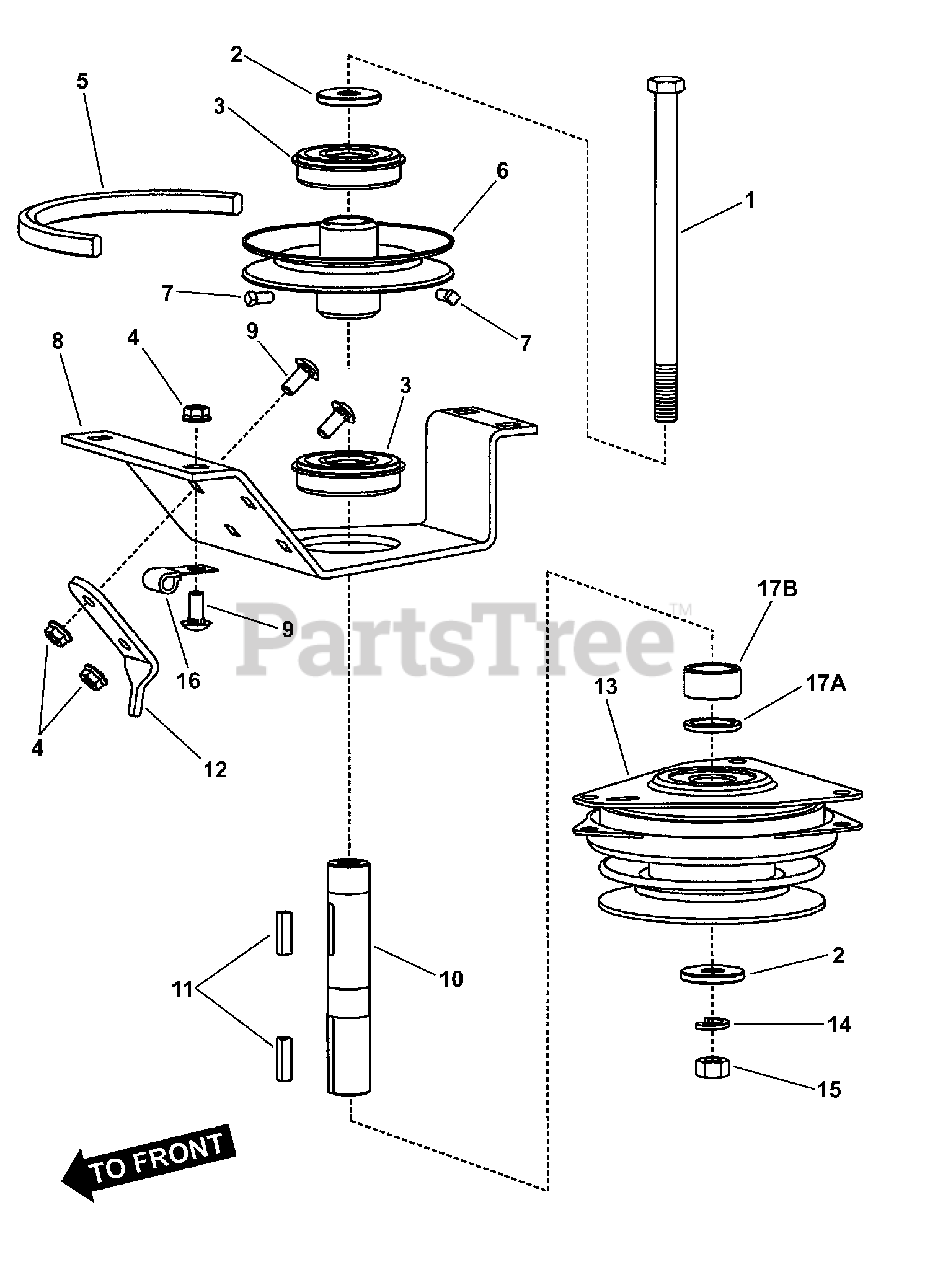

CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Snapper 7091735

BOLT, 7/16-20 x 8" Hex Head, GR 5

$

$

Not available

2

Snapper 7029138

WASHER, .468 I.D. x 1.50 O.D. x .188 Flat
(Superseded to 704053)

$9.99

$

In Stock, only 2 left!

0

3

Snapper 7029136

BEARING, 6305 w/Snap Ring
(Superseded to 7029136YP)

$

$

Not available

4

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR5
(Superseded to 703409)

Note: Was 91070

$5.99

$

In Stock, Qty 20+

0

5

Snapper 7029117

V-BELT, 5L Sect. Cog, 50.170" effective length
(Superseded to 7029117YP)

Note: used on 42" Deck models; Primary Drive (Dayco #46-0364)

$55.99

$

In Stock, only 2 left!

0

Snapper 7046997

V-BELT, 5L Sect. Cog, 49.44" effective length
(Superseded to 7046997YP)

Note: used on 48" Deck models; Primary Drive

$50.99

$

In Stock, only 3 left!

0

6

Snapper 7029107

PULLEY, Jackshaft
(Superseded to 7029107YP)

Note: used in SZT18426BVE

$76.99

$

Usually ships in 2-12 days

0

Snapper 7046892

PULLEY, Jackshaft
(Superseded to 7046892YP)

Note: used in SZT20486BVE

$71.99

$

Usually ships in 2-12 days

0

7

Snapper 7091829

SCREW, 1/4-20 x 1/2" Set w/Patch
(Superseded to 703139)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7063269

SUPPORT, Jackshaft- TG 2000
(Superseded to 7063269YP)

$68.99

$

Usually ships in 2-12 days

0

9

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

10

Snapper 7029135

JACKSHAFT, 5.525" long
(Superseded to 7029135YP)

$70.99

$

Usually ships in 2-12 days

0

11

Snapper 7013250

KEY 1/4" Square x 1"
(Superseded to 5050407X8SM)

$4.49

$

In Stock, only 2 left!

0

12

Snapper 7063248

BRACKET, Anti-Rotation- TG-2000
(Superseded to 7063248YP)

$

$

Not available

13

Snapper 7063246

CLUTCH, Warner TG-2000 (12V)
(Superseded to 7063246YP)

$523.99

$

Usually ships in 2-12 days

0

14

Snapper 7091301

WASHER, 7/16" Split Lock
(Superseded to 704007)

$4.49

$

In Stock, only 3 left!

0

15

Snapper 7090460

NUT, 7/16-20 Hex, GR 5 or B
(Superseded to 7090460SM)

$2.49

$

Usually ships in 2-12 days

0

16

Snapper 7012652

WIRE CLIP 7/16", Vinyl Covered
(Superseded to 7012652YP)

$3.99

$

Usually ships in 2-12 days

0

17A

Snapper 7029137

SPACER, Jackshaft
(Superseded to 7029137YP)

Note: used in SZT18426BVE

$5.49

$

In Stock, only 3 left!

0

17B

Snapper 7063247

SPACER, Jackshaft, Warner Clutch

Note: used in SZT20486BVE

$

$

Not available
