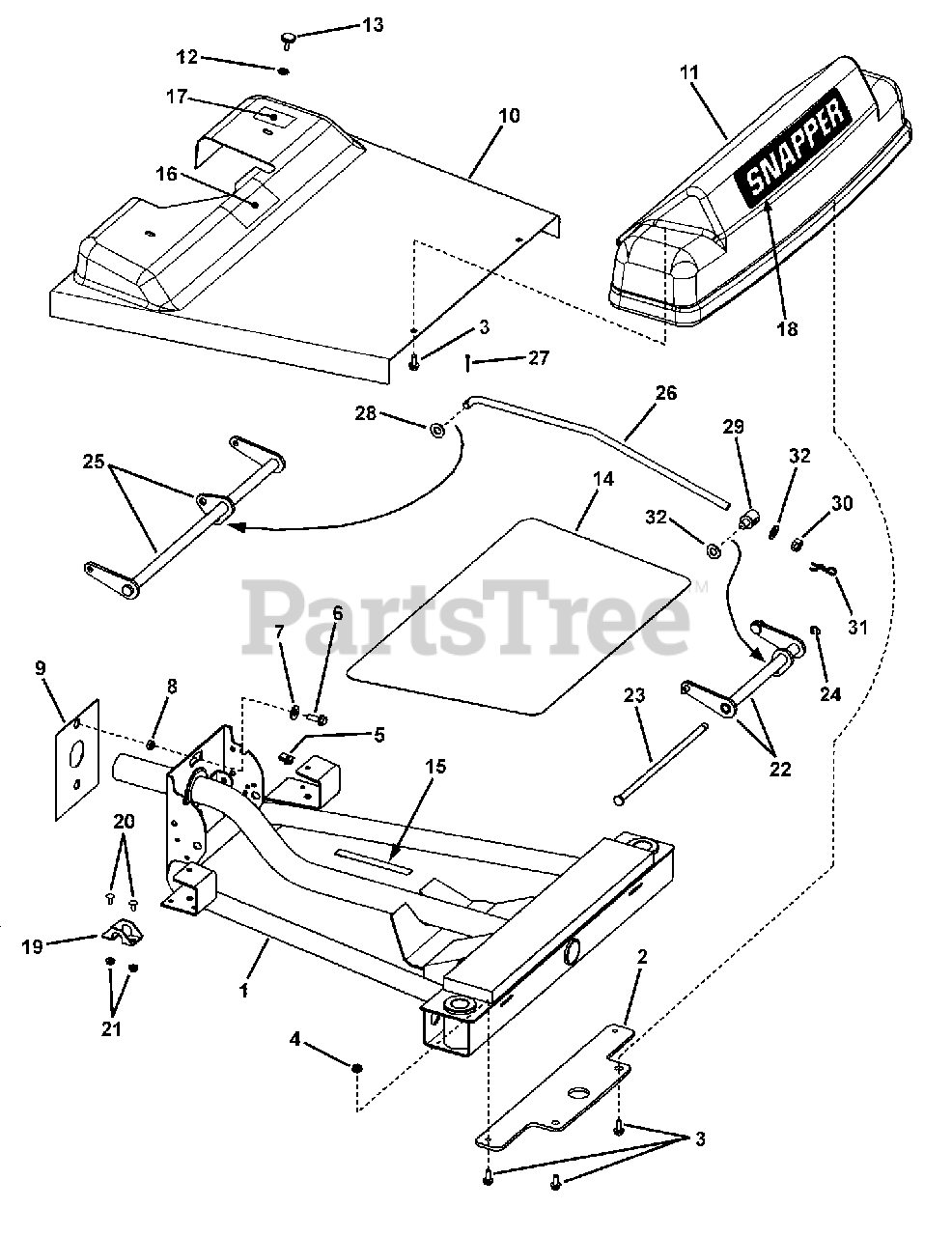

48" FRONT FRAME & COVER ASSEMBLY Parts Diagram

  • Title

1

Snapper 7059380

WELDMENT, Front Frame Series #3
(Superseded to 7059380YP)

$965.99

$

Usually ships in 2-12 days

0

2

Snapper 7075910

PLATE, Footrest Support

$

$

Not available

3

Snapper 7090595

BOLT, 5/16-18 x 3/4" Hex Flange Lock
(Superseded to 703354)

$5.49

$

In Stock, Qty 13

0

4

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

Note: Was 91070

$5.99

$

In Stock, Qty 20+

0

5

Snapper 7028260

FASTENER, "U" Type
(Superseded to 7028260YP)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper 7090324

SCREW, 3/8-16 x 1" Hex Washer Self-tap
(Superseded to 704000)

$5.49

$

In Stock, Qty 13

0

7

Snapper 7090517

WASHER, 3/8" FLAT (wide)
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

8

Snapper 7035375

SPACER, Front Frame Pivot

$

$

Not available

9

Snapper 7035374

PLATE, Front Frame Slip

$

$

Not available

10

Snapper 7075841

FLOOR PAN, HOZ

$

$

Not available

11

Snapper 7075219

FOOTREST, HOZ
(Superseded to 7075219YP)

$277.99

$

Usually ships in 2-12 days

0

12

Snapper 7091890

WASHER, 1/4" Internal/External Lock
(Superseded to 7091890SM)

$4.49

$

Usually ships in 2-12 days

0

13

Snapper 7023341

KNOB (1/4-20 thread)

$8.49

$

In Stock, only 2 left!

0

14

Snapper 7075885

MAT, Floor
(Superseded to 7075885YP)

$26.99

$

In Stock, only 1 left!

0

15

Snapper 7041818

PAD, Floor Board Support
(Superseded to 7041818YP)

$11.99

$

In Stock, only 1 left!

0

16

Snapper 7075993

DECAL, Warning, Read Manuals & Instructions

$

$

Not available

17

Snapper 7046426

DECAL, Deck Height

Note: see decal page

$

$

Not available

18

Snapper 7071916

DECAL, SNAPPER (14.56" long)
(Superseded to 1750913YP)

$12.99

$

In Stock, Qty 6

0

19

Snapper 7047099

BRACKET, Saddle- Front

$

$

Not available

20

Snapper 7091573

BOLT, 1/4-20 x 5/8" Short Neck Carriage, GR 5
(Superseded to 7091573YP)

Note: Was 90551

$4.49

$

In Stock, only 1 left!

0

21

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 6

0

22

Snapper 7059240

WELDMENT, Front Lift, 48

$

$

Not available

23

Snapper 7022717

ROD, Deck Support
(Superseded to 7022717YP)

$48.99

$

Usually ships in 2-12 days

0

24

Snapper 7017847

RING, .438 External Retaining
(Superseded to 7017847YP)

$4.49

$

In Stock, only 2 left!

0

25

Snapper 7047060

WELDMENT, Rear Lift
(Superseded to 7047060YP)

$106.99

$

Usually ships in 2-12 days

0

26

Snapper 7074256

TIMING ROD (1/2-13 thread)
(Superseded to 7074256YP)

$24.99

$

Usually ships in 2-12 days

0

27

Snapper 7091598

COTTER PIN, 1/8 x 1"
(Superseded to 703958)

Note: Was 90041

$4.49

$

In Stock, Qty 14

0

28

Snapper 7090667

WASHER, 1/2" Flat
(Superseded to 7090667YP)

$3.49

$

Usually ships in 2-12 days

0

29

Snapper 7046599

SWIVEL, .50 Thru Hole
(Superseded to 7046599YP)

$25.99

$

Usually ships in 2-12 days

0

30

Snapper 7091894

NUT, 1/2-13 Hex Center Lock, GR 5
(Superseded to 703894)

$3.49

$

In Stock, Qty 6

0

31

Snapper 7091947

HAIR PIN, 1/8" Dia. x 1/2"
(Superseded to 7091947YP)

$2.99

$

Usually ships in 2-12 days

0

32

Snapper 7090250

WASHER, 1/2" SAE Flat
(Superseded to 704123)

$4.49

$

In Stock, Qty 18

0
