SZT 20486 BVE (85682) - Snapper 48" Zero-Turn Mower, 20hp 48" MOWER DECK ASSEMBLY (Part 2) Parts Diagram

48" Zero-Turn Mower, 20hp

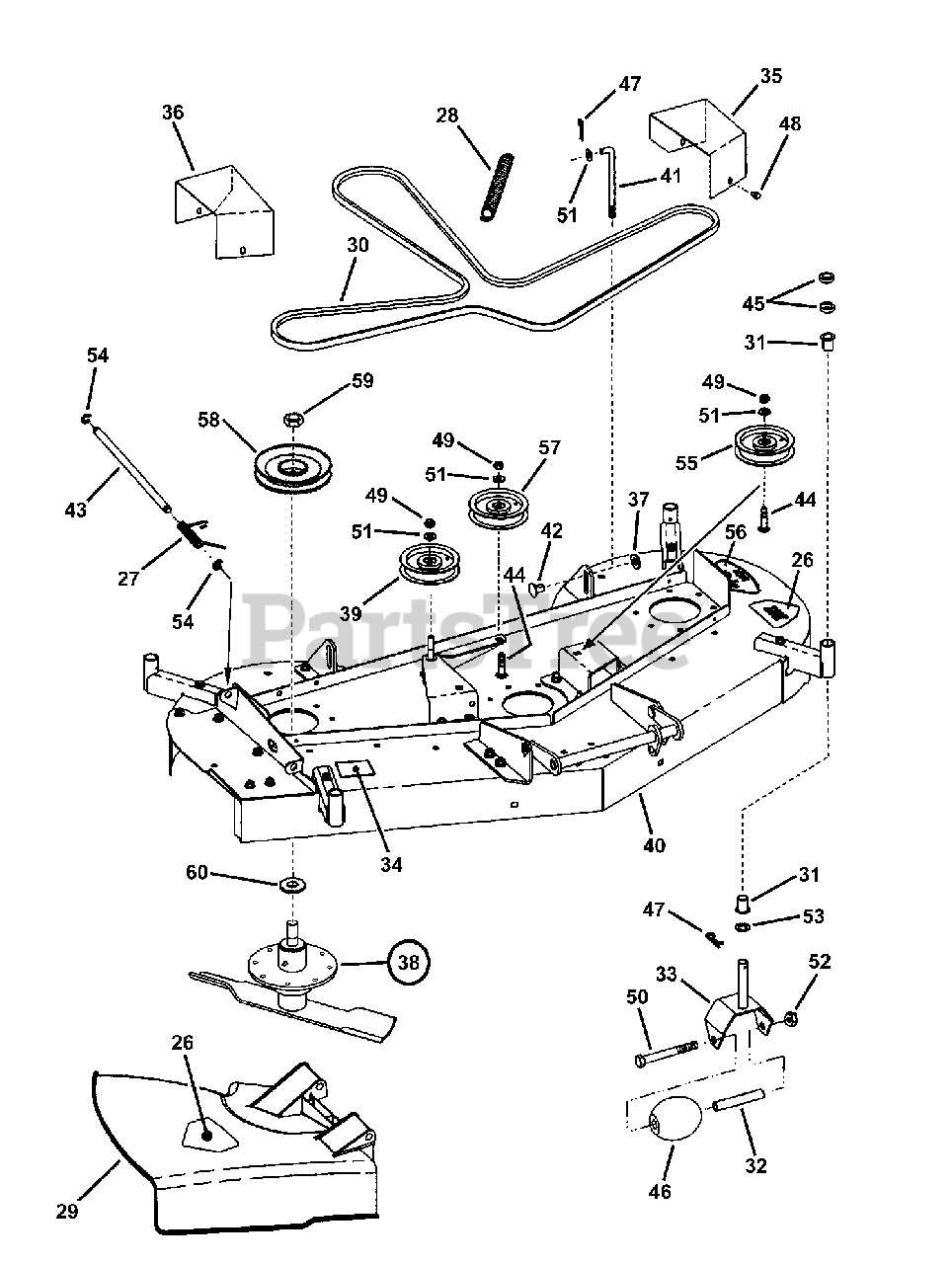

48" MOWER DECK ASSEMBLY (Part 2) Parts Diagram

  • Title

26

Snapper 7013010

DECAL, Danger, Cut Finger
(Superseded to 7013010SM)

Note: see decal page

$9.49

$

In Stock, Qty 20+

0

27

Snapper 7035813

SPRING, Torsion
(Superseded to 7035813SM)

$24.99

$

In Stock, only 3 left!

0

28

Snapper 7058508

SPRING, Extension, 48" HOZ
(Superseded to 7058508YP)

$50.99

$

In Stock, only 2 left!

0

29

Snapper 7029425

DISCHARGE CHUTE, Hi Impact Co-Polymer
(Superseded to 7104733YP)

$87.99

$

Usually ships in 2-12 days

0

30

Snapper 7075092

V-BELT, HA Sect., 120.722" effective length
(Superseded to 7075092YP)

$92.99

$

Usually ships in 2-12 days

0

31

Snapper 7043858

BUSHING, Flange, .64 x .75 x .5
(Superseded to 7043858YP)

$4.49

$

In Stock, Qty 20+

0

32

Snapper 7046301

SLEEVE, Caster Wheel
(Superseded to 7046301YP)

$14.99

$

In Stock, Qty 5

0

33

Snapper 7046302

WELDMENT, Pivot Yoke, Caster
(Superseded to 7046302YP)

$75.99

$

Usually ships in 2-12 days

0

34

Snapper 7046720

DECAL, Chute/Deflector
(Superseded to 7046720SM)

Note: see decal page

$7.49

$

Usually ships in 2-12 days

0

35

Snapper 7047093

COVER, Belt, LH
(Superseded to 7047093YP)

$19.99

$

Usually ships in 2-12 days

0

36

Snapper 7047094

COVER, Belt, RH
(Superseded to 7047094YP)

$13.99

$

Usually ships in 2-12 days

0

37

Snapper 7090667

WASHER, 1/2" Flat
(Superseded to 7090667YP)

$3.49

$

Usually ships in 2-12 days

0

38

Snapper 7058524

ASSEMBLY, 48" Spindle

$

$

Not available

39

Snapper 7072319

PULLEY, 3-1/4 Dia. Flat Idler
(Superseded to 7072319SM)

Note: New Hampshire p/n FH-5220-14

$74.99

$

In Stock, only 1 left!

0

40

*ASSEMBLY, 48" Painted Mower Deck

Note: see previous two pages

$

$

Not available

41

Snapper 7058086

LINK, Leveling (3/8-16 thread)
(Superseded to 7058086YP)

$11.99

$

Usually ships in 2-12 days

0

42

Snapper 7058087

SWIVEL, Support (3/8-16 internal thread)

$

$

Not available

43

Snapper 7072044

HINGE PIN
(Superseded to 7072044YP)

$29.99

$

In Stock, only 1 left!

0

44

Snapper 7091810

BOLT, 3/8-16 x 1-3/4" Short Neck Carriage, GR 5
(Superseded to 703879)

Note: Was 91158

$3.99

$

In Stock, Qty 13

0

45

Snapper 7076436

SPACER, Blade
(Superseded to 7076436YP)

$7.49

$

In Stock, only 4 left!

0

46

Snapper 7073142

ROLLER, Low Density Polyethylene
(Superseded to 7073142YP)

Note: Was 79226

$16.99

$

In Stock, Qty 11

0

47

Snapper 7091503

HAIR PIN, 3/32 x 1-1/2"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

48

Snapper 7091084

SCREW, 1/4-20 x 3/8" Hex Washer Self Tap
(Superseded to 703583)

Note: Was 90302

$4.99

$

Usually ships in 2-12 days

0

49

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, Qty 17

0

50

Snapper 7090993

SCREW, 1/2-20 x 4-1/2" Hex Head Cap, GR 5
(Superseded to 7090993YP)

$5.49

$

In Stock, only 1 left!

0

51

Snapper 7090122

WASHER, 3/8" SAE Flat
(Superseded to 703878)

Note: replaces 91514, 91296

$3.99

$

In Stock, Qty 20+

0

52

Snapper 7090266

NUT, 1/2-20 Hex Center Lock, GR 5 or B
(Superseded to 7090266YP)

$4.49

$

Usually ships in 2-12 days

0

53

Snapper 7091628

WASHER, .64 x .99 x .05 Flat
(Superseded to 7091628SM)

$4.49

$

In Stock, Qty 5

0

54

Snapper 7014341

RING, .392 External Retaining
(Superseded to 703976)

Note: Waldes #5133-50

$4.49

$

In Stock, Qty 20+

0

55

Snapper 7018574

IDLER, 4.12" Outside Diameter, Flat
(Superseded to 7018574SM)

$38.99

$

In Stock, Qty 7

0

56

Snapper 7024431

DECAL, 48" Deck
(Superseded to 7024431YP)

Note: see decal page

$11.99

$

Usually ships in 2-12 days

0

57

Snapper 7034422

PULLEY, 5" x .375 Flat Idler (Belt Clutch)
(Superseded to 7034422SM)

$38.99

$

In Stock, Qty 13

0

58

Snapper 7044813

PULLEY, Driven, 4.50" O.D.
(Superseded to 7044813YP)

$53.99

$

Usually ships in 2-12 days

0

59

Snapper 7074467

NUT, 3/4-16 Hex Jam, GR 8
(Superseded to 7074467SM)

$4.49

$

In Stock, Qty 11

0

60

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

Note: also shown on 48" SPINDLE ASSEMBLY page

$7.49

$

In Stock, Qty 20+

0
