SZT 20486 BVE (85682) - Snapper 48" Zero-Turn Mower, 20hp 48" SPINDLE ASSEMBLY Parts Diagram

48" Zero-Turn Mower, 20hp

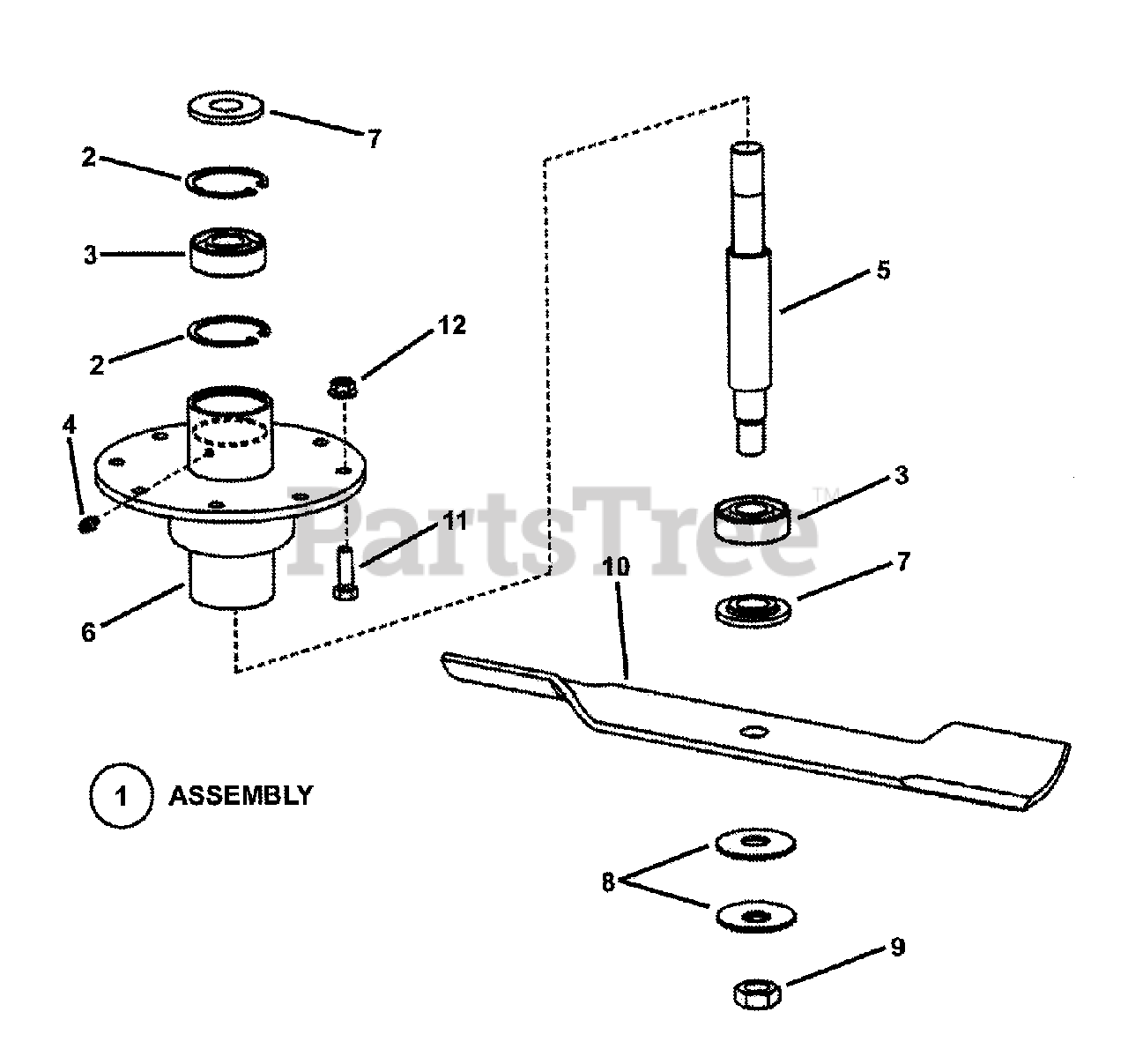

48" SPINDLE ASSEMBLY Parts Diagram

  • Title

1

Snapper 7058524

ASSEMBLY, 48" Spindle

Note: includes items 2 thru 10

$

$

Not available

2

Snapper 7012491

RING, 1-3/4" External Retaining Ring
(Superseded to 7012491SM)

Note: Truarc part no. N-5000-175

$4.49

$

In Stock, Qty 20+

0

3

Snapper 7013313

BALL BEARING, 3/4" I.D.
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

4

Snapper 7010817

FITTING, Lube, Press-In (for .187 dia. Hole)
(Superseded to 7010817SM)

$4.49

$

In Stock, only 2 left!

0

5

Snapper 7073405

SHAFT, Spindle (7.81" long)
(Superseded to 7073405YP)

$56.99

$

In Stock, only 1 left!

0

6

Snapper 7044798

WELDMENT, 48" Spindle
(Superseded to 7044798YP)

$122.99

$

Usually ships in 2-12 days

0

7

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 20+

0

8

Snapper 7016440

WASHER, .656 Belleville
(Superseded to 7016440SM)

$7.99

$

In Stock, Qty 15

0

9

Snapper 7090658

NUT, 5/8-18 Hex Jam
(Superseded to 703904)

$4.99

$

In Stock, Qty 11

0

10

Snapper 7075588

BLADE, 16-1/2" Low Inertia

$

$

Not available

11

Snapper 7027168

SCREW, 5/16-18 x 1" Hex Head Cap, GR 5
(Superseded to 703585)

Note: Was 90636 (not part of 58524 assembly)

$4.99

$

Usually ships in 2-12 days

0

12

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

Note: Was 91070 (not part of 58524 assembly)

$5.49

$

In Stock, Qty 20+

0
