SZT 275 (2691695-00) - Simplicity Courier 122cm Zero-Turn Mower, 8270 series Briggs & Stratton 48" Mower Deck - Housing & Arbor Group Parts Diagram

Courier 122cm Zero-Turn Mower, 8270 series Briggs & Stratton

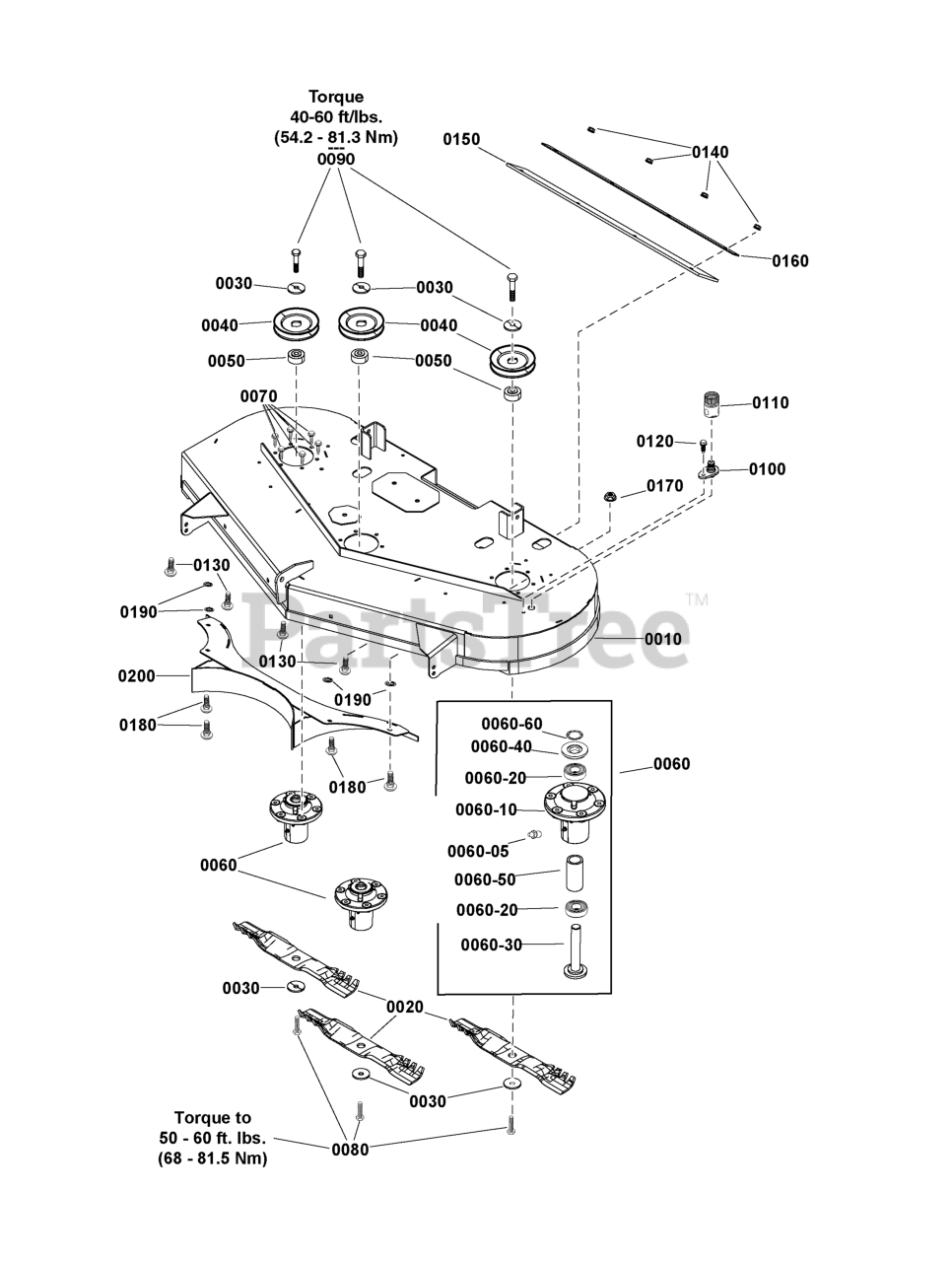

48" Mower Deck - Housing & Arbor Group Parts Diagram

  • Title

0010

Simplicity 1687945YP

KIT, Mower Deck w/Decals, 48" FAB RD ZT - Orange

$3454.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1760647YP

BLADE, Mulching

$30.99

$

In Stock, only 2 left!

0

0030

Simplicity 1656916SM

WASHER, Spring

$7.99

$

In Stock, Qty 20+

0

0040

Simplicity 1732951SM

PULLEY, .68" Deep-Groove OD 4.6"

$20.99

$

In Stock, Qty 20+

0

0050

Simplicity 706362

SPACER, Pulley

$10.99

$

In Stock, only 1 left!

0

0060

Simplicity 84003173

ARBOR ASSEMBLY

$102.99

$

In Stock, Qty 6

0

0060-05

Simplicity 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$5.49

$

In Stock, Qty 20+

0

0060-10

Simplicity 84003653

HOUSING, w/Lube Fittting

$86.99

$

Usually ships in 2-12 days

0

0060-20

Simplicity 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0060-30

Simplicity 84003170

SHAFT, Spindle

$31.99

$

In Stock, only 1 left!

0

0060-40

Simplicity 84003166

SHIELD, Arbor

$7.49

$

In Stock, Qty 20+

0

0060-50

Simplicity 84003167

SPACER, Bearing

$6.99

$

Usually ships in 2-12 days

0

0060-60

Simplicity 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0070

Simplicity 704146

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1

$3.99

$

In Stock, only 1 left!

0

0080

Simplicity 1920676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$5.49

$

In Stock, Qty 17

0

0090

Simplicity 1921212SM

CAPSCREW, Hex Head, 7/16-14 X 1 1/2

$4.49

$

Usually ships in 2-12 days

0

0100

Simplicity 1756247YP

ADAPTER, Washout Port

$6.99

$

In Stock, Qty 7

0

0110

Simplicity 1756246YP

CONNECTOR, Washout Port

$16.99

$

In Stock, only 1 left!

0

0120

Simplicity 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0130

Simplicity 703446

BOLT, Carriage, 5/16-18 X 1 1/4, GR5

$4.49

$

In Stock, only 2 left!

0

0140

Simplicity 5025127SM

NUT, Hex Serrated Flange, 5/16-18,

$3.49

$

In Stock, only 3 left!

0

0150

Simplicity 1761251YP

FLAP, Rubber, Rear Discharge

$53.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1761516AYP

STRIP, Discharge Flap, Black

$30.99

$

Usually ships in 2-12 days

0

0170

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0180

Simplicity 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0190

Simplicity 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0200

Simplicity 84002573

BAFFLE, Mulch, Black

$171.99

$

Usually ships in 2-12 days

0
