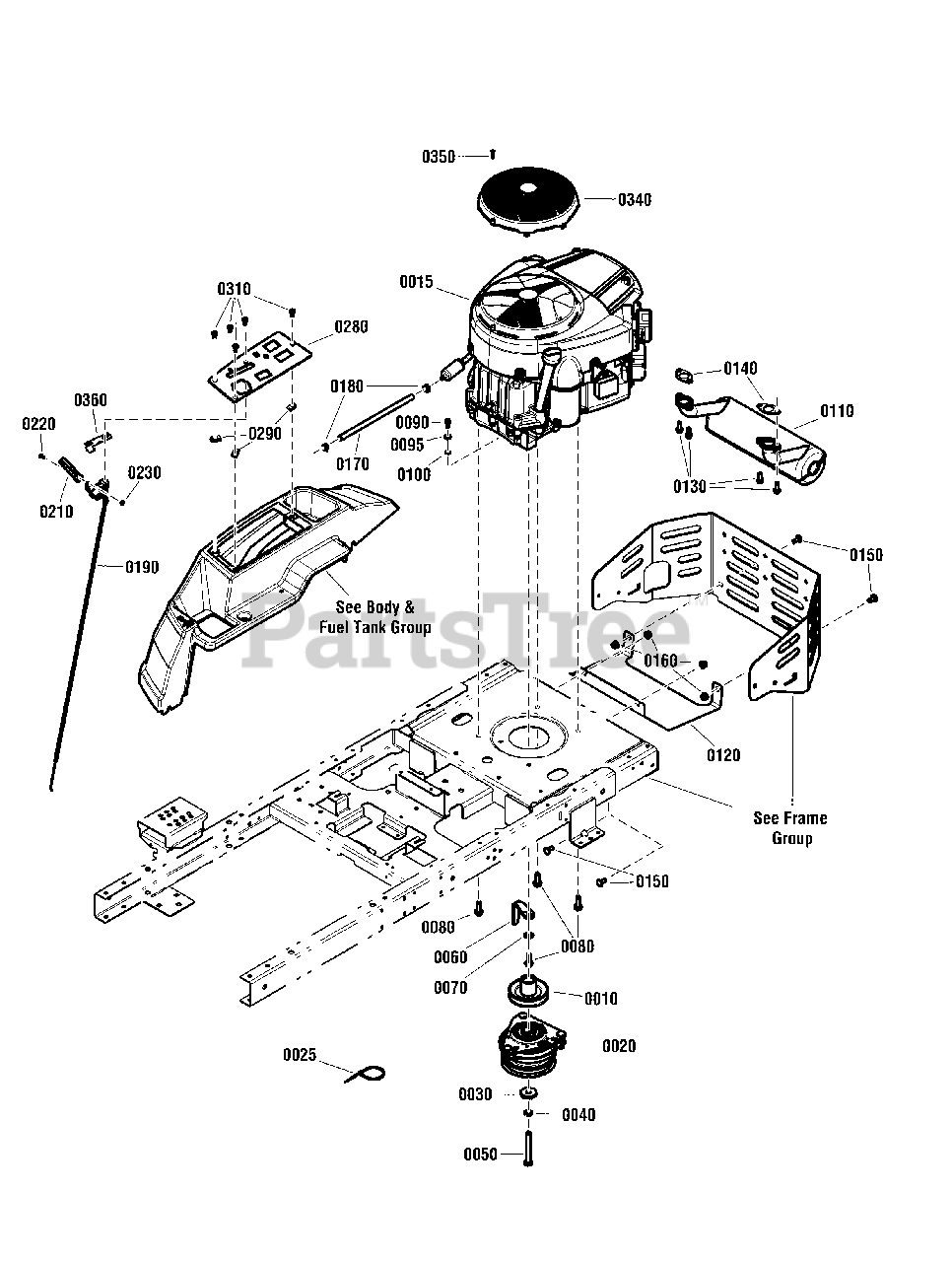

SZT 350 (2691411-00) - Simplicity Courier 52"/132cm Zero-Turn Mower, 724cc Briggs & Stratton Engine Group Parts Diagram

Courier 52"/132cm Zero-Turn Mower, 724cc Briggs & Stratton

Engine Group Parts Diagram

  • Title

0010

Simplicity 1757995YP

PULLEY ASSEMBLY

$39.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1736105SM

CLUTCH, Ogura

$387.99

$

Usually ships in 2-12 days

0

0015

Simplicity 44U877-0003-B1

* ENGINE, 8270 Pro Series Twin, Mod. 44U877-0003-B1

$

$

Currently unavailable

0025

Simplicity 703586

TIE, Cable

$4.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1708264SM

WASHER, Hex

$8.99

$

In Stock, Qty 6

0

0040

Simplicity 704007

WASHER, Lock, 7/16

$4.49

$

In Stock, Qty 6

0

0050

Simplicity 1960649SM

CAPSCREW, Hex Head, 7/16-20 X 3 1/2, G5

$7.49

$

In Stock, only 1 left!

0

0060

Simplicity 1737421AYP

GUIDE, Belt

$12.99

$

In Stock, only 1 left!

0

0070

Simplicity 703878

WASHER, Flat, 13/32

$3.99

$

In Stock, Qty 20+

0

0080

Simplicity 2828635SM

SCREW, Taptite, 3/8-16 X 1 1/4

$4.99

$

In Stock, Qty 20+

0

0090

Simplicity 703054

SCREW, 1/4-20 x 5/8, Hex Washer Head, Thread Roll, Zinc/Clear

$4.49

$

Usually ships in 2-12 days

0

0095

Simplicity 703332

WASHER, 1/4, Flat, GR5 Zinc/Clear

$4.49

$

In Stock, Qty 10

0

0100

Simplicity 1921880SM

WASHER, Lock, 1/4

$3.49

$

Usually ships in 2-12 days

0

0110

Simplicity 1758350YP

MUFFLER

$225.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1759502AYP

SHIELD, Heat

$63.99

$

In Stock, only 1 left!

0

0130

Simplicity 690341

SCREW

$5.99

$

In Stock, only 2 left!

0

0140

Simplicity 690970

Gasket-Exhaust

$4.99

$

In Stock, Qty 20+

0

0150

Simplicity 703185

BOLT, Carriage, 5/16-18 X 3/4, GR5

$3.49

$

In Stock, Qty 20+

0

0160

Simplicity 703115

NUT, 5/16-18, Flange Nylock, GR F, Zinc/Clear

$3.49

$

In Stock, only 4 left!

0

0170

Simplicity 791766

LINE, Fuel

Note: (Low Perm, Cut to 11.25")

$7.99

$

In Stock, Qty 20+

0

0180

Simplicity 5020835SM

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 691038)

$3.99

$

In Stock, only 4 left!

0

0190

Simplicity 1759205YP

CONTROL, Throttle

$43.99

$

In Stock, only 1 left!

0

0210

Simplicity 1739312YP

KNOB, Throttle

$11.99

$

Usually ships in 2-12 days

0

0220

Simplicity 797483

Screw

$4.49

$

Usually ships in 2-12 days

0

0230

Simplicity 703460

Nut

$3.99

$

In Stock, Qty 11

0

0280

Simplicity 1760041AYP

PANEL, Control (Black)

$37.99

$

Usually ships in 2-12 days

0

0290

Simplicity 705876

NUT, Speed, 1/4-20

$4.49

$

In Stock, only 4 left!

0

0310

Simplicity 703953

SCREW, 1/4-20 X 5/8, Torx Pan Head Self-Tapping, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0340

Simplicity 797420YP

Cover, Static

$37.99

$

Usually ships in 2-12 days

0

0350

Simplicity 799359

Screw

$4.49

$

In Stock, Qty 5

0

0360

Simplicity 1760887YP

THROTTLE STOP

$13.99

$

Usually ships in 2-12 days

0
